Gates Corporation Hydraulic Coupling / Adapter Part No: G25225-0810
$16.05
MegaCrimp

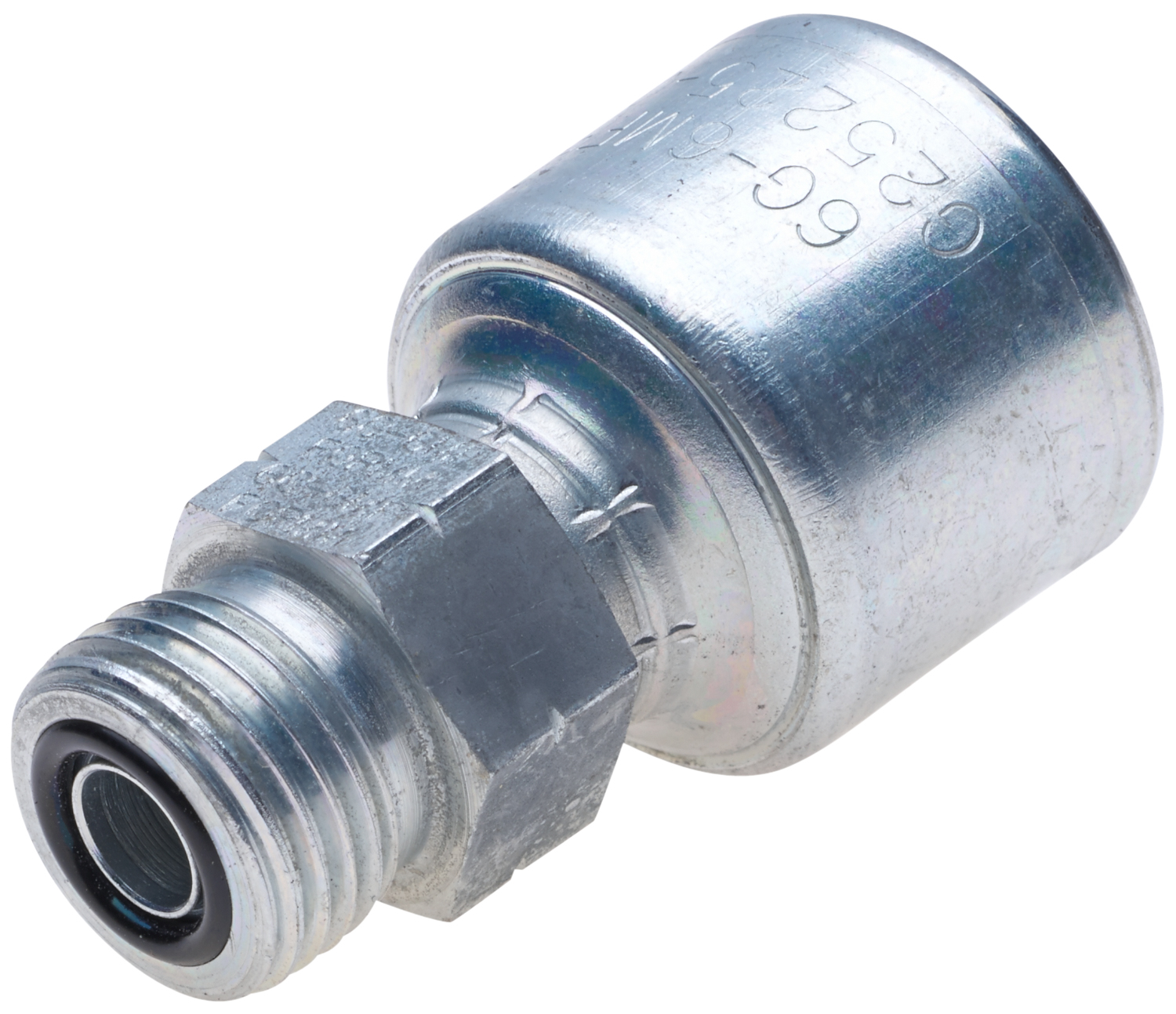

Gates Hydraulic Coupling / Adapter G25225-0810 provides secure and durable connections for hydraulic systems under high-pressure conditions. This hydraulic adapter ensures leak-free performance, reducing system risks and preventing failures. Built for longevity, the hydraulic coupling offers exceptional durability, making it ideal for tough operational environments. With easy installation, this hydraulic adapter integrates seamlessly into your system, ensuring optimal performance and reducing downtime. Whether upgrading or replacing components, this Gates hydraulic coupling delivers reliable operation, enhancing system efficiency. Trust this adapter for consistent, smooth functionality in all your hydraulic setups.
Specifications
The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose. SAE J1453 Captive O-ring Groove for improved O-ring retention.
- Male Flat-Face O-Ring (MegaCrimp)
Gender:Male
Swivel:No
Thread Size:1-14
Seal Type:O-Ring
Inside Diameter:.5

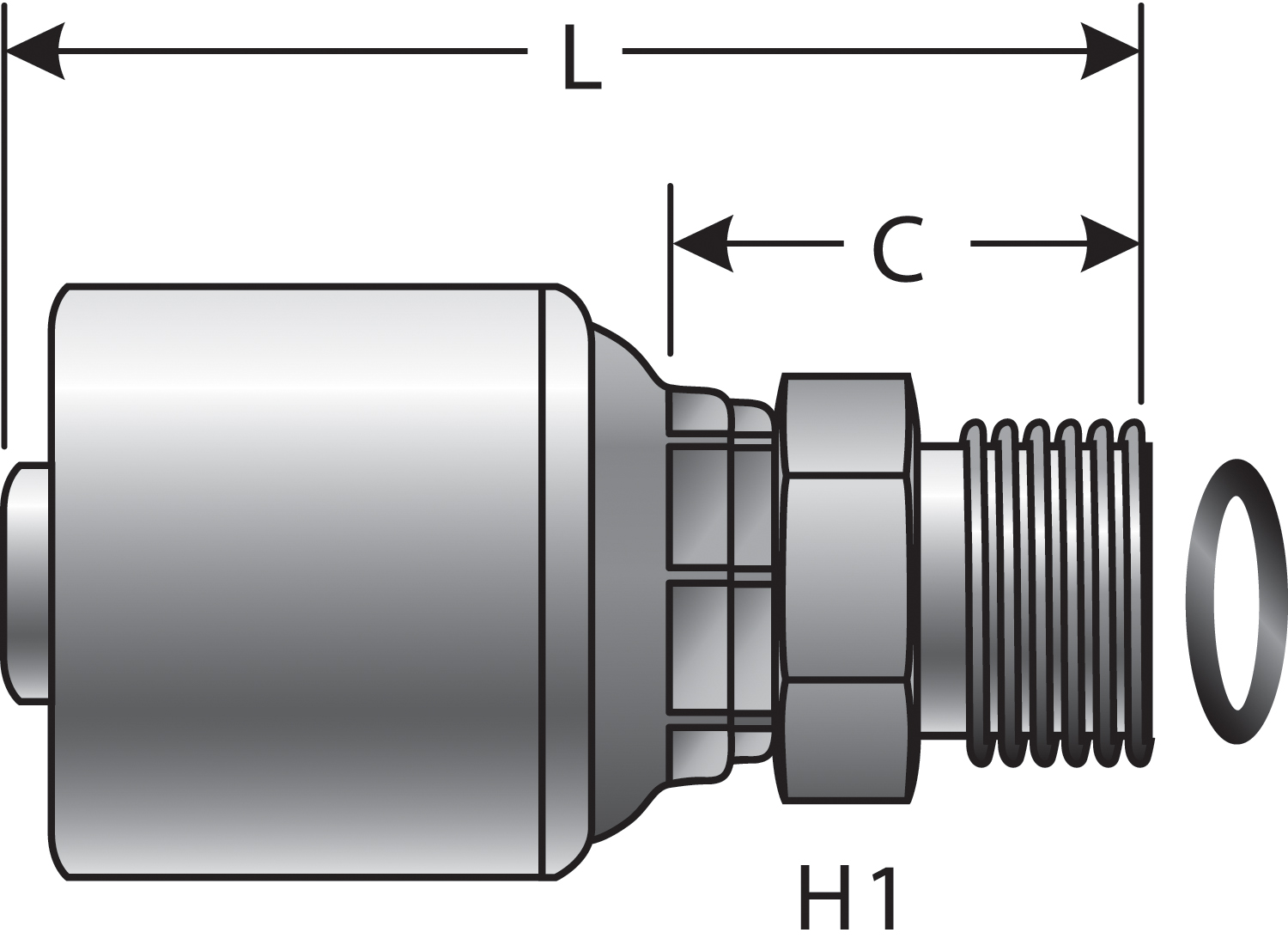

Length:2.87
Swivel:No
Thread Size:1-14
Seal Type:O-Ring
Inside Diameter:.5
Length:2.87
Weight
0.4000
Compatibility
Alternative Part Numbers
- Dayco 108106
- Goodyear 13730-0810
- Goodyear 14730-0810
- Goodyear B2-OFM-0810
- Goodyear UC-OFM-0810
- Kurt Hydraulics 1J0HY-10-8
- Kurt Hydraulics MF-08-10
- NAPA 13730-0810
- NAPA G25225-0810
- Parker 1J043-10-08
- Parker 1J043-10-8
- Parker 1J0HY-10-8
- Weatherhead 08UE70
- Weatherhead 08UEE70
- Weatherhead 08ZE70
