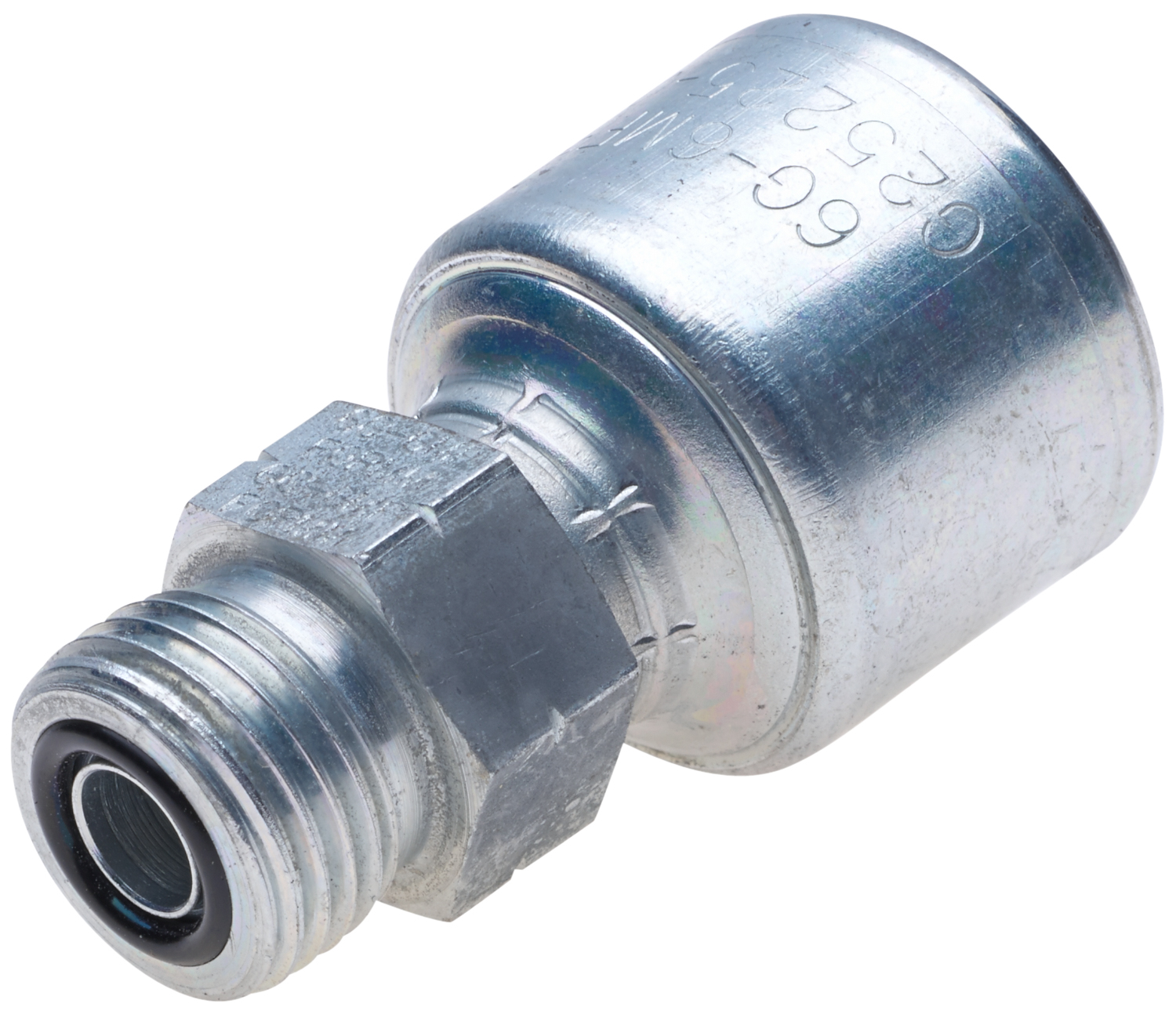

Hydraulic Coupling / Adapter - G25225-0808

Hydraulic Coupling / Adapter

Gates Hydraulic Coupling / Adapter G25225-0808 ensures high-performance and reliable connections in demanding hydraulic systems. Built to withstand extreme pressures, this hydraulic adapter delivers leak-free operation, reducing the risk of failure and maintaining system efficiency. Designed for durability, the hydraulic coupling provides long-lasting service in tough environments, cutting down on maintenance costs. Ideal for use in various industrial and agricultural applications, this hydraulic adapter supports seamless integration, minimizing downtime. Easy to install, it guarantees secure and smooth hydraulic connections, boosting system reliability. Upgrade or replace your existing components with this Gates hydraulic coupling to optimize productivity and performance.

Gates Corporation MegaCrimp Part No: G25225-0808

$14.65

Specifications

The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose. SAE J1453 Captive O-ring Groove for improved O-ring retention.

Male Flat-Face O-Ring (MegaCrimp)

Weight

0.3000

Gender:Male
Swivel:No
Thread Size:13/16-16
Seal Type:O-Ring
Inside Diameter:.5

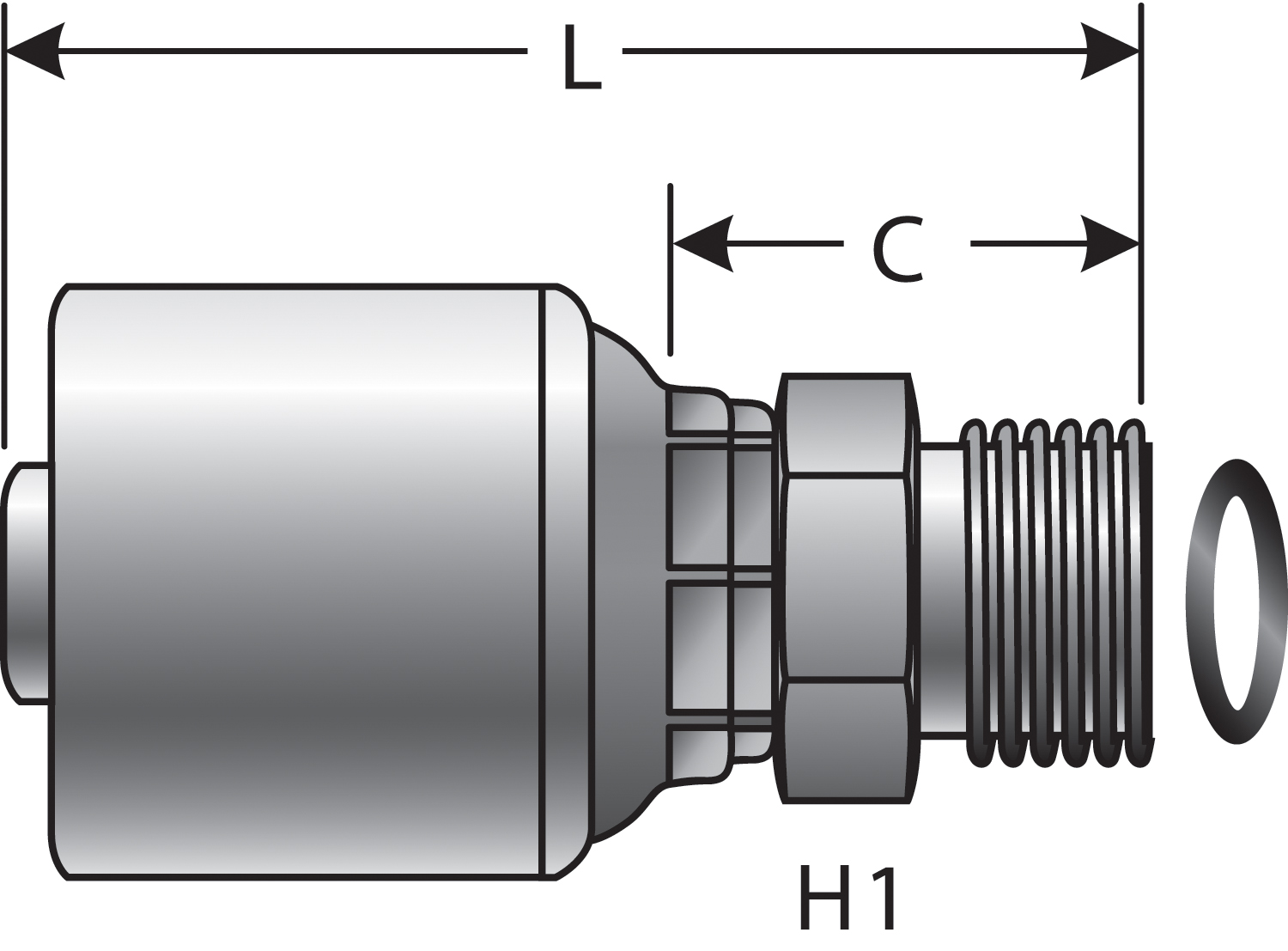

Length:2.69

Compatibility

Alternative Part Numbers

Aeroquip 1AA8MR8
Dayco 108101
Goodyear 08ZE68
Kurt Hydraulics MF-08-08
NAPA G25225-0808
Parker 1J043-08-08
Parker 1J043-8-8
Parker 1J0HY-8-8
Parker 1JM43-08-08
Weatherhead 08UE68
Weatherhead 08UEE68
Weatherhead 08ZE68
Parker 14730-0808
Goodyear 13730-0808
Goodyear 14730-0808
Goodyear B2-OFM-0808
Goodyear UC-OFM-0808
