Specifications

The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose. SAE J1453 Captive O-ring Groove for improved O-ring retention.

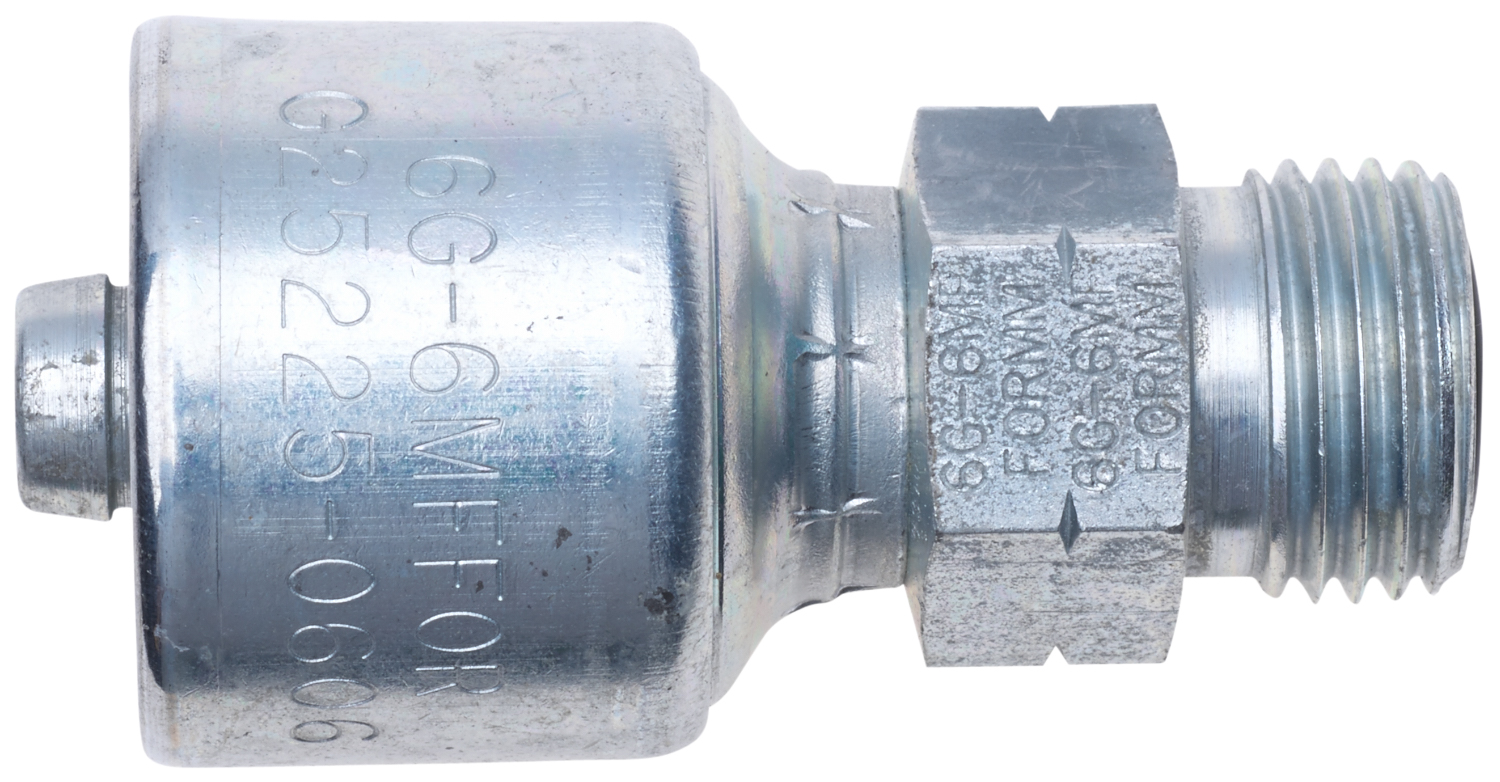

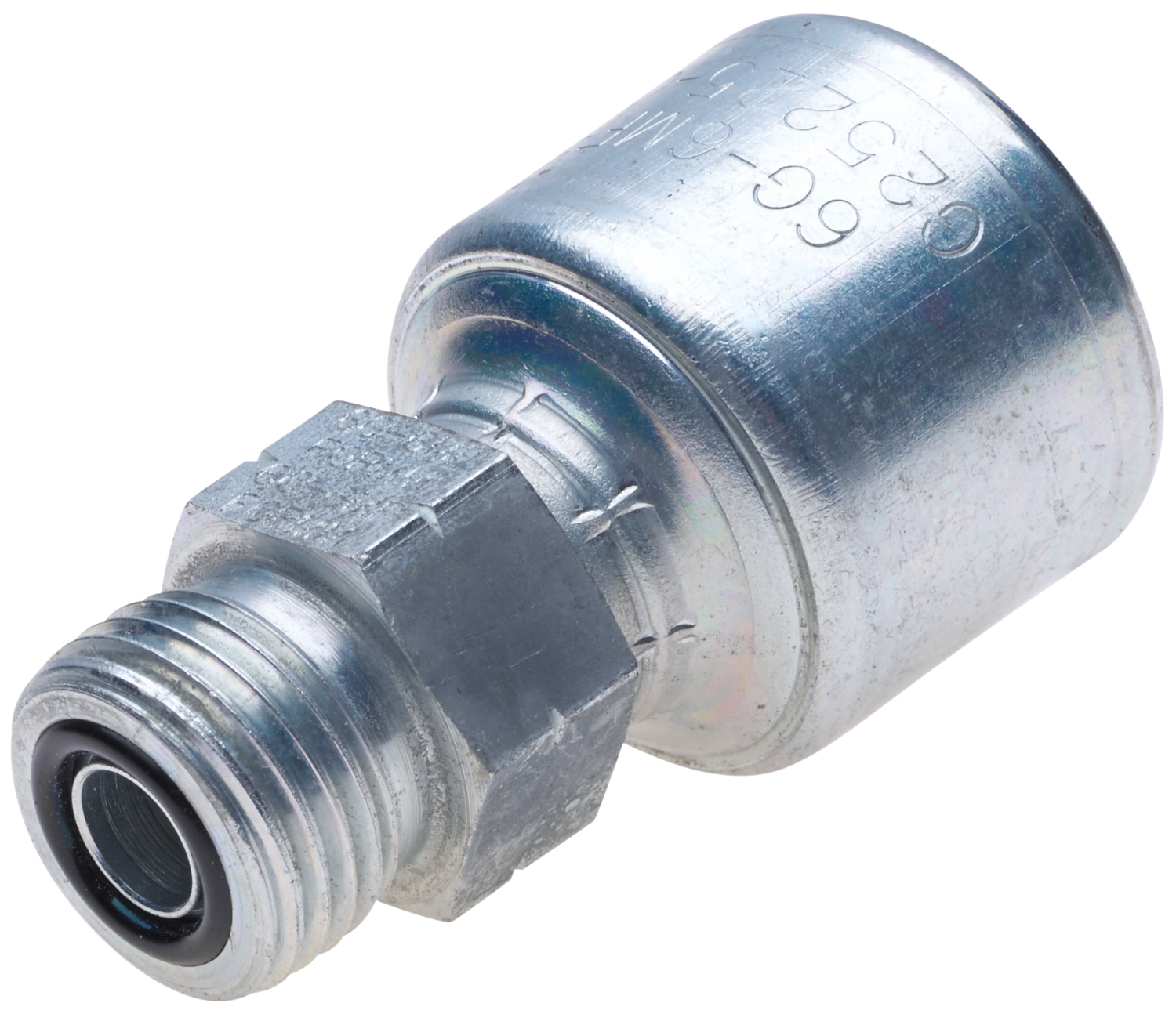

  • Male Flat-Face O-Ring (MegaCrimp)
Gender:Male
Swivel:No
Thread Size:11/16-16
Seal Type:O-Ring
Inside Diameter:.375

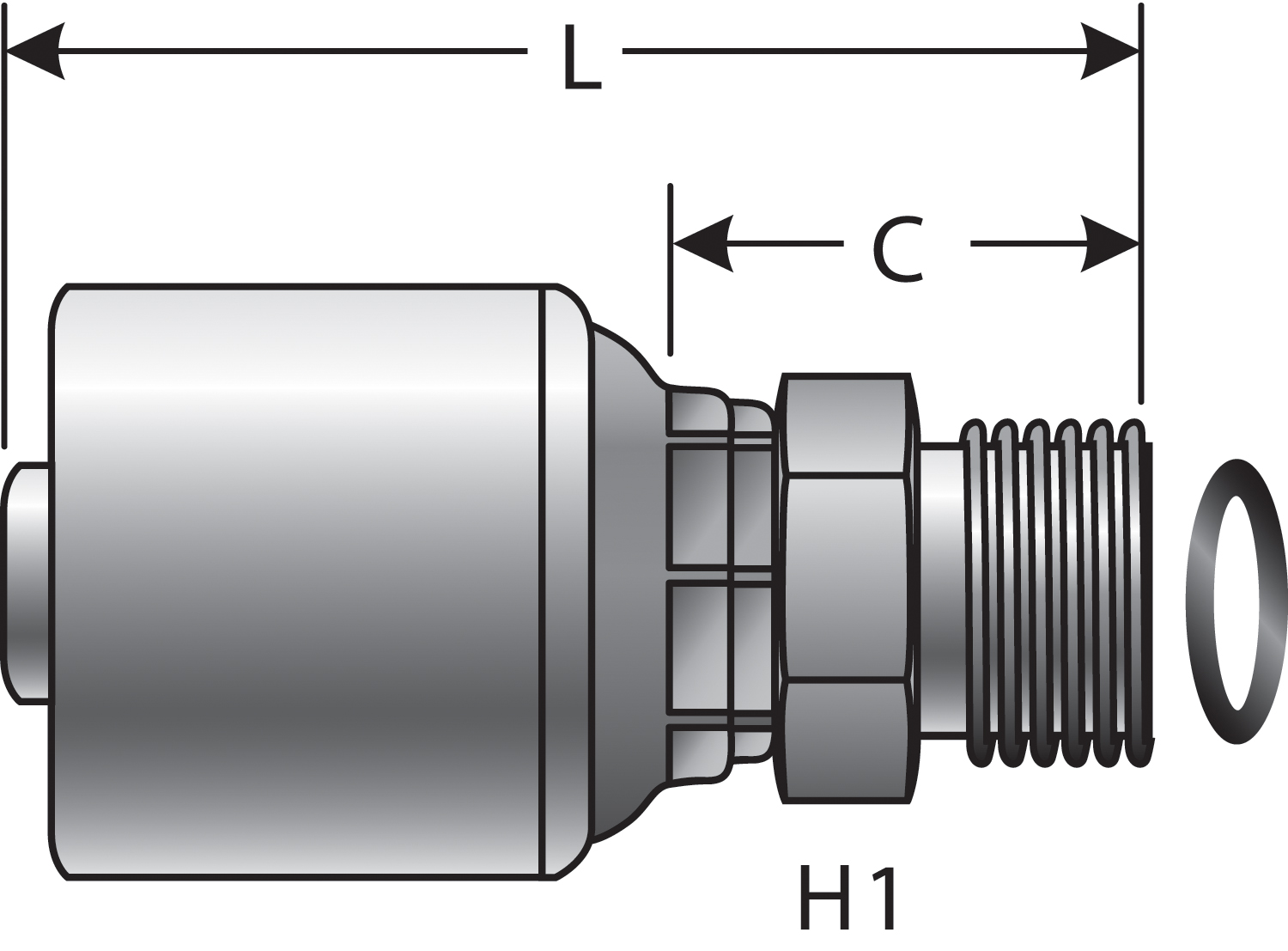

Length:2.2
Weight
0.1900

Compatibility


Alternative Part Numbers

  • Aeroquip 1AA6MR6
  • Dayco 108100
  • Goodyear 13730-0606
  • Goodyear 14730-0606
  • Goodyear B2-OFM-0606
  • Goodyear MF-06-06
  • Goodyear UC-OFM-0606
  • Kurt Hydraulics MF-06-06
  • NAPA G25225-0606
  • Parker 1J043-06-06
  • Parker 1J043-6-6
  • Parker 1J0HY-6-6
  • Parker 1JM43-06-06
  • Weatherhead 06UE66
  • Weatherhead 06UEE66
  • Weatherhead 06ZE66
  • Weatherhead 1J043-6-6
