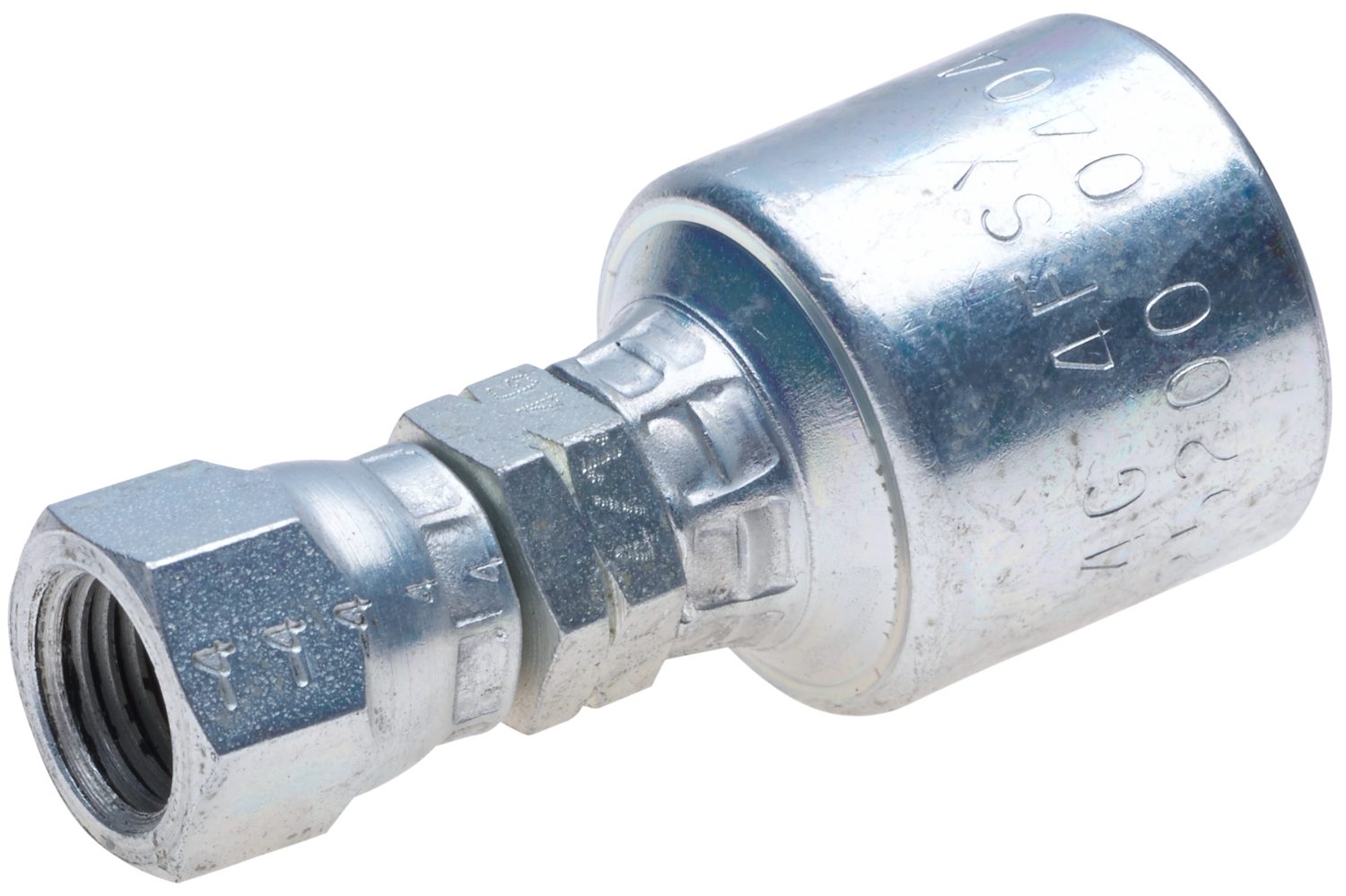

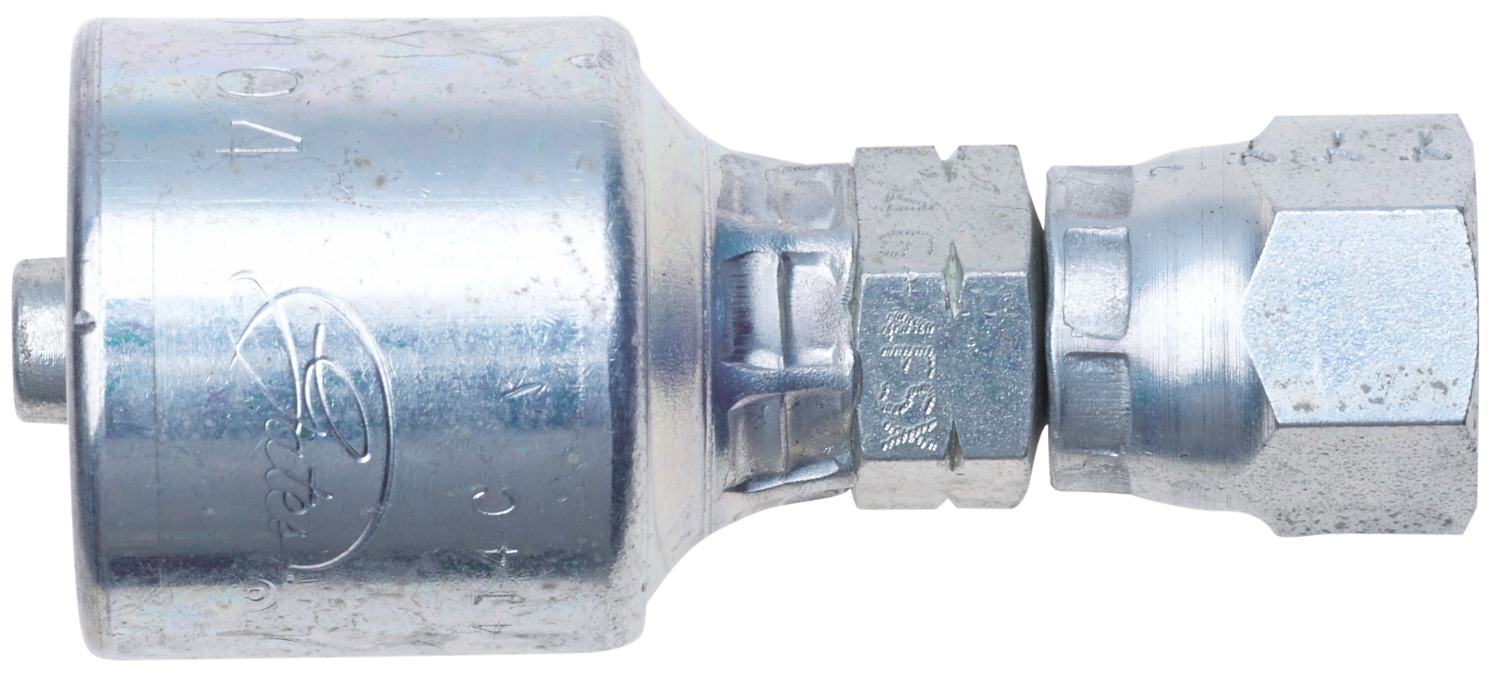

Gates Corporation Hydraulic Coupling / Adapter Part No: G25200-0808
$14.71
MegaCrimp
Female SAE 45 Flare Swivel (MegaCrimp)
Specifications
The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose.
Gender: Female
Swivel: Yes
Thread Size: 3/4-16
Seal Type: Mated Angle
Inside Diameter: .5
Length: 2.82
Swivel: Yes
Thread Size: 3/4-16
Seal Type: Mated Angle
Inside Diameter: .5
Length: 2.82
Weight
0.3000
Compatibility
Alternative Part Numbers
- Aeroquip 1AA8FS8
- Dayco 108007
- Dayco 108348
- Goodyear 14775-0808
- Goodyear T7-SFFX-0808
- Goodyear T8-SFFX-0808
- NAPA G25200-0808
- Parker 108HY-8-8
- Weatherhead 08Z408
- Weatherhead 22908P408
- Weatherhead 33808P408
