Specifications

The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose.

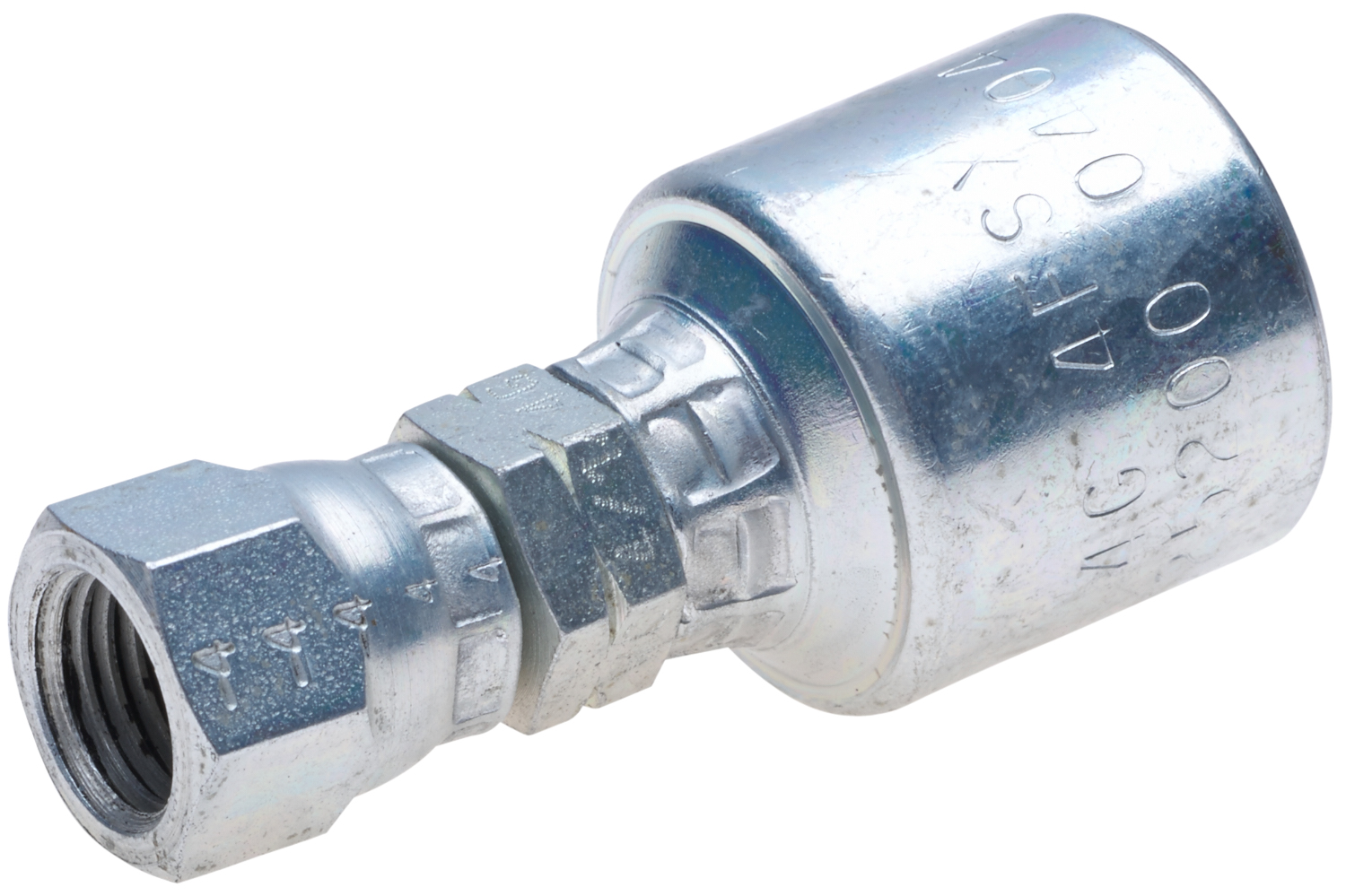

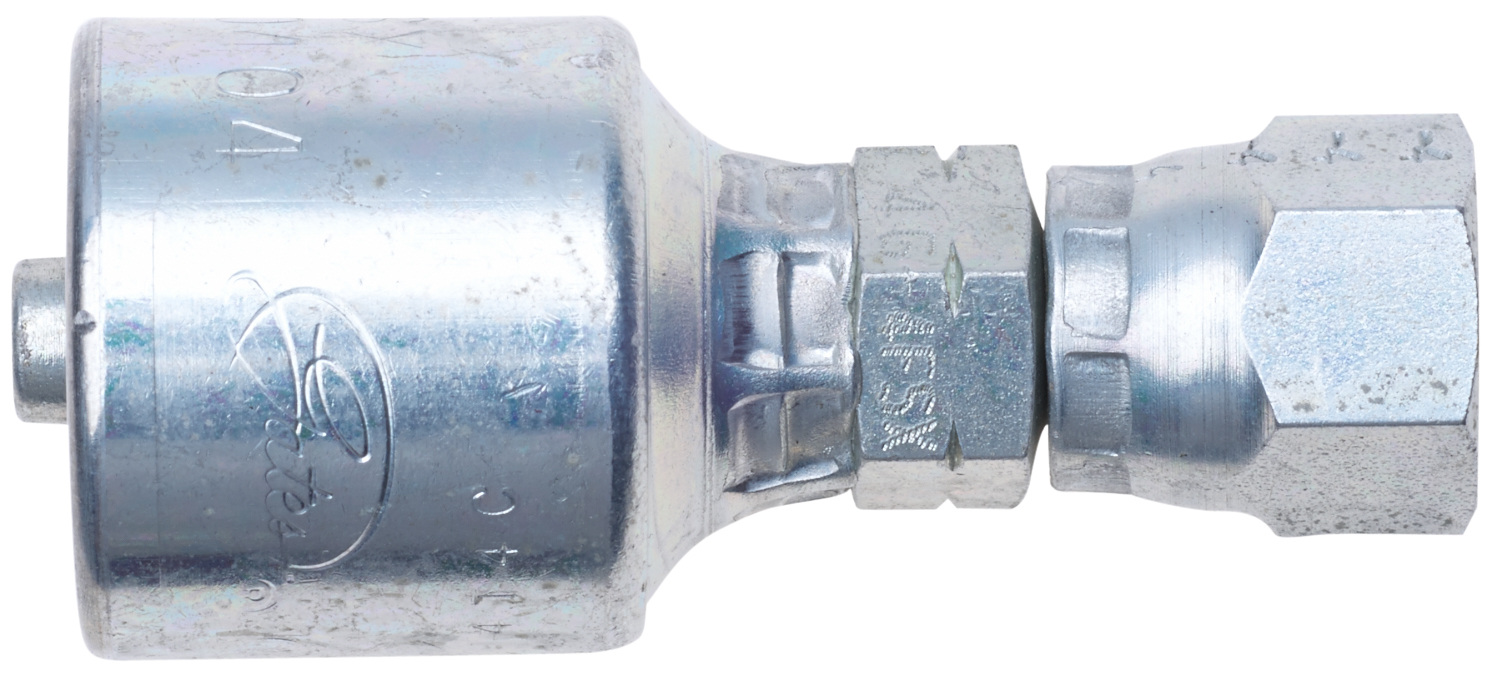

  • Female SAE 45 Flare Swivel (MegaCrimp)
Weight
0.1700
Gender:Female
Swivel:Yes
Thread Size:5/8-18
Seal Type:Mated Angle
Inside Diameter:.375

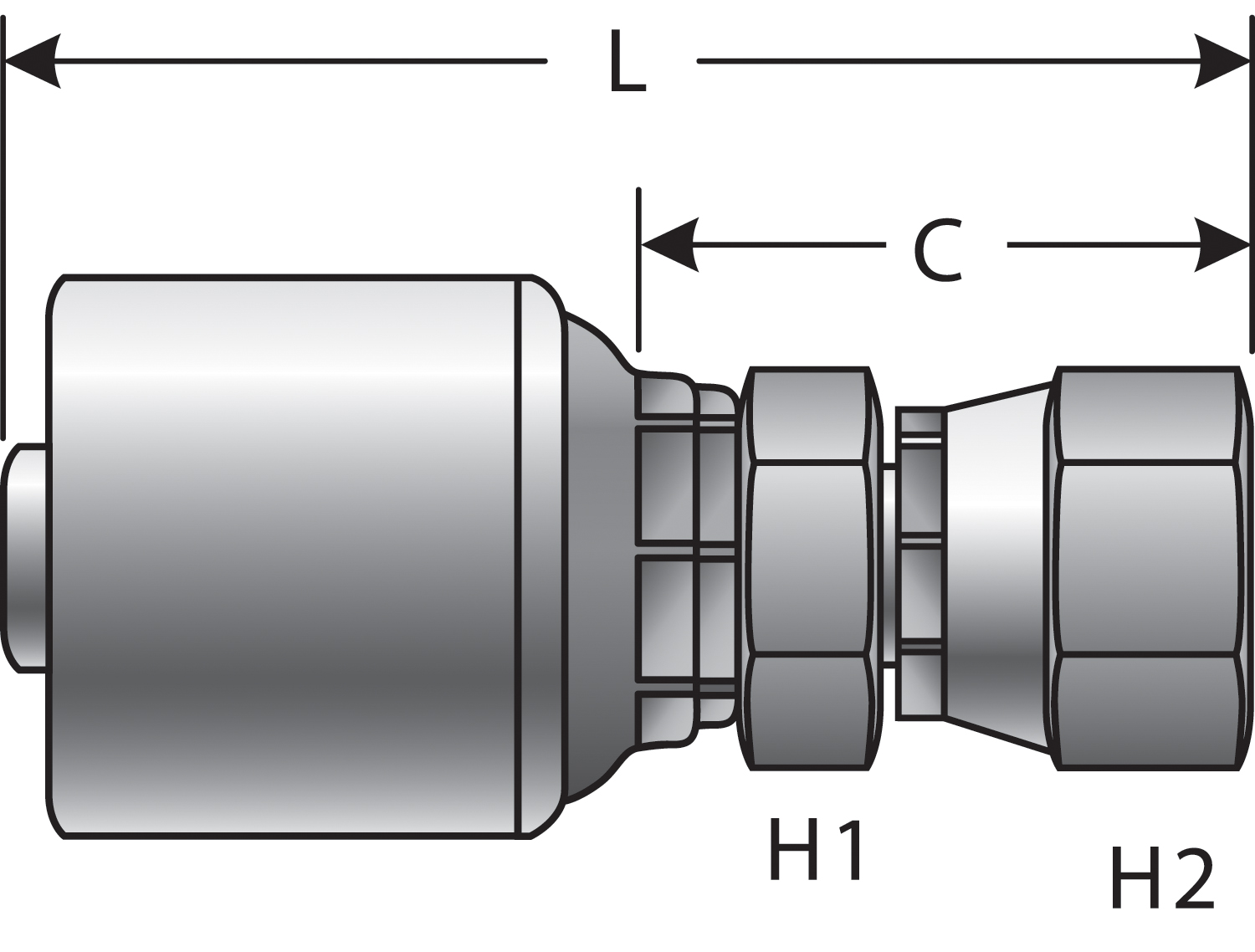

Length:2.44

Compatibility


Alternative Part Numbers

Aeroquip 1AA6FS6
Aeroquip FJ9123-0606S
Dayco 108003
Dayco 108005
Dayco 108345
Goodyear 13775-0606
Goodyear 14775-0606
Goodyear B2-SFFX-0606
Goodyear T8-SFFX-0606
Kurt Hydraulics FSX-06-06
NAPA FJ9123-0606S
Parker 10843-06-06
Parker 10843-6-6
Parker 108HY-6-6
Weatherhead 06E406
Weatherhead 06EE406
Weatherhead 06U406
Weatherhead 06Z406
Weatherhead 22906P406
Weatherhead 33606E406
Weatherhead 33606E-406
Weatherhead 33806P406
Goodyear 33606E-406
NAPA G25200-0606
