Gates Corporation Hydraulic Coupling / Adapter Part No: G25180-0808
$33.28
MegaCrimp

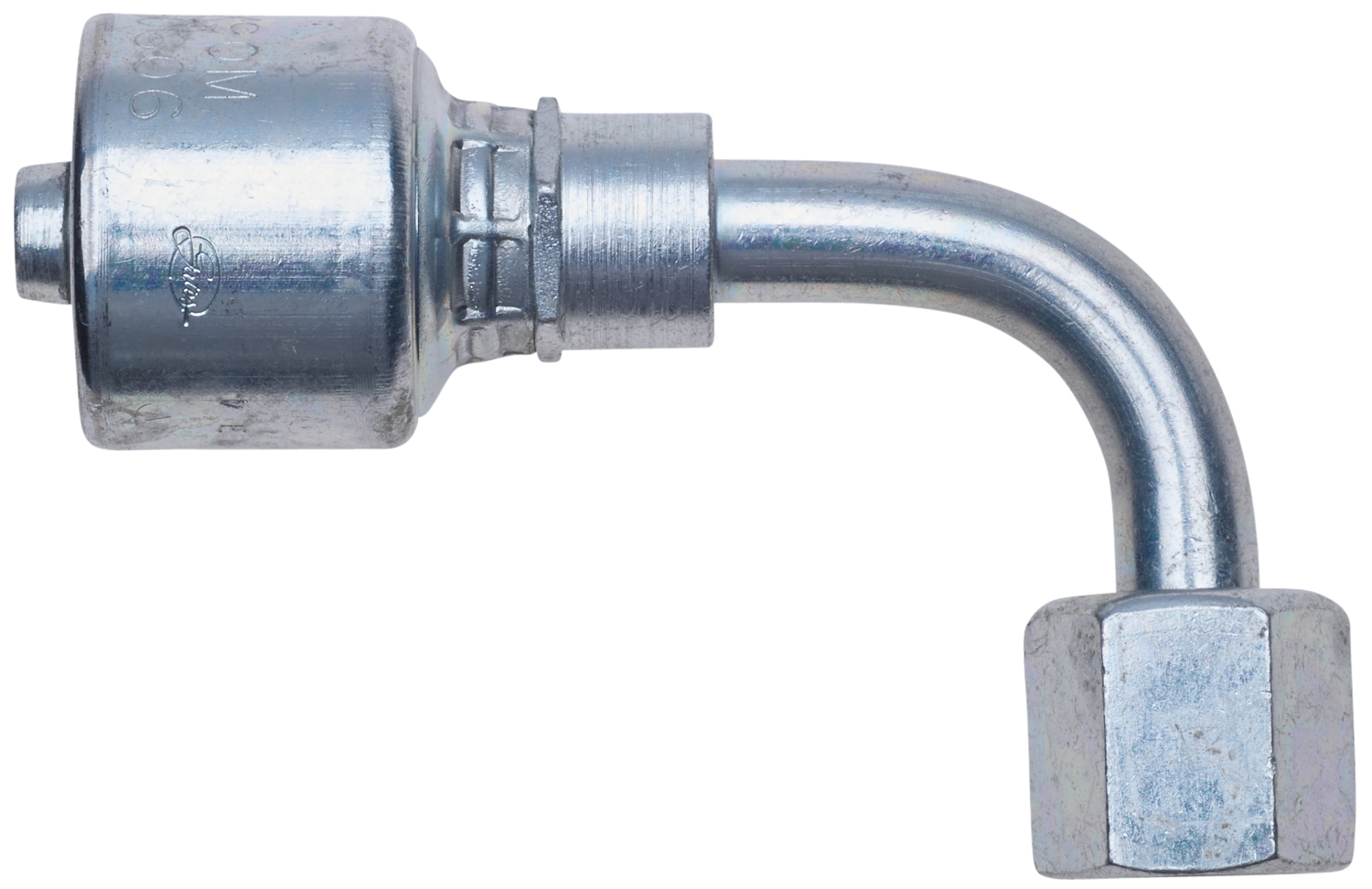

Female JIC 37 Flare Swivel - 90 Bent Tube (MegaCrimp)
Specifications
The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose.
Gender: Female
Swivel: Yes
Thread Size: 3/4-16
Seal Type: Mated Angle
Inside Diameter: .5

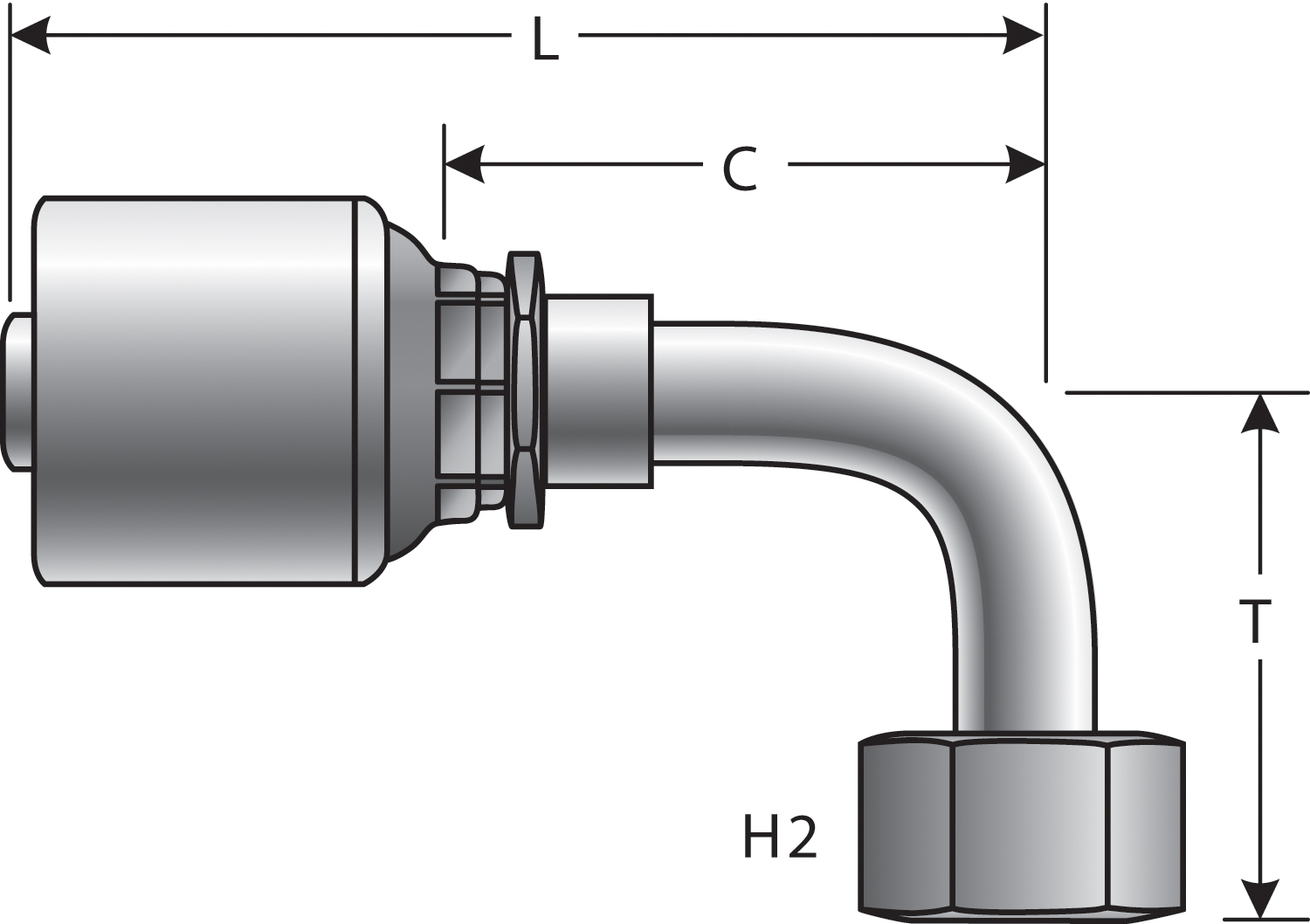

Length: 3.04
Drop Length: 1.61
Swivel: Yes
Thread Size: 3/4-16
Seal Type: Mated Angle
Inside Diameter: .5
Length: 3.04
Drop Length: 1.61
Weight
0.4000
Compatibility
Alternative Part Numbers
- OEM:
- <br />
- Aeroquip 1AA8FJB8
- Aeroquip FJ9132-0808S
- Dayco 108634
- Dayco 151609
- Gates 8G-8FJX90M
- Gates G25180-0808
- Goodyear 13425-0808
- Goodyear 14425-0808
- Goodyear B2-JCFX90-0808
- Goodyear T8-JCFX90-0808
- Goodyear UC-JCFX90-0808
- Hydraulink S55-1208
- NAPA G25180-0808
- Parker 1L943-08-08
- Parker 1L943-8-8
- Weatherhead 08E648
- Weatherhead 08EE648
- Weatherhead 08U558
