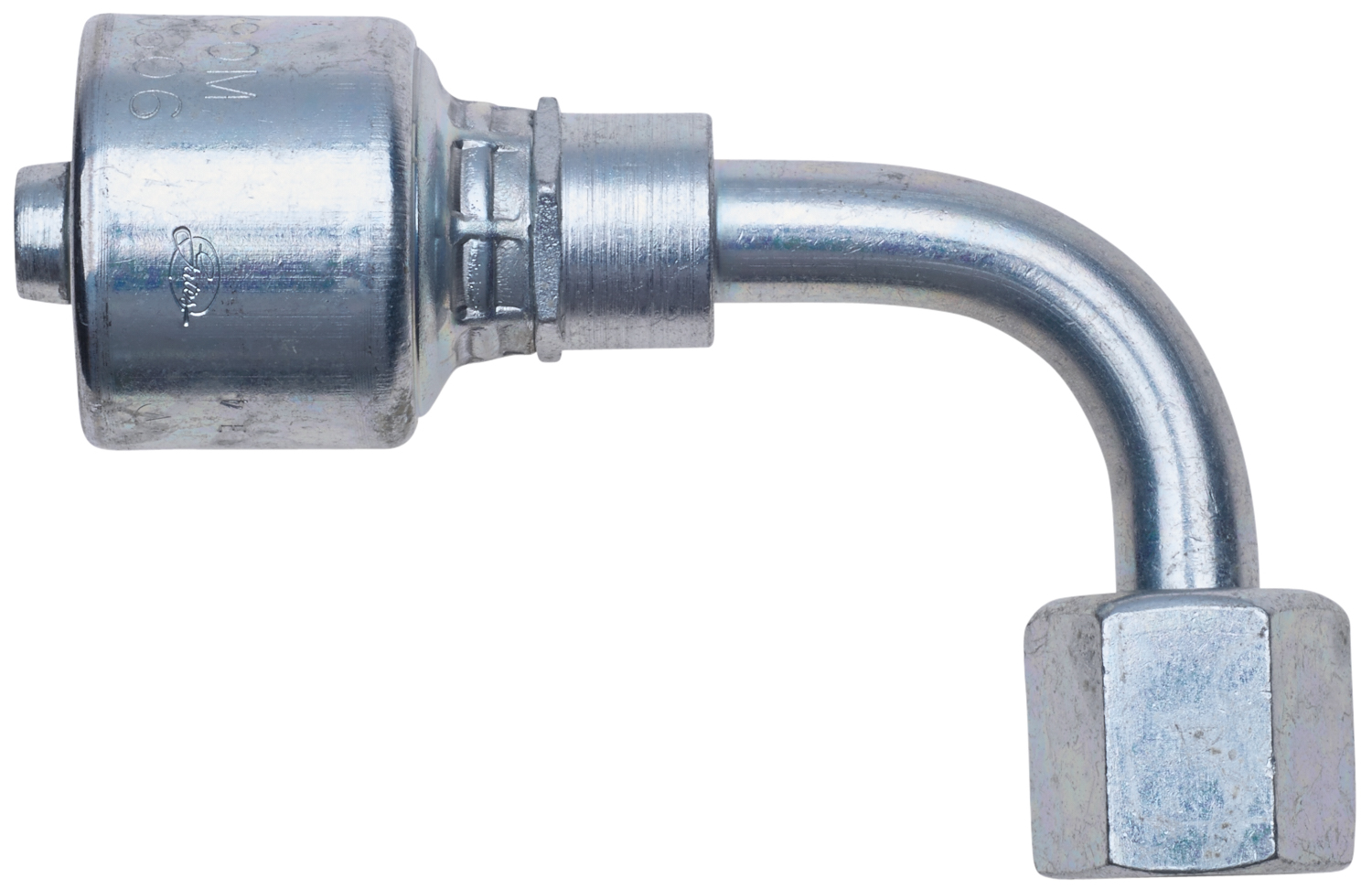

Hydraulic Coupling / Adapter - G25180-0608

Hydraulic Coupling / Adapter

Gates Hydraulic Coupling / Adapter G25180-0608 is expertly engineered to deliver high performance in demanding hydraulic systems. This hydraulic coupling ensures a reliable, leak-free connection, even under high-pressure conditions, maintaining smooth fluid flow. The hydraulic adapter is designed with durability in mind, capable of withstanding harsh environmental factors to provide long-lasting performance. Whether you’re assembling a new hydraulic system or replacing an existing part, this Gates hydraulic adapter guarantees efficient operation and minimal downtime. Its easy installation process reduces system disruption, making it an ideal choice for quick maintenance and repairs. Choose this Gates hydraulic adapter for superior quality and reliability in all your industrial applications.

Gates Corporation MegaCrimp Part No: G25180-0608

Specifications

The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose.

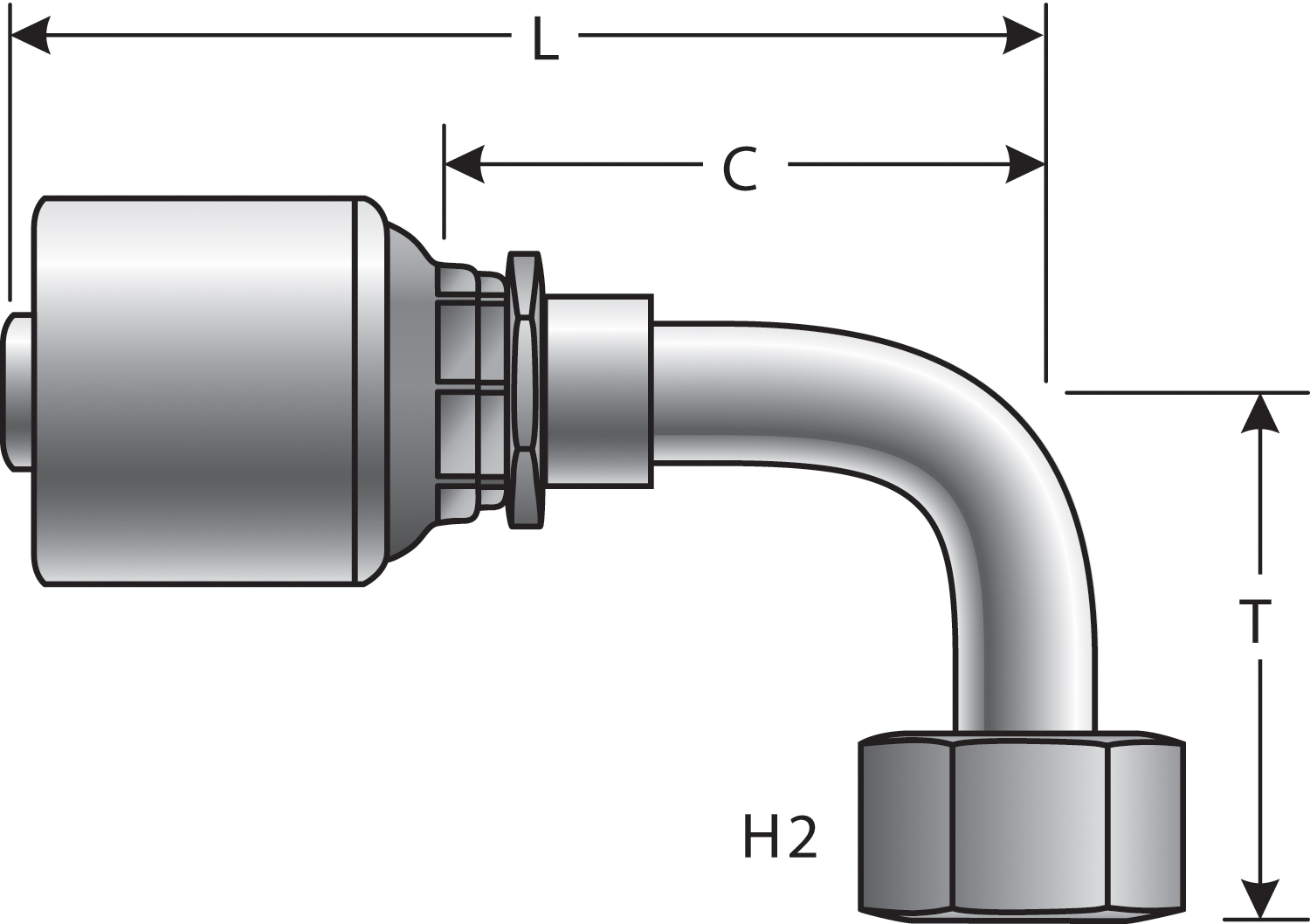

Female JIC 37 Flare Swivel - 90 Bent Tube (MegaCrimp)

Weight

0.2300

Gender:Female
Swivel:Yes
Thread Size:3/4-16
Seal Type:Mated Angle
Inside Diameter:.375
Length:3.31
Drop Length:1.61

Compatibility

Alternative Part Numbers

Aeroquip FJ9132-0806S
Goodyear 13425-0608
Goodyear 14425-0608
Goodyear B2-JCFX90-0608
Goodyear T8-JCFX90-0608
Goodyear UC-JCFX90-0608
NAPA 1L943-8-6
Parker 1L943-08-06
Parker 1L943-8-6
Weatherhead 06E648
Weatherhead 06EE648
Parker B2-JCFX90-0608
NAPA G25180-0608
