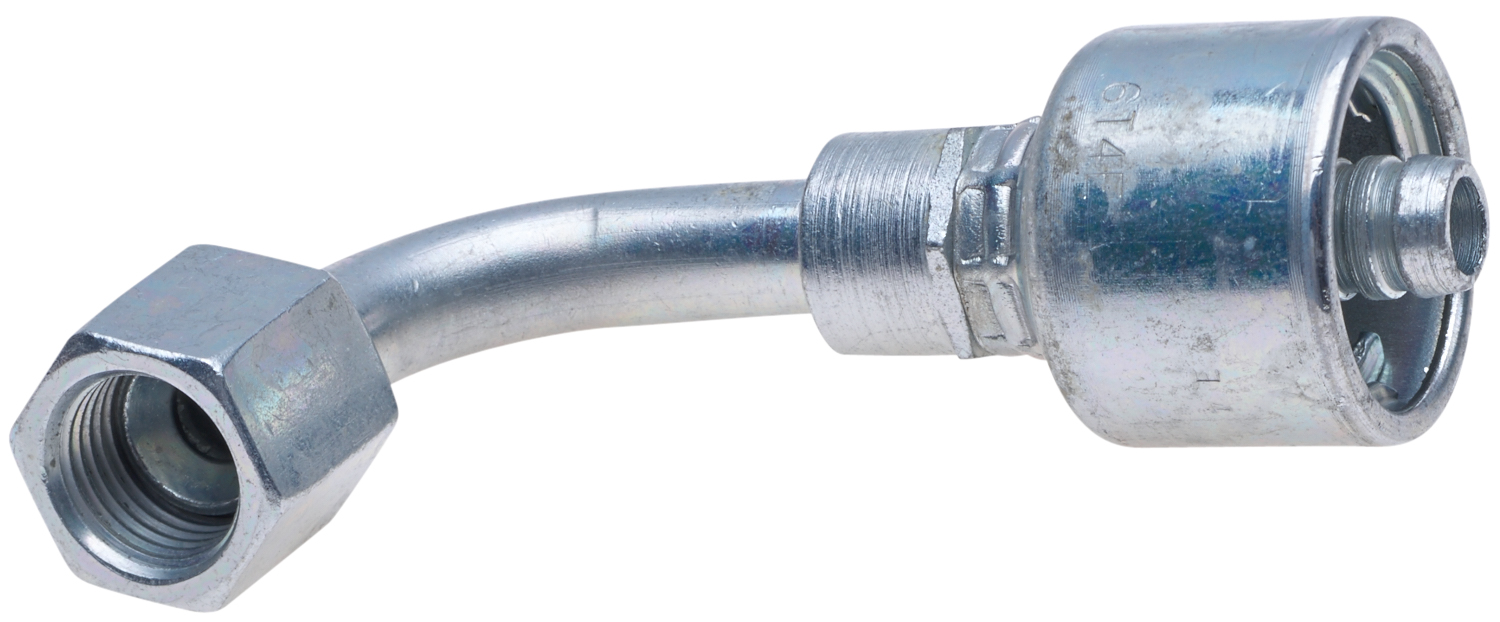

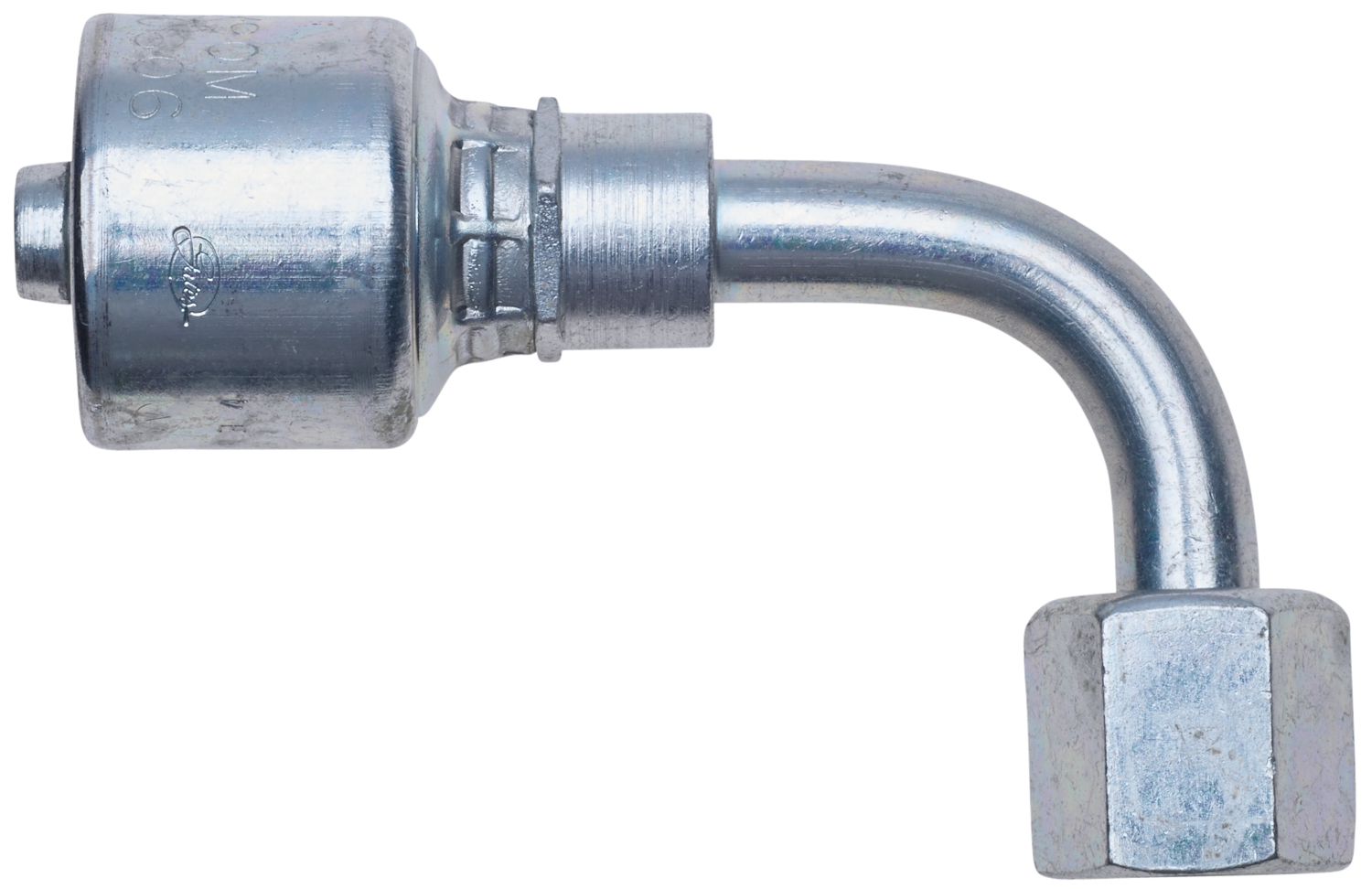

Hydraulic Coupling / Adapter
Gates Hydraulic Coupling Adapter G25180-0404 is designed for efficient and reliable connections in your hydraulic systems. This high-quality hydraulic coupling ensures a secure fit and optimal performance. Ideal for various applications, it serves as a crucial hydraulic adapter for seamless operation. With robust construction, this product enhances the durability and reliability of your coupling parts, making it a perfect choice for maintaining your hydraulic equipment. Upgrade to Gates for dependable performance in every connection.
$24.25
Specifications
The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose.
- Female JIC 37 Flare Swivel - 90 Bent Tube (MegaCrimp)
Weight
0.1500
Swivel: Yes
Thread Size: 7/16-20
Seal Type: Mated Angle
Inside Diameter: .25

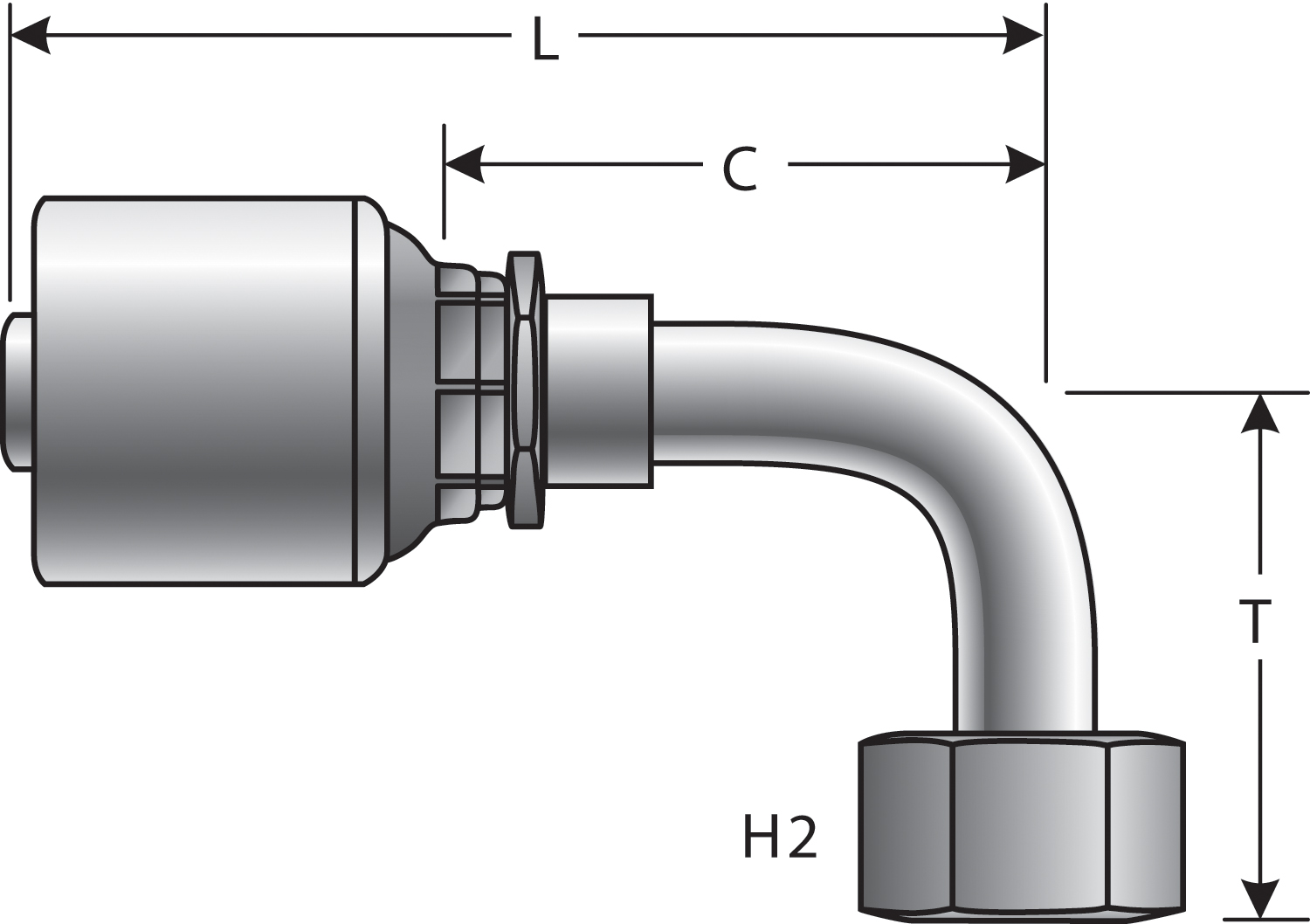

Length: 2.48
Drop Length: 1.26
Compatibility
Alternative Part Numbers
Dayco 108632
Aeroquip FJ9132-0404S
Goodyear 13425-0404
Goodyear 14425-0404
Goodyear B2-JCFX90-0404
Goodyear T8-JCFX90-0404
Goodyear UC-JCFX90-0404
Hydraulink S55-0704
Kurt Hydraulics FJX90M-04-04
NAPA G25180-0404
Parker 1L943-04-04
Parker 1L943-4-4
Weatherhead 04E664
Weatherhead 04EE664
Weatherhead 04U554
Weatherhead 04U664
Aeroquip FJ9132-0404S
Goodyear 13425-0404
Goodyear 14425-0404
Goodyear B2-JCFX90-0404
Goodyear T8-JCFX90-0404
Goodyear UC-JCFX90-0404
Hydraulink S55-0704
Kurt Hydraulics FJX90M-04-04
NAPA G25180-0404
Parker 1L943-04-04
Parker 1L943-4-4
Weatherhead 04E664
Weatherhead 04EE664
Weatherhead 04U554
Weatherhead 04U664
