Hydraulic Coupling / Adapter - G25179-1616

Hydraulic Coupling / Adapter

Gates Hydraulic Coupling / Adapter G25179-1616 offers superior performance in high-pressure hydraulic applications, ensuring secure and efficient fluid flow. This hydraulic adapter is designed to provide a robust, leak-free connection, ideal for demanding environments. With its durable construction, this hydraulic coupling guarantees long-lasting reliability and minimal maintenance. Whether used in industrial machinery or construction equipment, Gates hydraulic adapters provide exceptional strength and dependability. Easy installation ensures that downtime is minimized, making this hydraulic adapter an excellent choice for efficient system performance. Trust Gates hydraulic coupling for its ability to withstand harsh conditions and deliver consistent results. Perfect for upgrading or maintaining high-performance hydraulic systems, it ensures optimal functionality and safety.

Gates Corporation MegaCrimp Part No: G25179-1616

$69.85

Specifications

The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose.

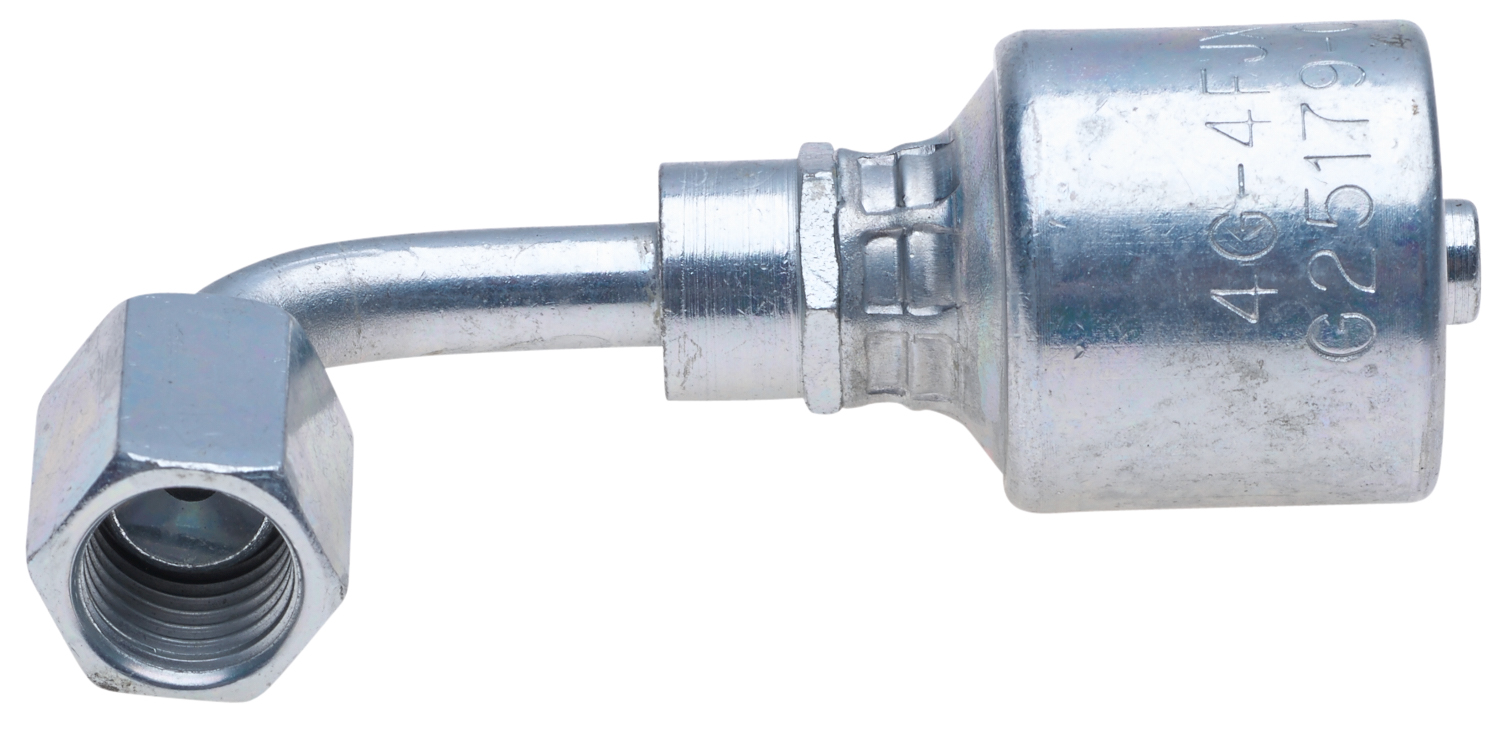

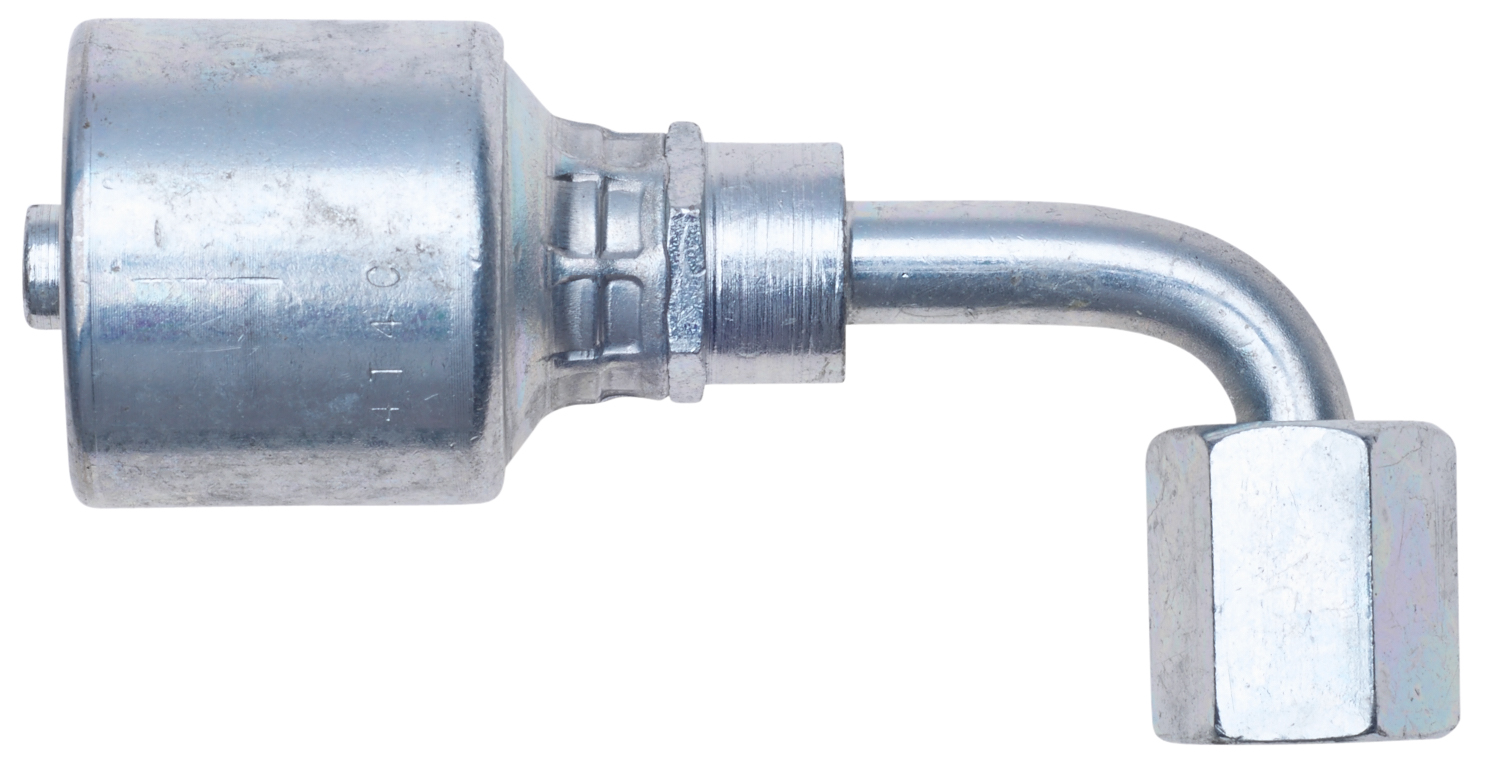

Female JIC 37 Flare Swivel - 90 Bent Tube (MegaCrimp)

Weight

1.4300

Gender:Female
Swivel:Yes
Thread Size:1 5/16-12
Seal Type:Mated Angle
Inside Diameter:1

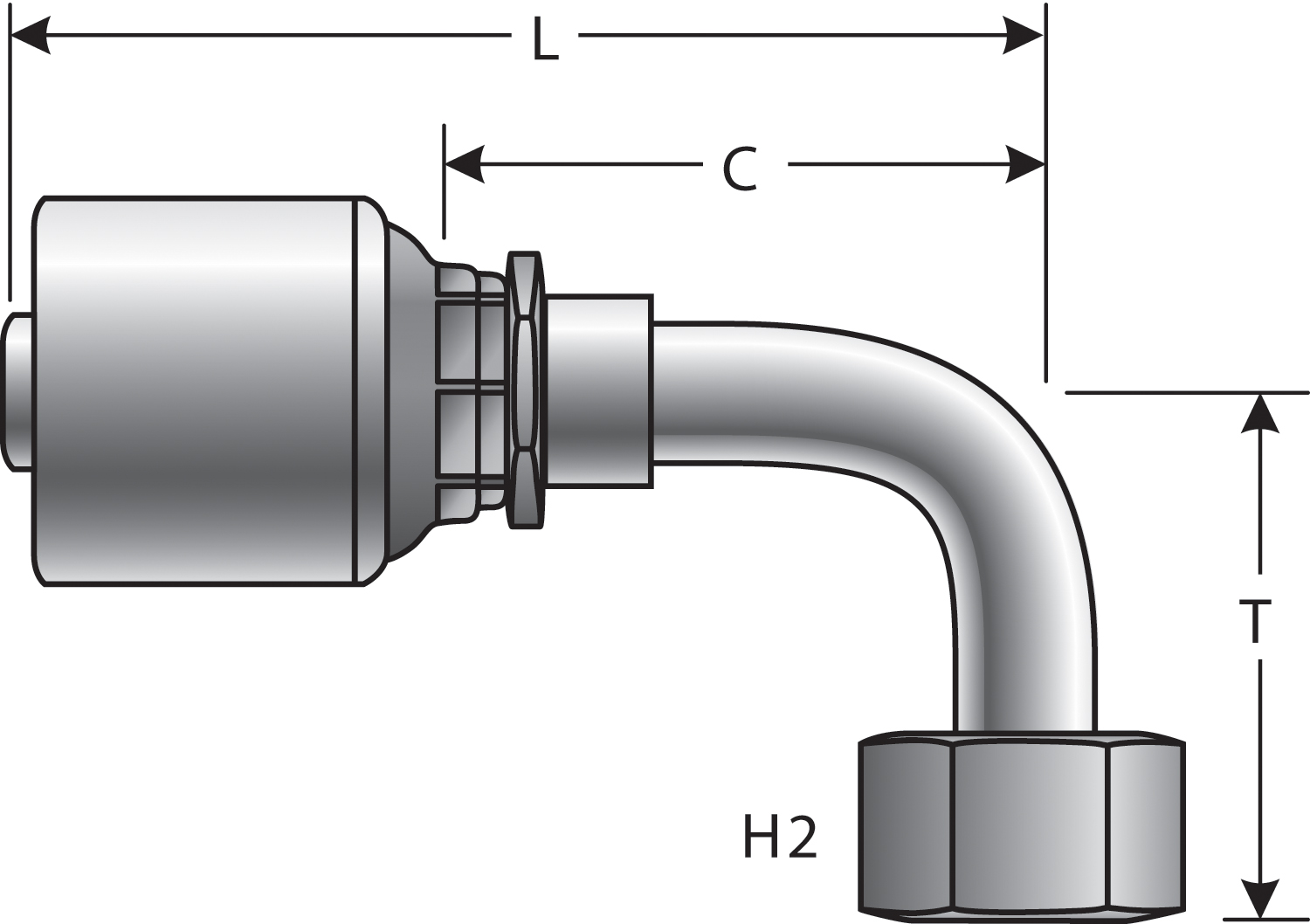

Length:5.73
Drop Length:2.2

Compatibility

Alternative Part Numbers

Aeroquip 1GA16FJB16
Dayco 108622
Goodyear 14445-1616
Goodyear B2-JCFX90S-1616
NAPA G25179-1616
Parker 13943-16-16
Parker 139HY-16-16
Weatherhead 108622
Parker 33616E676
Weatherhead 16U676
Weatherhead 16Z676
Weatherhead 33616E676
