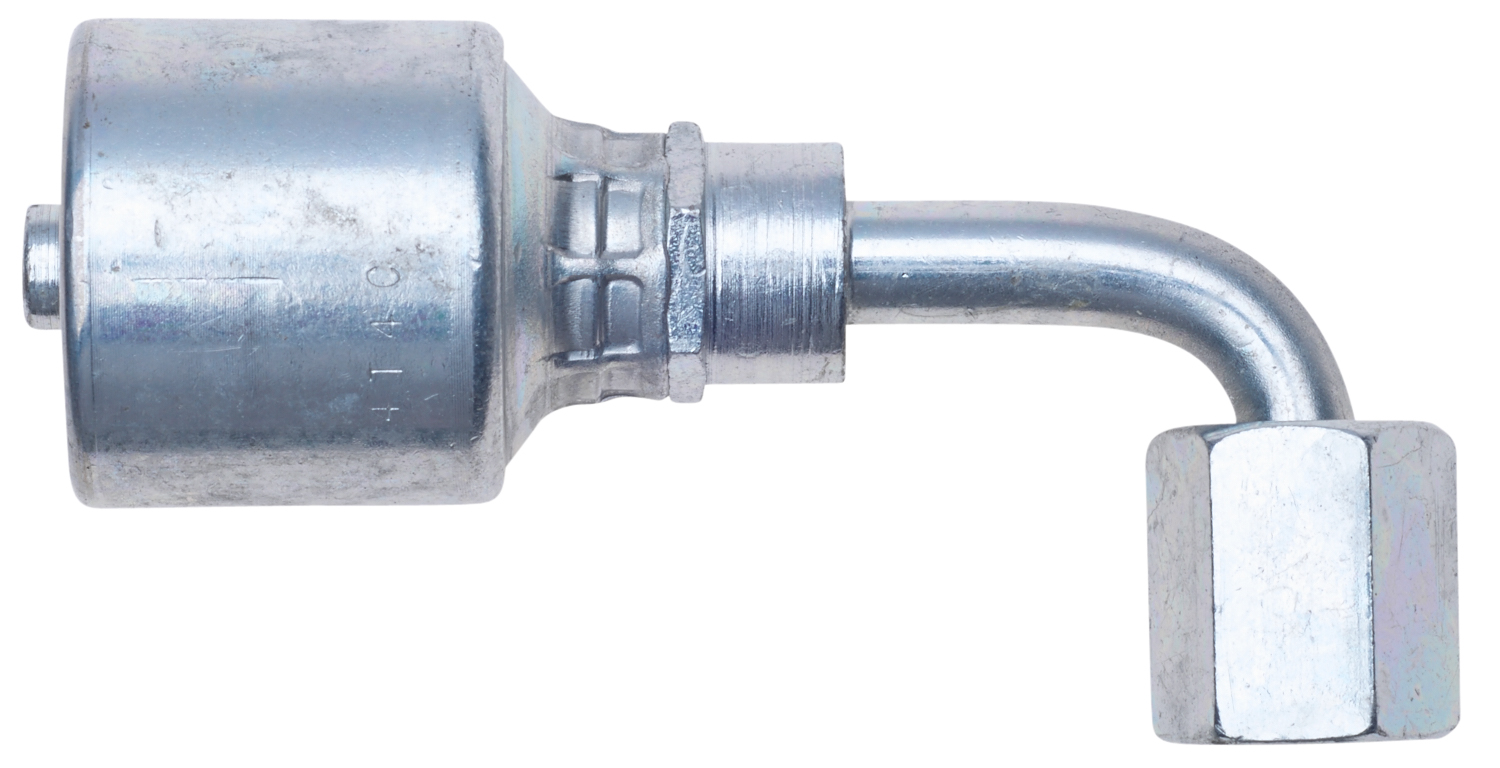

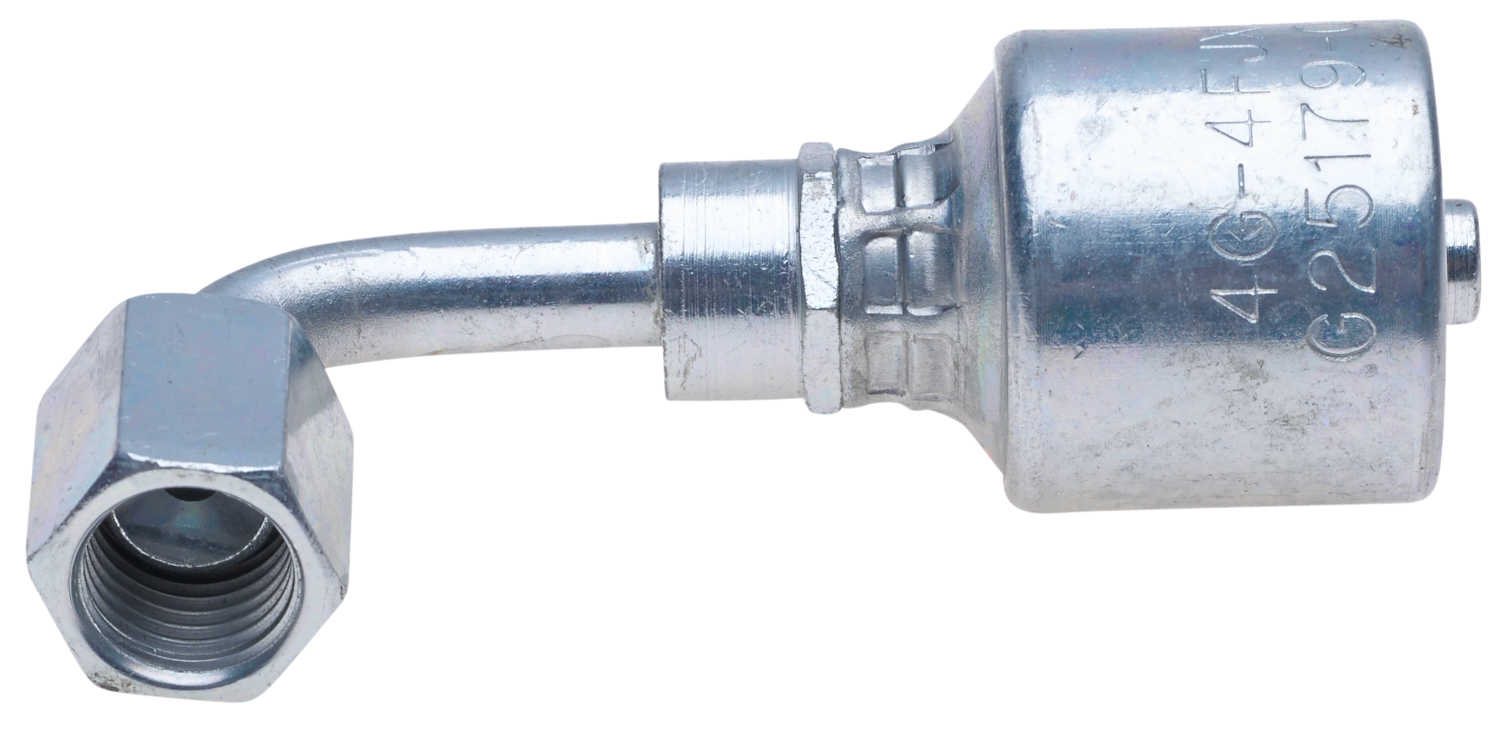

Hydraulic Coupling / Adapter - G25179-1212

Hydraulic Coupling / Adapter

Gates Hydraulic Coupling / Adapter G25179-1212 is engineered for high-performance hydraulic systems, providing reliable and leak-free connections. This hydraulic coupling is ideal for ensuring optimal fluid flow under pressure, even in demanding conditions. As a robust hydraulic adapter, it is designed to offer superior durability, reducing maintenance and downtime. Gates hydraulic adapters are built to withstand harsh environments, making them essential for a variety of industrial and commercial applications. Easy to install, this hydraulic adapter guarantees secure and efficient system connections. Whether used for new installations or system upgrades, Gates hydraulic coupling provides long-lasting performance and dependability. Choose this hydraulic adapter for its high-quality design and exceptional reliability in all high-pressure hydraulic applications.

Gates Corporation MegaCrimp Part No: G25179-1212

$44.34

Specifications

The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose.

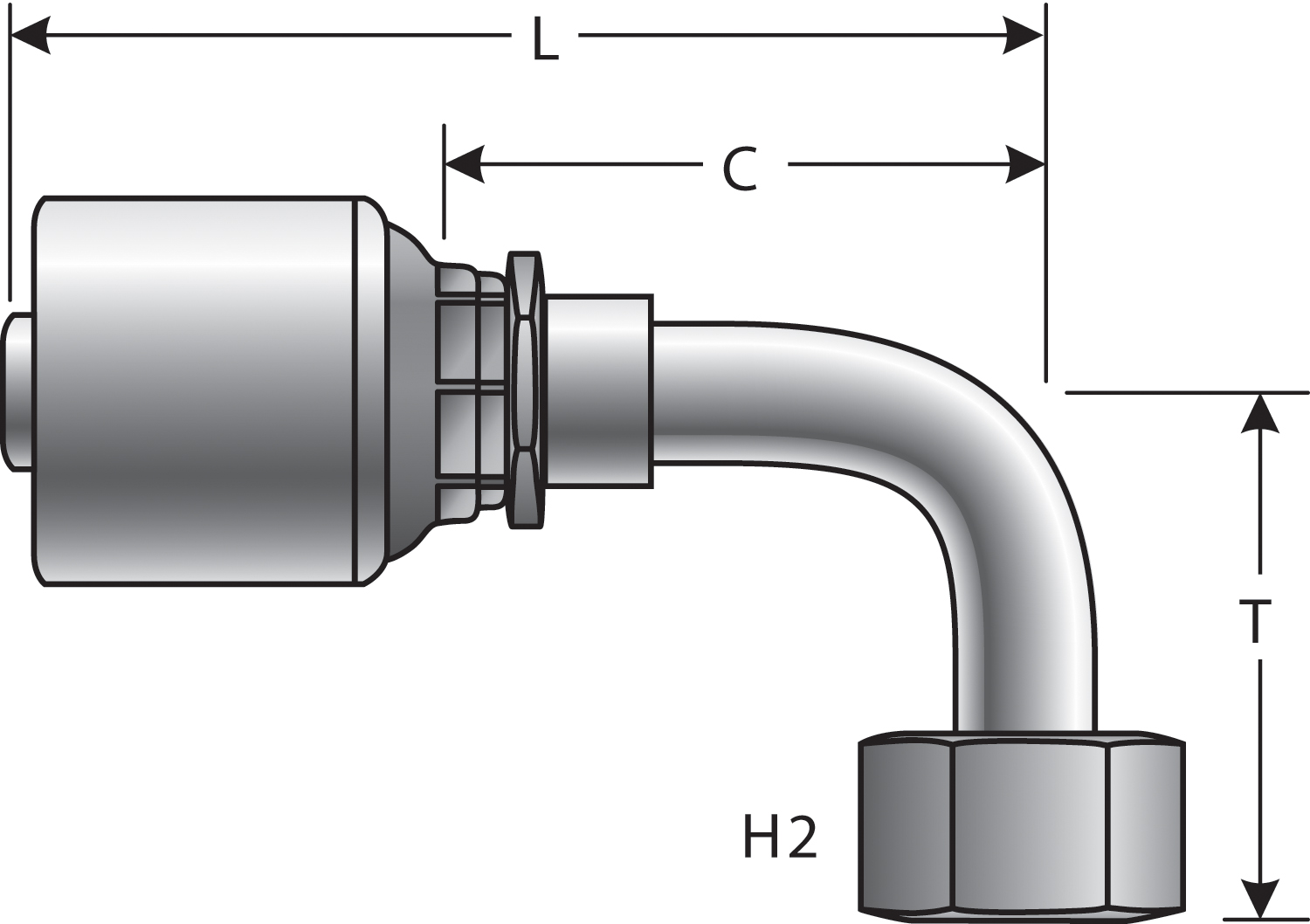

Female JIC 37 Flare Swivel - 90 Bent Tube (MegaCrimp)

Weight

0.8400

Gender:Female
Swivel:Yes
Thread Size:1 1/16-12
Seal Type:Mated Angle
Inside Diameter:.75
Length:4.82
Drop Length:1.89

Compatibility

Alternative Part Numbers

Dayco 108617
Aeroquip 1AA12FJB12
Aeroquip 1GA12FJB12
Caterpillar 124-2012
Goodyear 14445-1212
Goodyear B2-JCFX90S-1212
NAPA G25179-1212
Parker 13943-12-12
Parker 139HY-12-12
Weatherhead 12U672
Weatherhead 12Z672
Caterpillar 139HY-12-12
