Specifications

The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose.

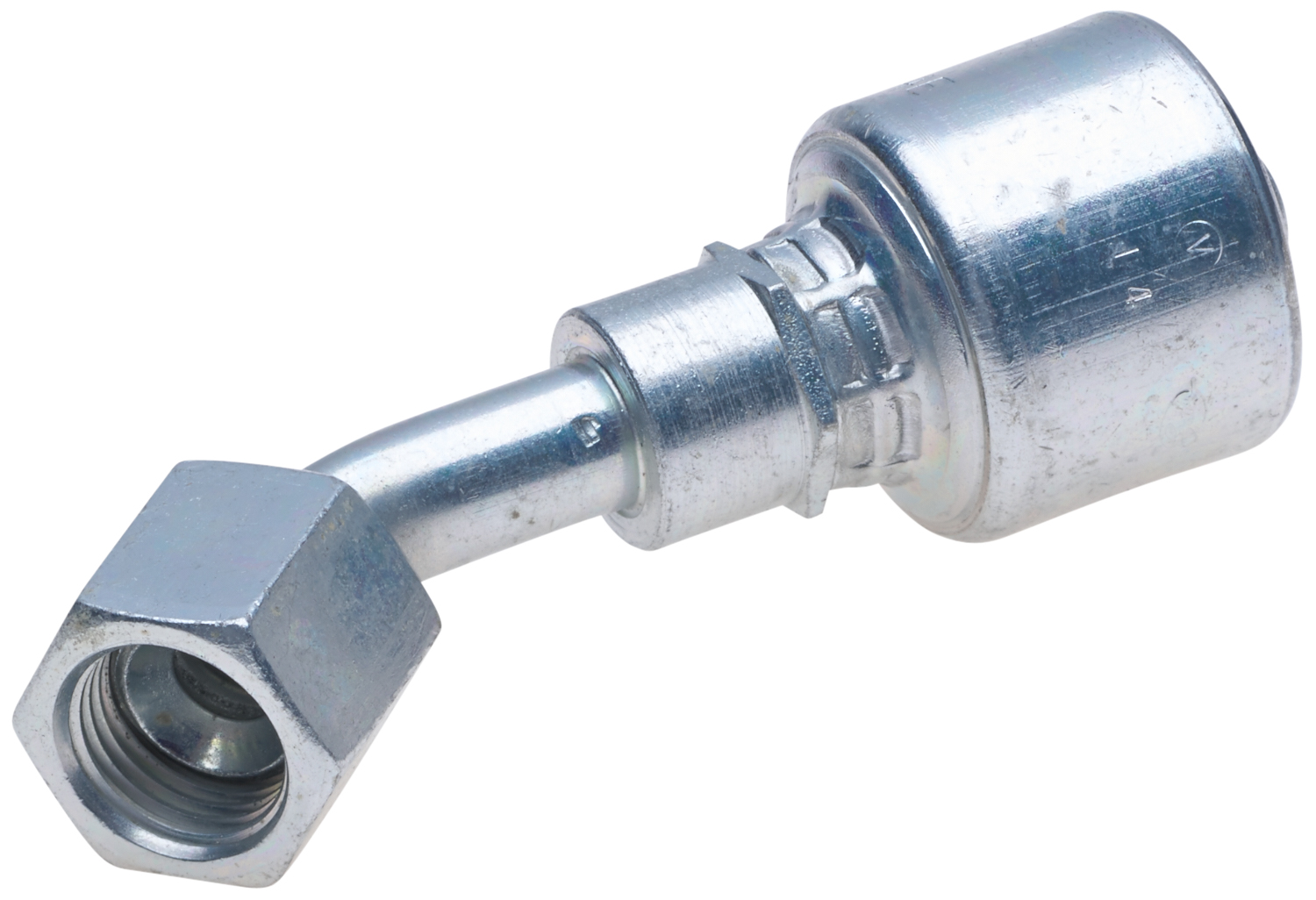

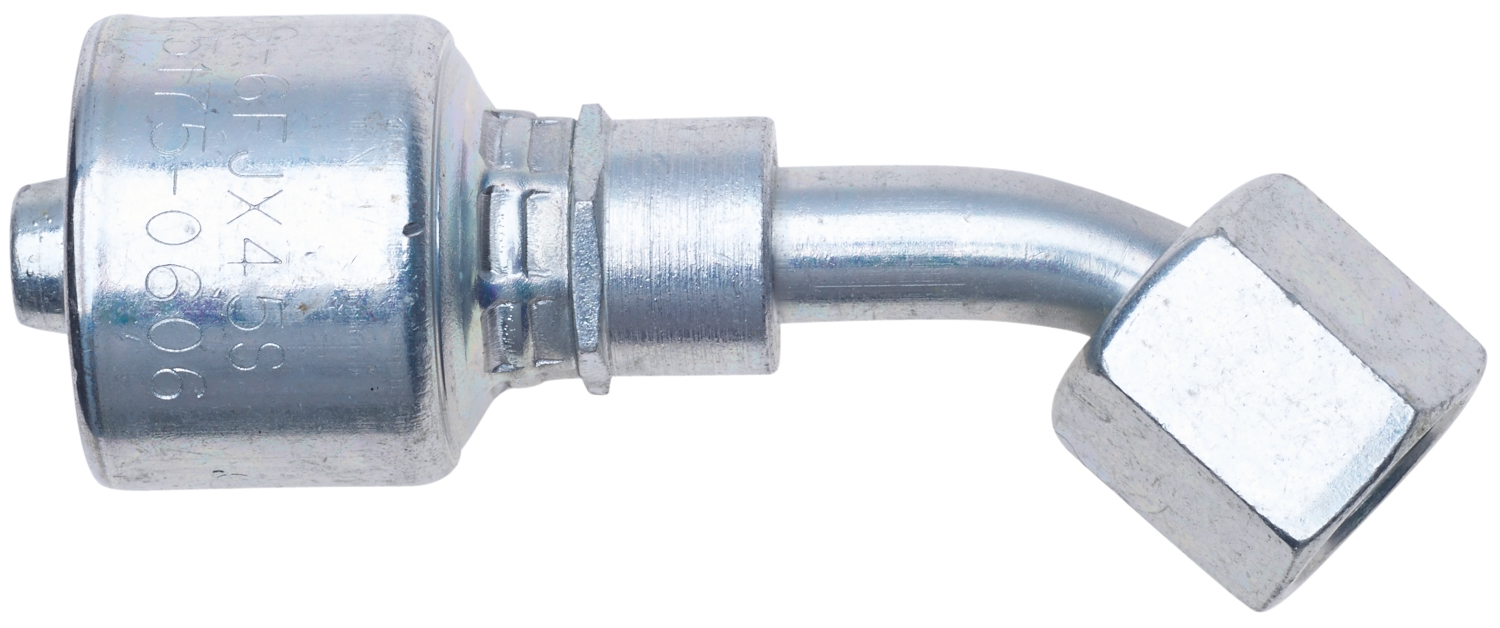

  • Female JIC 37 Flare Swivel - 45 Bent Tube (MegaCrimp)
Weight
0.4100
Gender:Female
Swivel:Yes
Thread Size:7/8-14
Seal Type:Mated Angle
Inside Diameter:.5

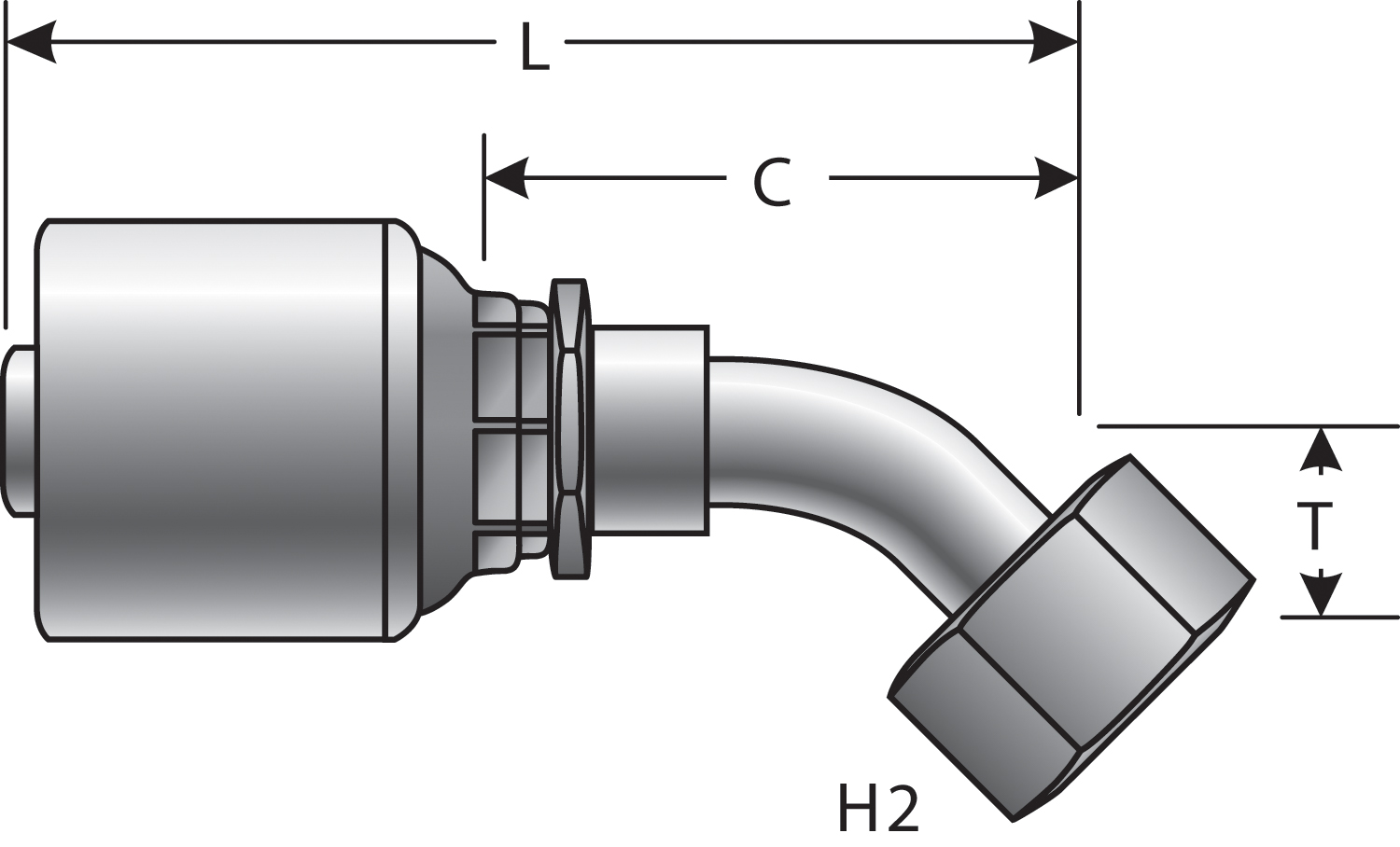

Length:3.81
Drop Length:.63

Compatibility


Alternative Part Numbers

Dayco 108574
Dayco 151574
Aeroquip 1AA10FJA8
Caterpillar 124-1983
Goodyear 13420-0810
Goodyear 14420-0810
Goodyear B2-JCFX45-0810
Goodyear T8-JCFX45-0810
Goodyear UC-JCFX45-0810
Hydraulink S64-1408
Kurt Hydraulics FJX45-08-10
NAPA G25175-0810
Parker 13743-10-08
Parker 13743-10-8
Parker 137HY-10-8
Weatherhead 08E690
Weatherhead 08EE690
Weatherhead 08U690
Weatherhead 08Z690
Weatherhead 33608E690
Weatherhead 33608E-690
Caterpillar 14420-0810

Related Parts
