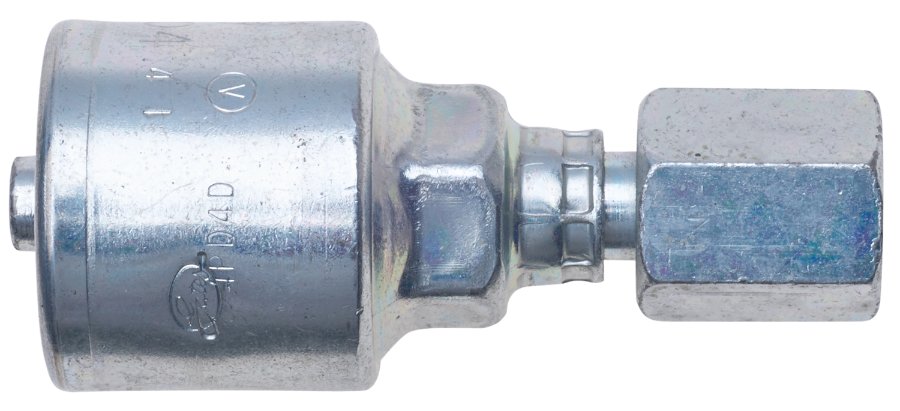

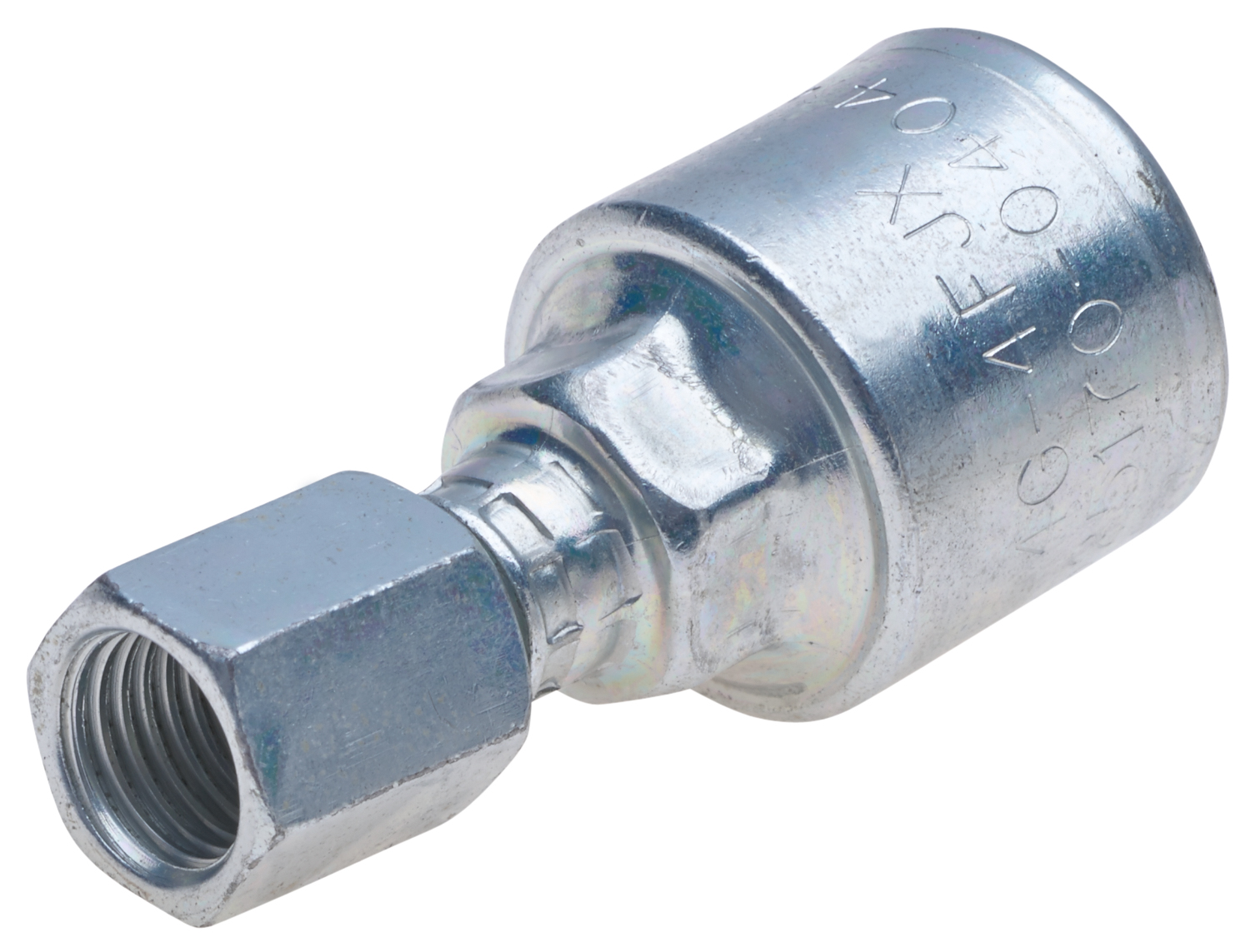

Hydraulic Coupling / Adapter - G25170-2020

Hydraulic Coupling / Adapter

Gates Hydraulic Coupling / Adapter G25170-2020 is engineered for seamless performance in hydraulic systems. This hydraulic coupling guarantees secure and leak-free connections, optimizing the flow of fluids in high-pressure environments. Designed to handle the toughest conditions, this hydraulic adapter is built to withstand demanding industrial applications with ease. Its robust construction reduces the risk of system failure, providing reliable service for longer operational periods. The Gates hydraulic adapter is an ideal solution for both new hydraulic systems and replacement needs. With easy installation and minimal maintenance, this adapter helps reduce downtime and enhance efficiency. Choose Gates for hydraulic adapters that ensure the longevity and performance of your equipment.

Gates Corporation MegaCrimp Part No: G25170-2020

$78.11

Specifications

The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose.

Female JIC 37 Flare Swivel (MegaCrimp)

Weight

1.7250

Gender:Female
Swivel:Yes
Thread Size:1 5/8-12
Seal Type:Mated Angle
Inside Diameter:1.25

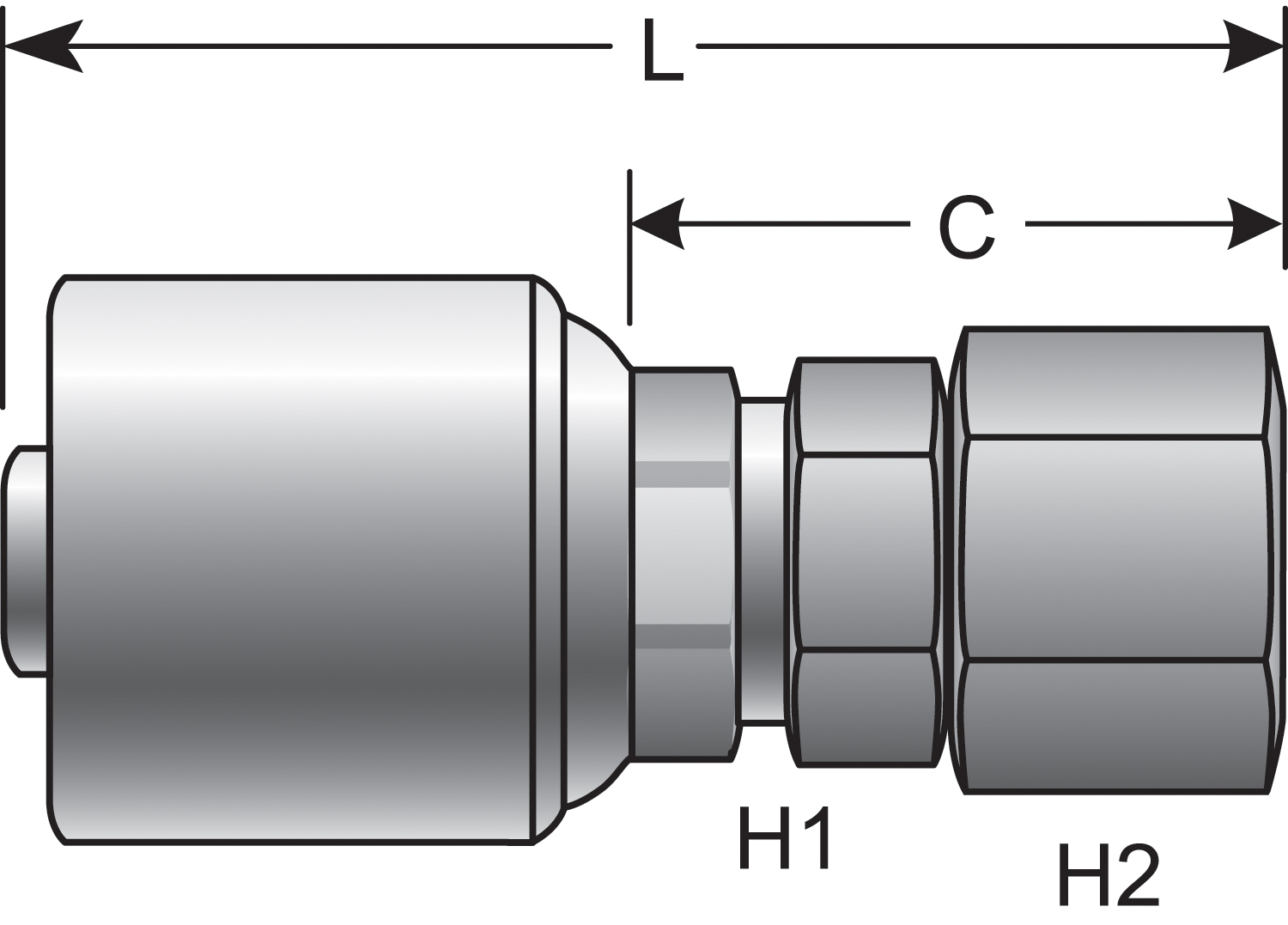

Length:4.42

Compatibility

Alternative Part Numbers

Dayco 108098
Aeroquip 1AR20FJ20
Aeroquip 1AV20FJ20
Aeroquip 1GA20FJ20
Caterpillar 124-1975
Kurt Hydraulics FJX-20-20
NAPA G25170-2020
Parker 10643-20-20
Parker 106HY-20-20
Weatherhead 20S620
Weatherhead 20U620
Weatherhead 20Z620
Weatherhead 20ZA620
Caterpillar 108098
