Hydraulic Coupling / Adapter - G25170-1210

Hydraulic Coupling / Adapter

Gates Hydraulic Coupling / Adapter G25170-1210 delivers reliable performance in a variety of hydraulic applications. This hydraulic coupling ensures secure, leak-free connections that are essential for maintaining fluid flow in high-pressure systems. Designed with durability in mind, the hydraulic adapter can handle tough conditions, offering dependable service even in harsh environments. Its robust construction minimizes the risk of failure, allowing your hydraulic system to operate efficiently over time. Whether you are building a new system or replacing an older component, this Gates hydraulic adapter is an ideal solution. Quick installation and hassle-free setup ensure reduced downtime and improved operational efficiency. Trust in Gates to provide high-quality hydraulic adapters that enhance the performance of your equipment.

Gates Corporation MegaCrimp Part No: G25170-1210

$24.49

Specifications

The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose.

Female JIC 37 Flare Swivel (MegaCrimp)

Weight

0.5300

Gender:Female
Swivel:Yes
Thread Size:7/8-14
Seal Type:Mated Angle
Inside Diameter:.75

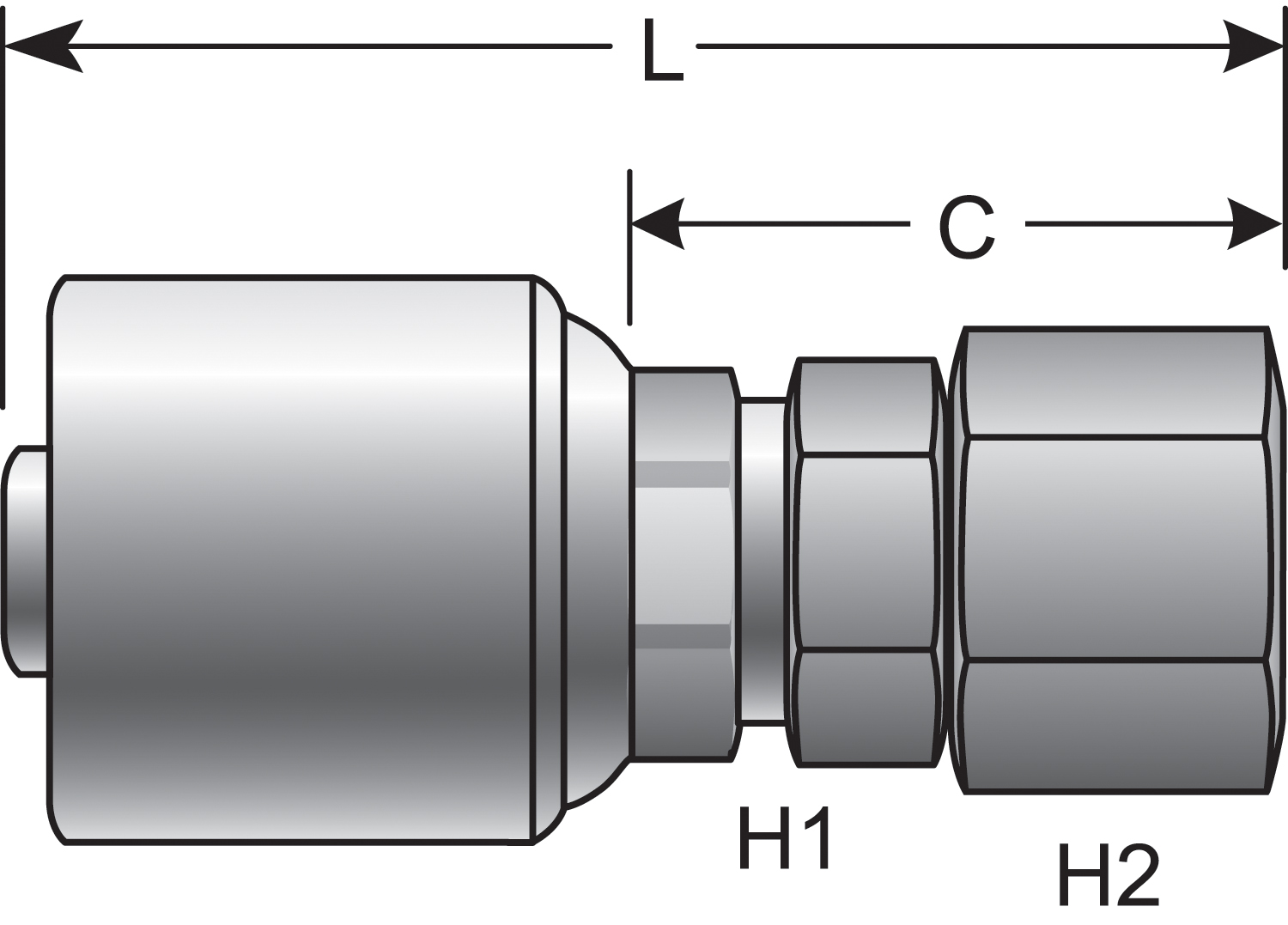

Length:3.51

Compatibility

Alternative Part Numbers

Aeroquip 1AA10FJ12
Aeroquip FJ9122-1012S
Caterpillar 124-1968
Goodyear 14400-1210
Goodyear B2-JCFX-1210
Kurt Hydraulics FJX-12-10
NAPA G25170-1210
Parker 10643-10-12
Parker 106HY-10-12
Weatherhead 12U610
Weatherhead 12Z610
Aeroquip 14400-1210
