Specifications

The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose.

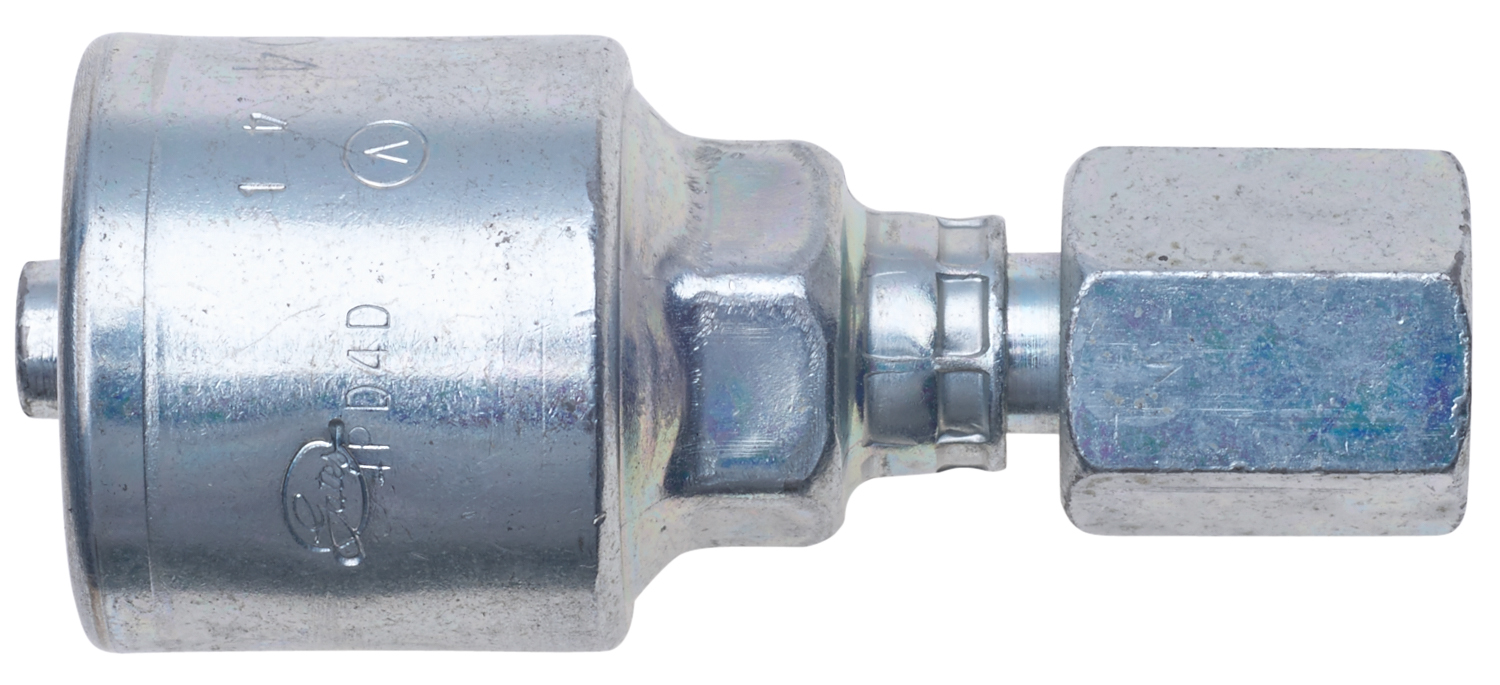

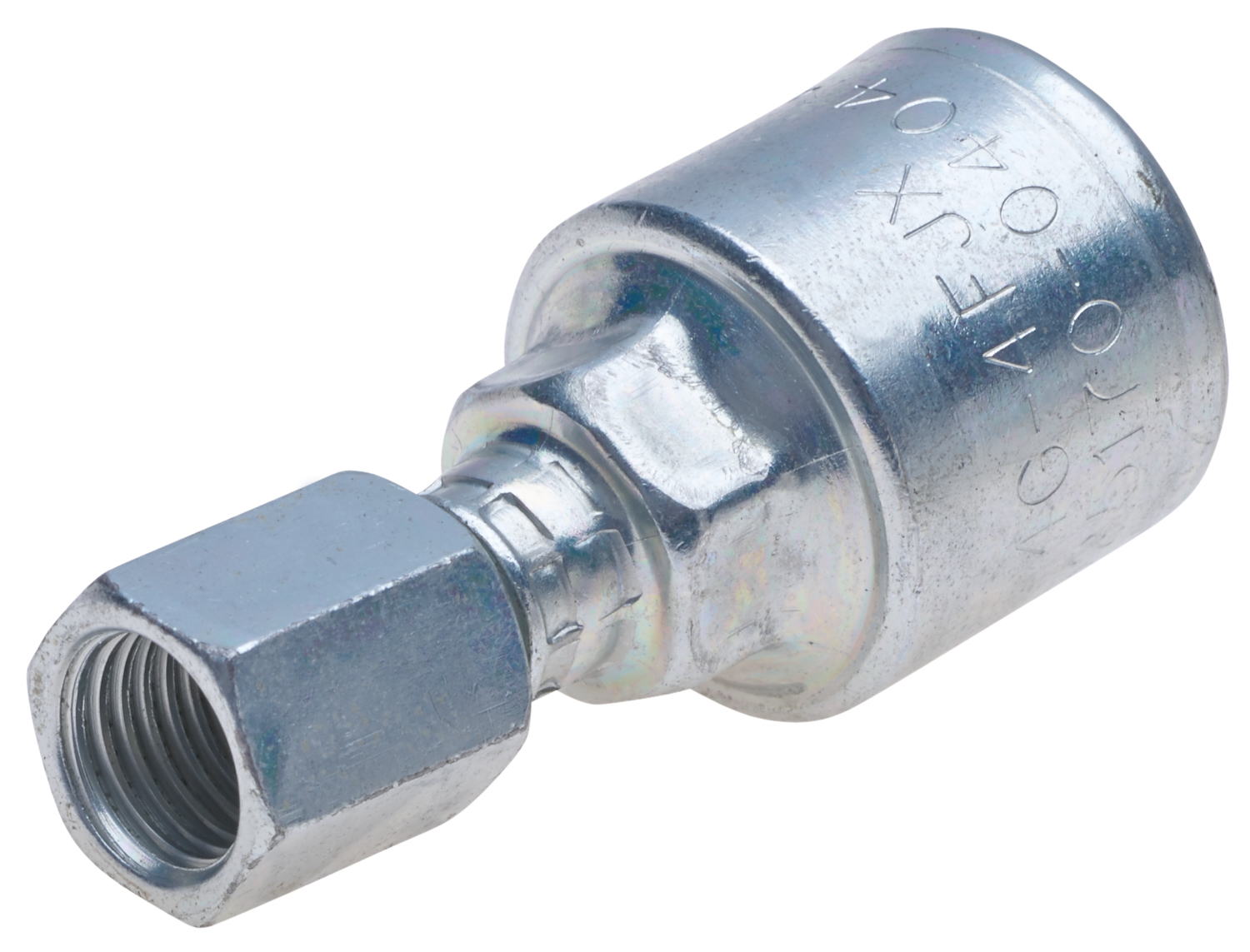

  • Female JIC 37 Flare Swivel (MegaCrimp)
Weight
0.4450
Gender:Female
Swivel:Yes
Thread Size:1 1/16-12
Seal Type:Mated Angle
Inside Diameter:.5

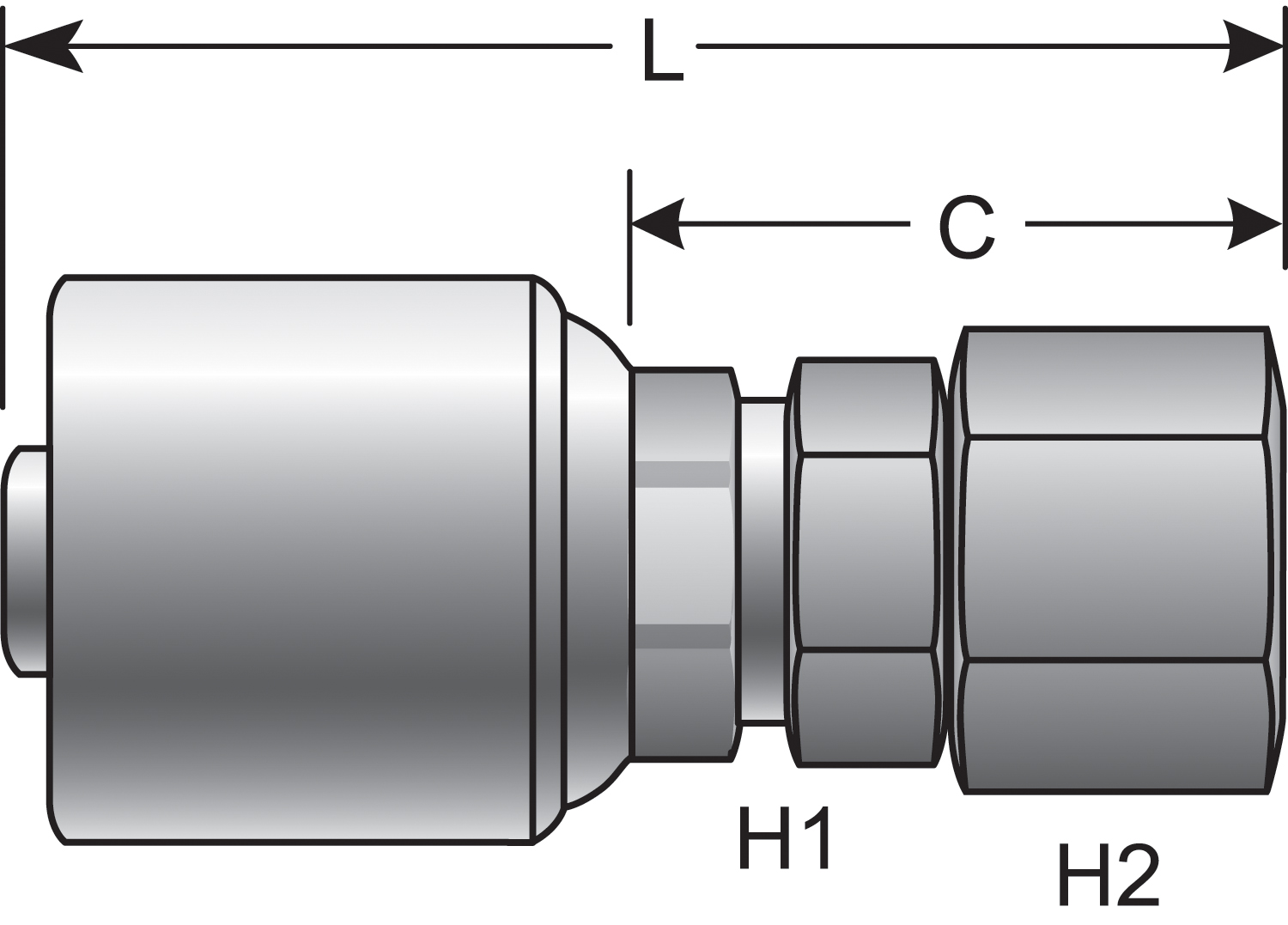

Length:3.06

Compatibility


Alternative Part Numbers

Dayco 108077
Dayco 151077
Aeroquip 1AA12FJ8
Aeroquip FJ9122-1208S
Caterpillar 124-1963
Goodyear 13400-0812
Goodyear 14400-0812
Goodyear B2-JCFX-0812
Goodyear T8-JCFX-0812
Kurt Hydraulics FJX-08-12
NAPA G25170-0812
Parker 10643-12-08
Parker 10643-12-8
Parker 106HY-12-8
Weatherhead 08U612
Weatherhead 08Z612
Weatherhead 151077
