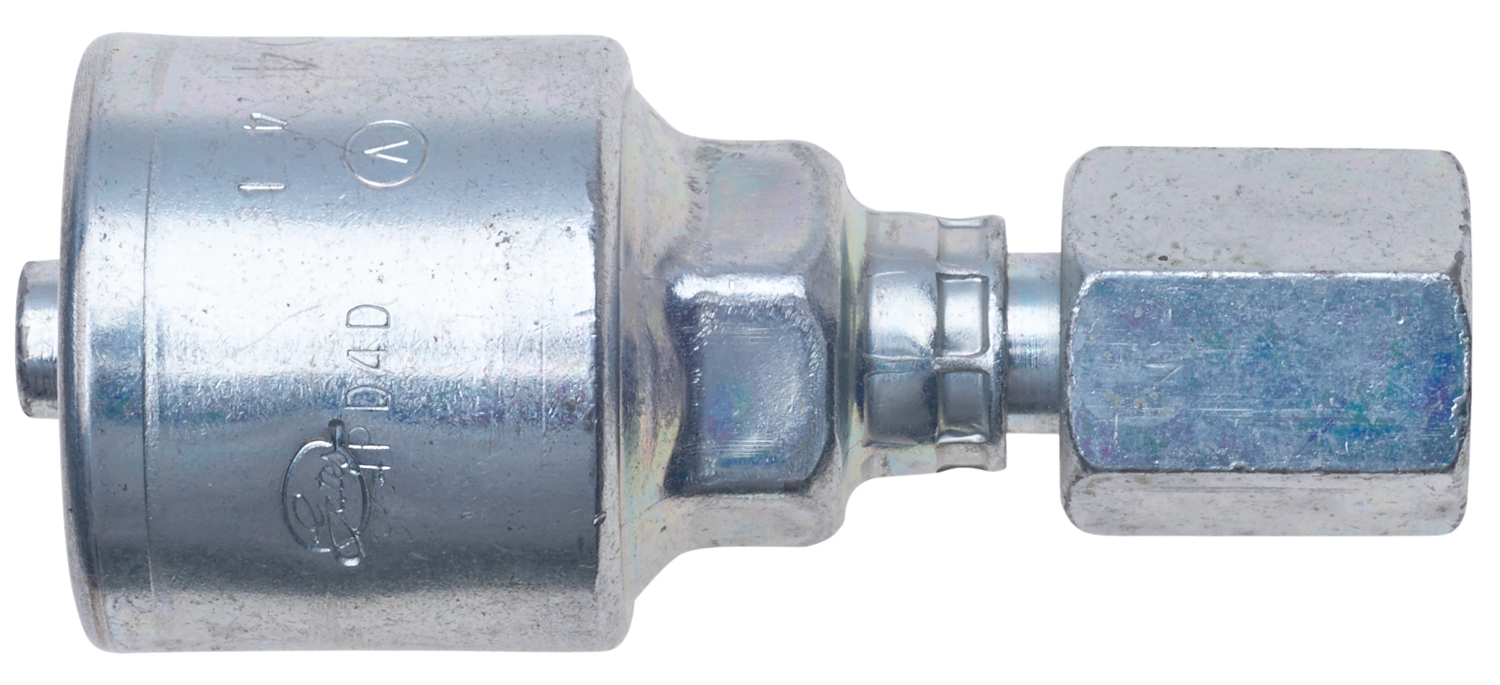

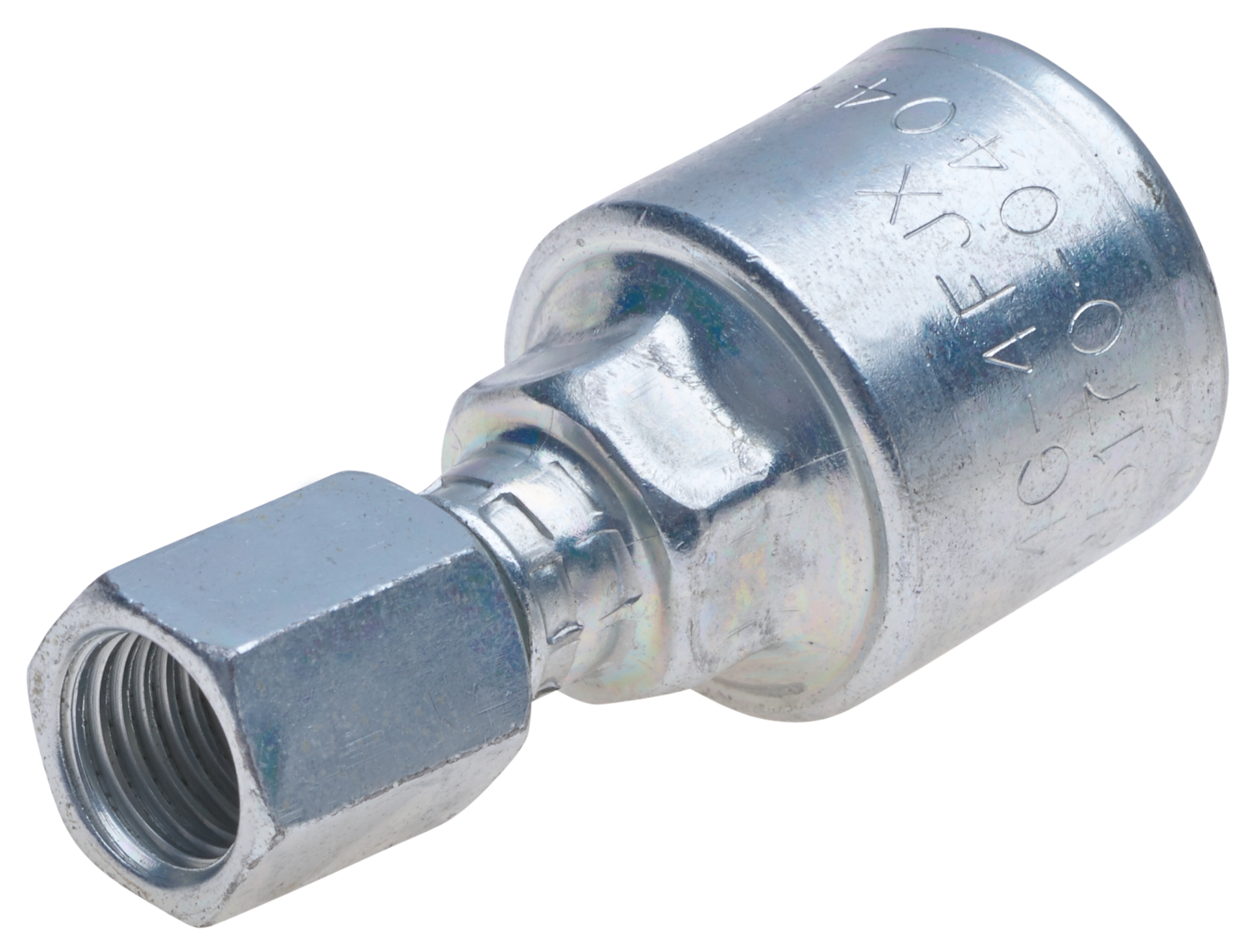

Gates Corporation Hydraulic Coupling / Adapter Part No: G25170-0808
$12.69
MegaCrimp
Female JIC 37 Flare Swivel (MegaCrimp)
Specifications
The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose.
Gender: Female
Swivel: Yes
Thread Size: 3/4-16
Seal Type: Mated Angle
Inside Diameter: .5

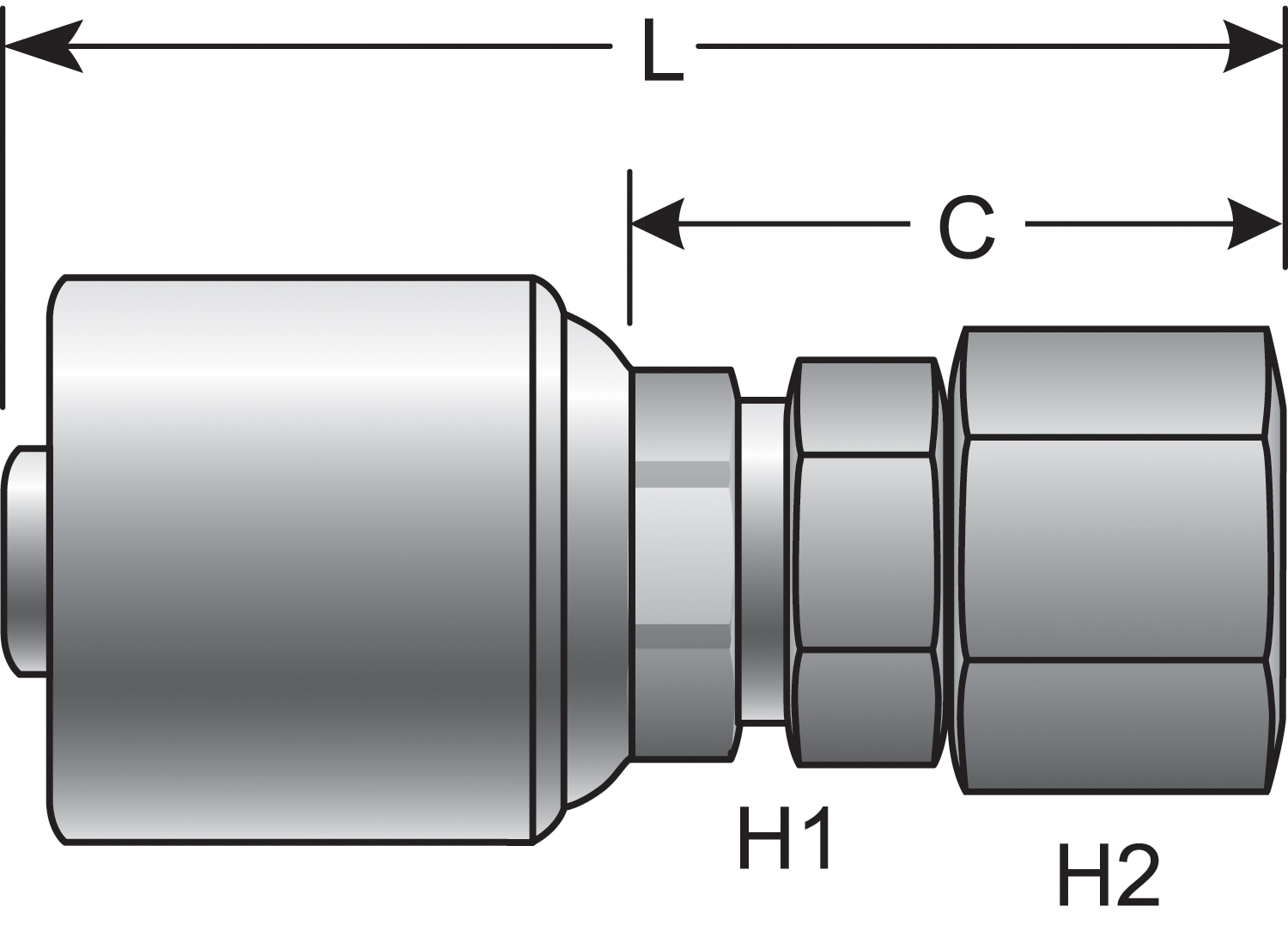

Length: 2.88
Swivel: Yes
Thread Size: 3/4-16
Seal Type: Mated Angle
Inside Diameter: .5
Length: 2.88
Weight
0.3700
Compatibility
Alternative Part Numbers
- OEM:
- <br />
- Aeroquip 1AA8FJ8
- Aeroquip 1GA8FJ8
- Dayco 108075
- Dayco 108075BK
- Dayco 108498
- Dayco 151075
- Gates 8G-8FJX
- Gates G25170-0808
- Goodyear 13400-0808
- Goodyear 14400-0808
- Goodyear 32400-0808
- Goodyear B2-JCFX-0808
- Goodyear T7-JCFX-0808
- Goodyear T8-JCFX-0808
- Hydraulink S05H-1208
- Kurt Hydraulics FJX-08-08
- NAPA G25170-0808
- Parker 10643-08-08
- Parker 10643-8-8
- Parker 106HY-8-8
- Weatherhead 08E608
- Weatherhead 08EE608
- Weatherhead 08S608
- Weatherhead 08U608
- Weatherhead 08Z608
- Weatherhead 33608E-608
- Weatherhead 33608E608
