Specifications

The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose.

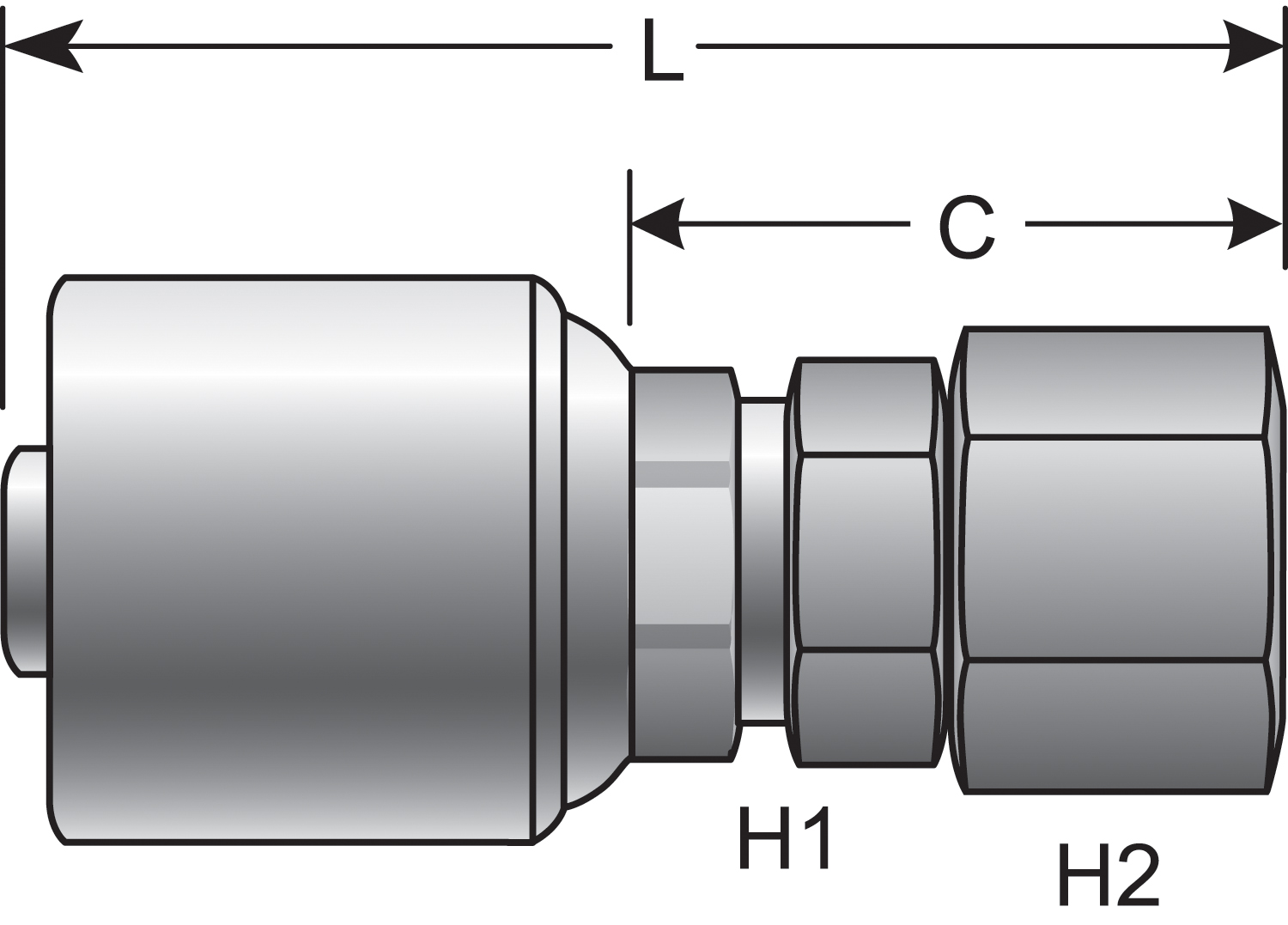

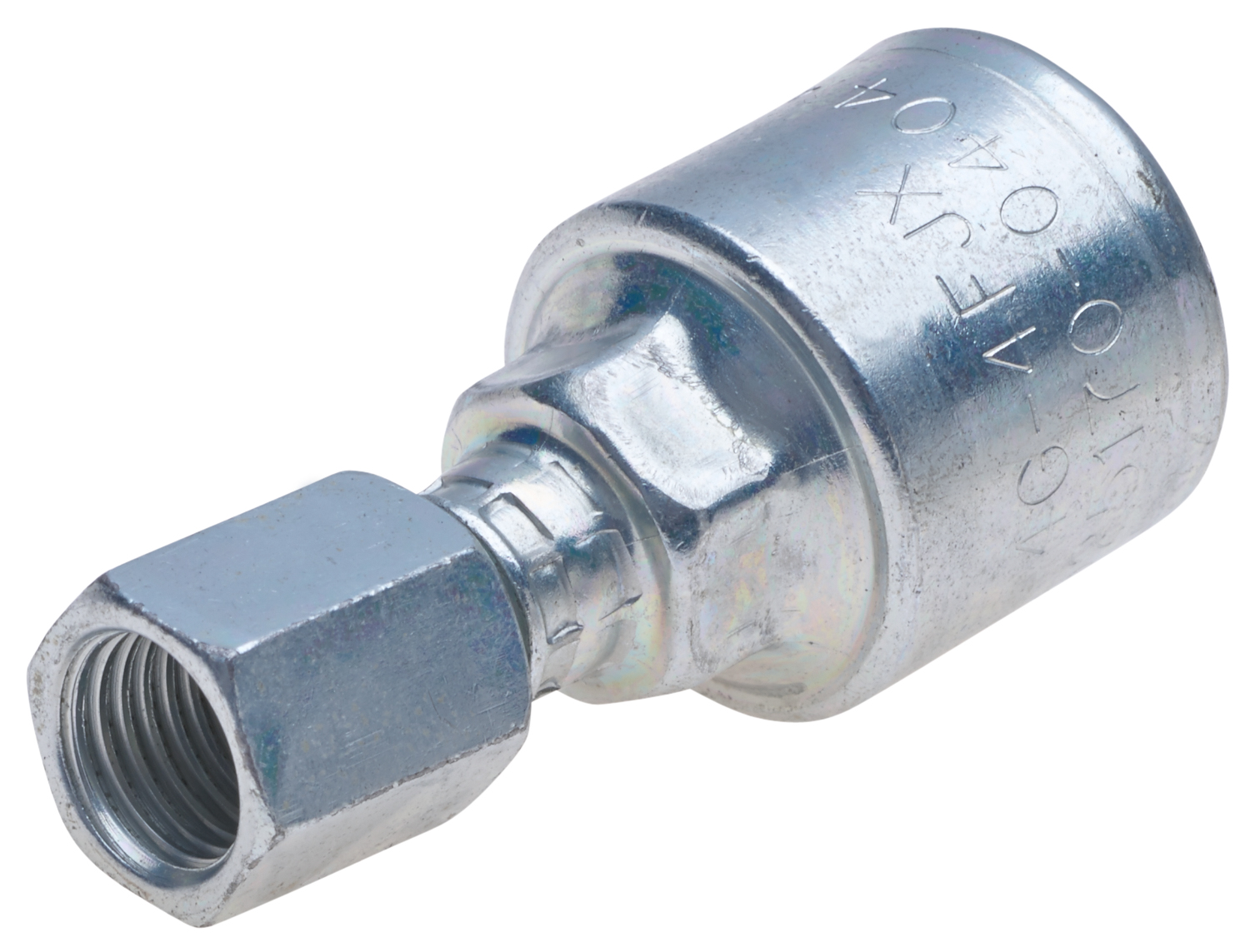

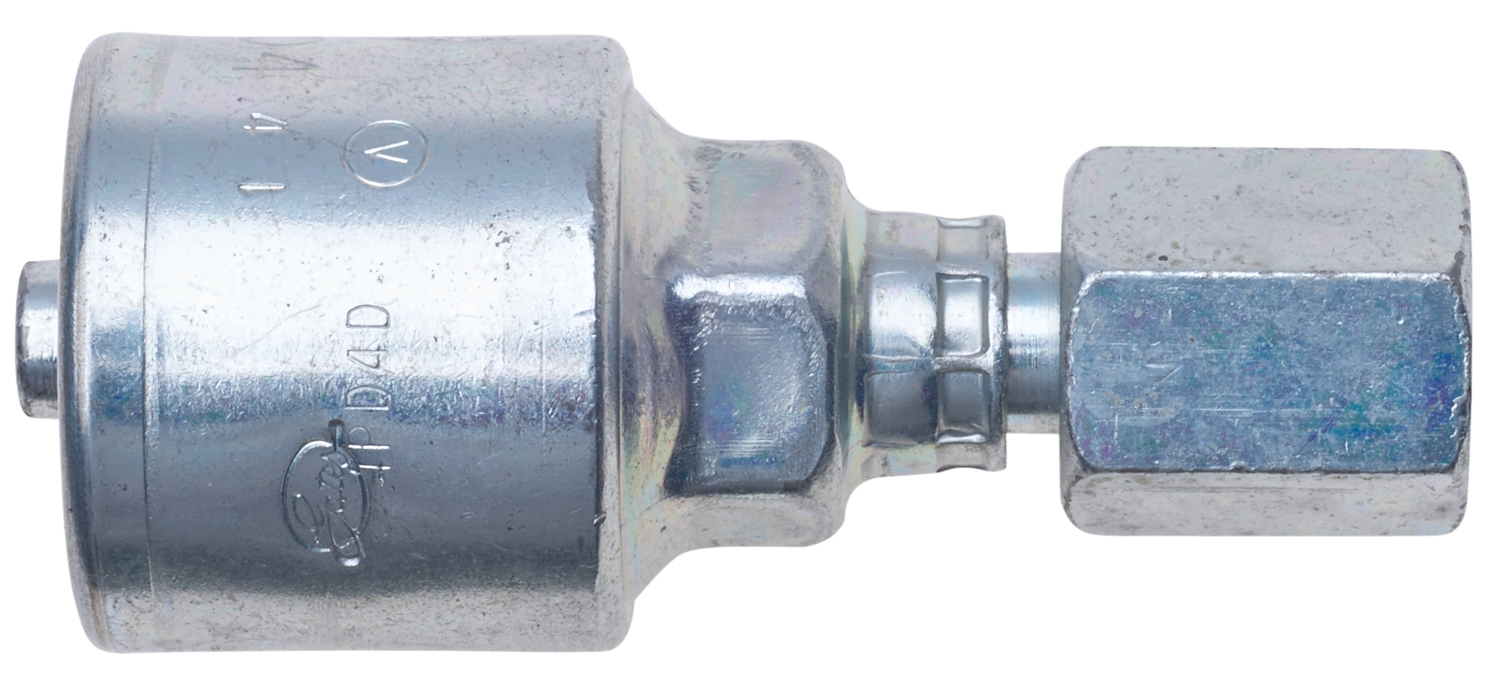

  • Female JIC 37 Flare Swivel (MegaCrimp)
Gender:Female
Swivel:Yes
Thread Size:9/16-18
Seal Type:Mated Angle
Inside Diameter:.5
Length:2.67
Weight
0.2800

Compatibility


Alternative Part Numbers

  • Aeroquip 1AA6FJ8
  • Caterpillar 124-1959
  • Dayco 08Z666
  • Dayco 100649
  • Dayco 151074
  • Goodyear 13400-0806
  • Goodyear 14400-0806
  • Goodyear B2-JCFX-0806
  • Goodyear B2JCFX0806
  • Kurt Hydraulics FJX-08-06
  • NAPA G25170-0806
  • Parker 10643-06-08
  • Parker 10643-6-8
  • Parker 106HY-6-8
  • Weatherhead 08U606
  • Weatherhead 08Z606
  • Weatherhead 08Z666
