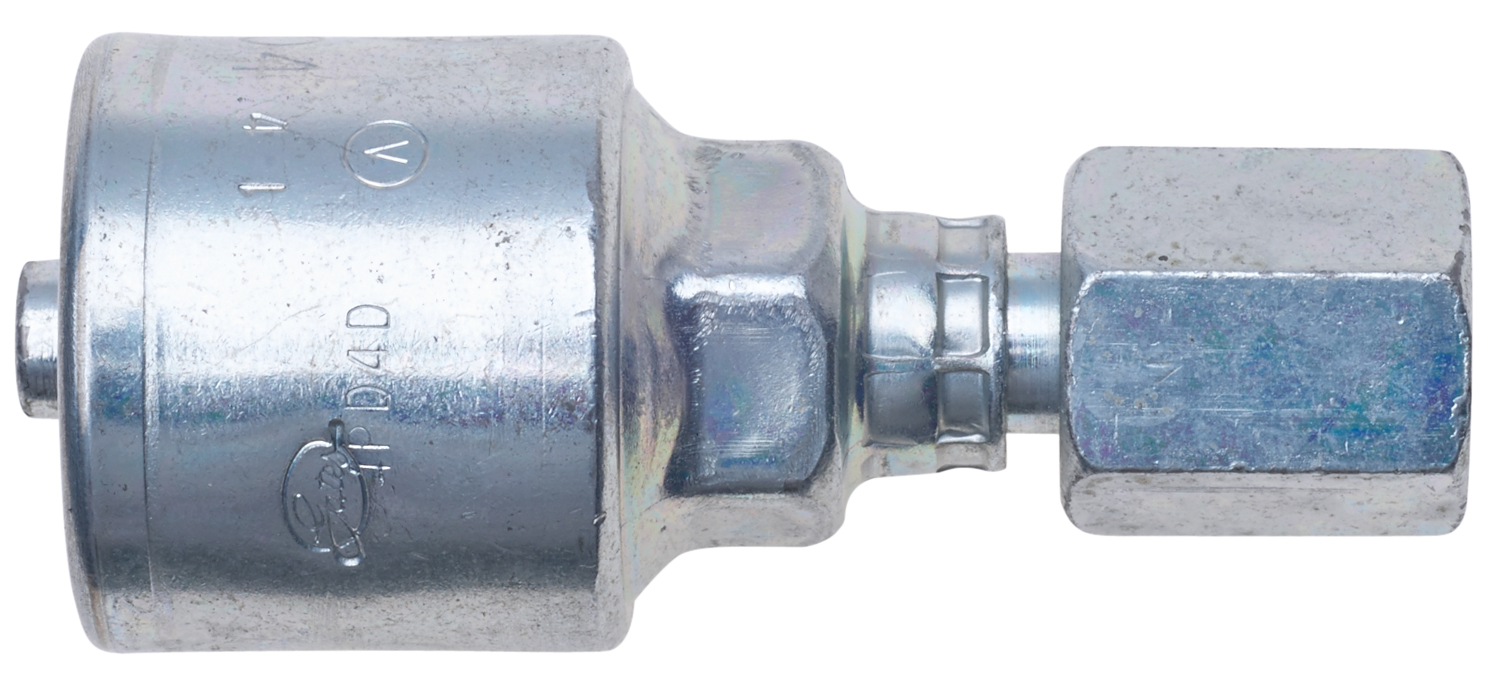

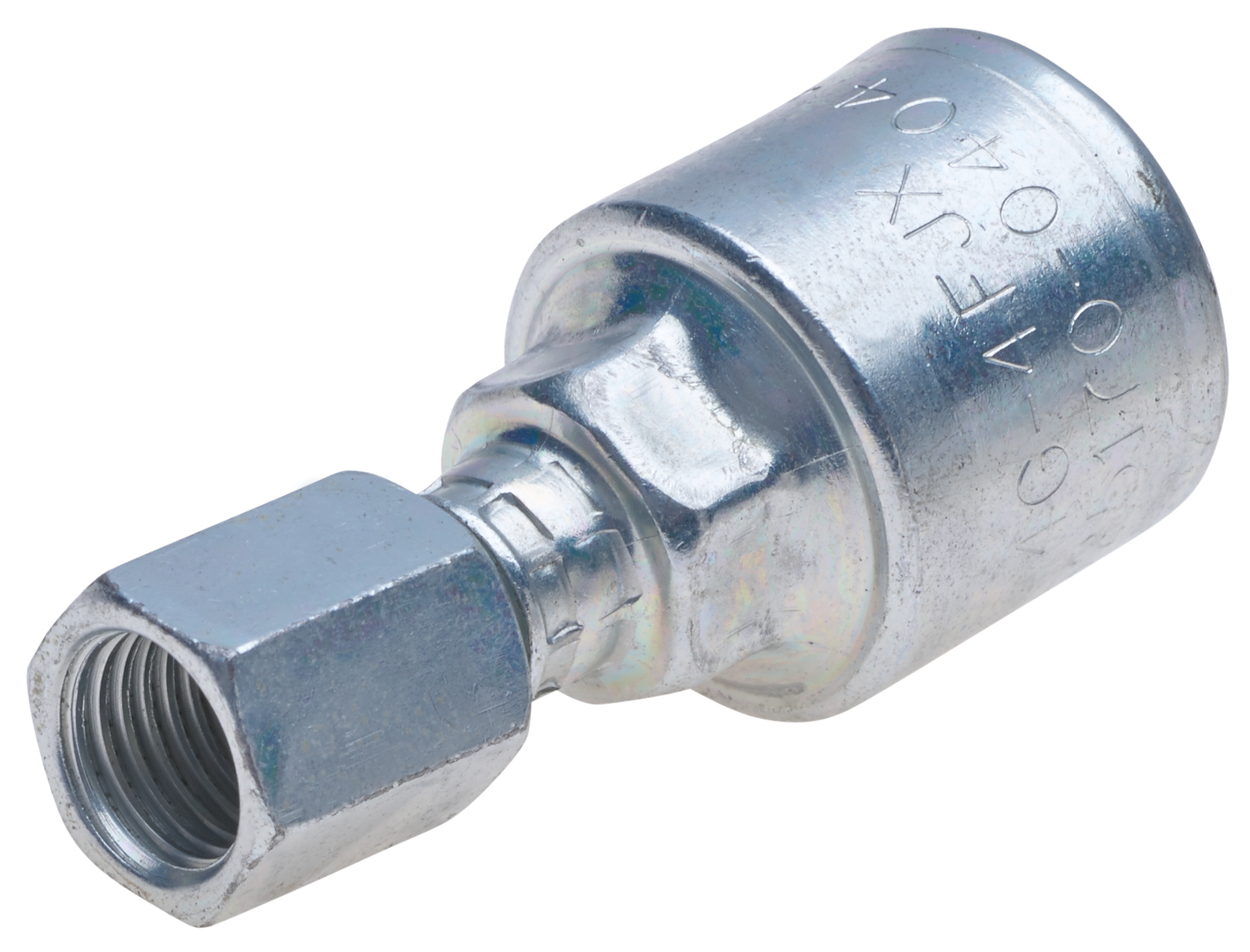

Hydraulic Coupling / Adapter - G25170-0404

Hydraulic Coupling / Adapter

Female JIC 37 Flare Swivel (MegaCrimp)

Gates Corporation MegaCrimp Part No: G25170-0404

$8.88

Specifications

The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose.

Weight

0.1400

Gender: Female
Swivel: Yes
Thread Size: 7/16-20
Seal Type: Mated Angle
Inside Diameter: .25

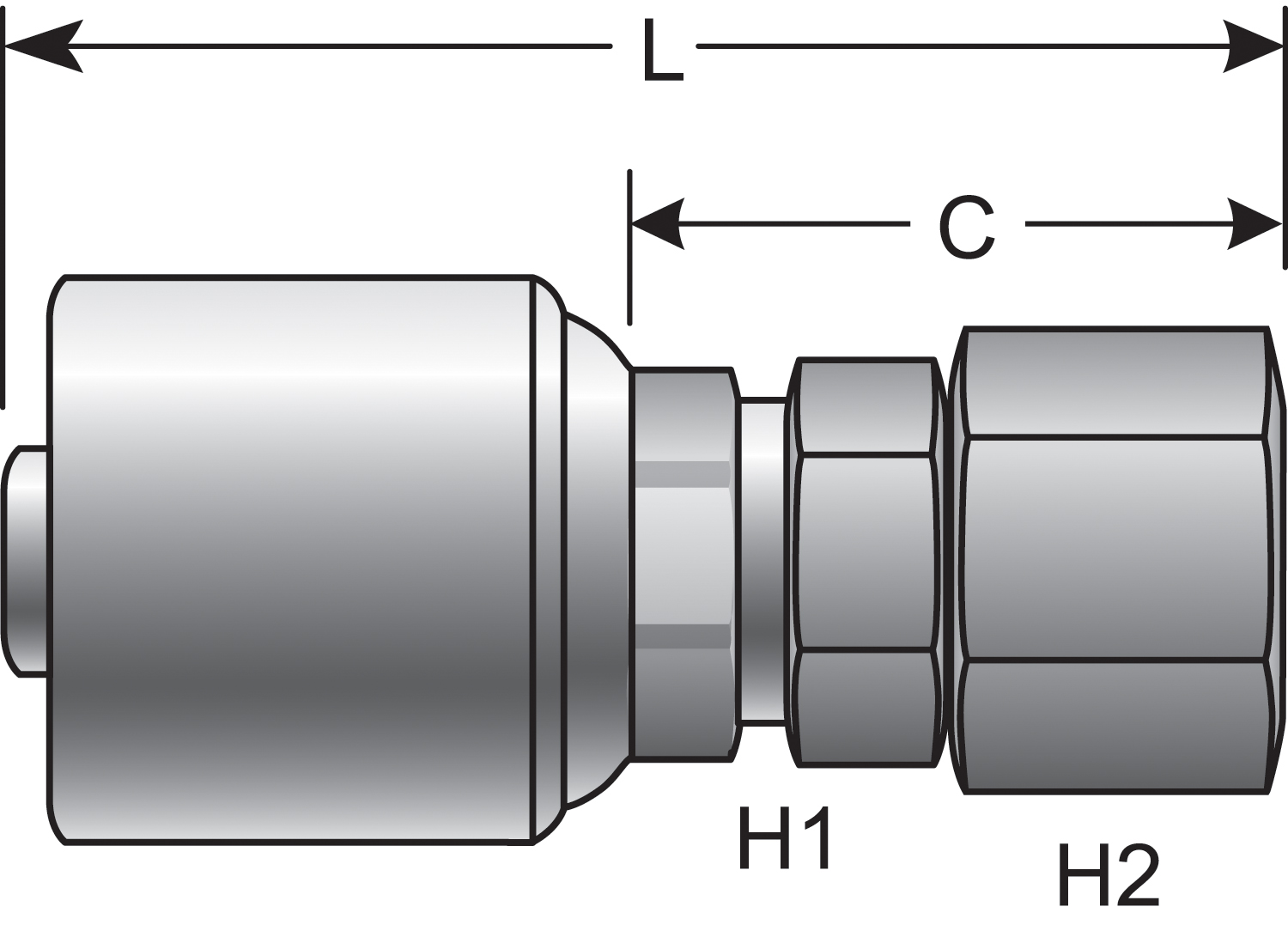

Length: 2.2

Compatibility

Alternative Part Numbers

OEM: Gates G25170-0404
Gates 4G-4FJX

Aeroquip
1AA4FJ4
Aeroquip
1GA4FJ4
Dayco
100640
Dayco
108065
Dayco
108065BK
Dayco
108490
Dayco
151065
Goodyear
13400-0404
Goodyear
14400-0404
Goodyear
36400-0404
Goodyear
B2-JCFX-0404
Goodyear
T7-JCFX-0404
Goodyear
T8-JCFX-0404
Hydraulink
S05H-0704
Kurt Hydraulics
FJX-04-04
NAPA
G25170-0404
Parker
10643-04-04
Parker
10643-4-4
Parker
106HY-4-4
Weatherhead
04E604
Weatherhead
04EE604
Weatherhead
04M604
Weatherhead
04S604
Weatherhead
04U604
Weatherhead
04Z604
Weatherhead
33604E-604
Weatherhead
33604E-664
Weatherhead
33604E604
Weatherhead
33604E664
