Specifications

The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose.

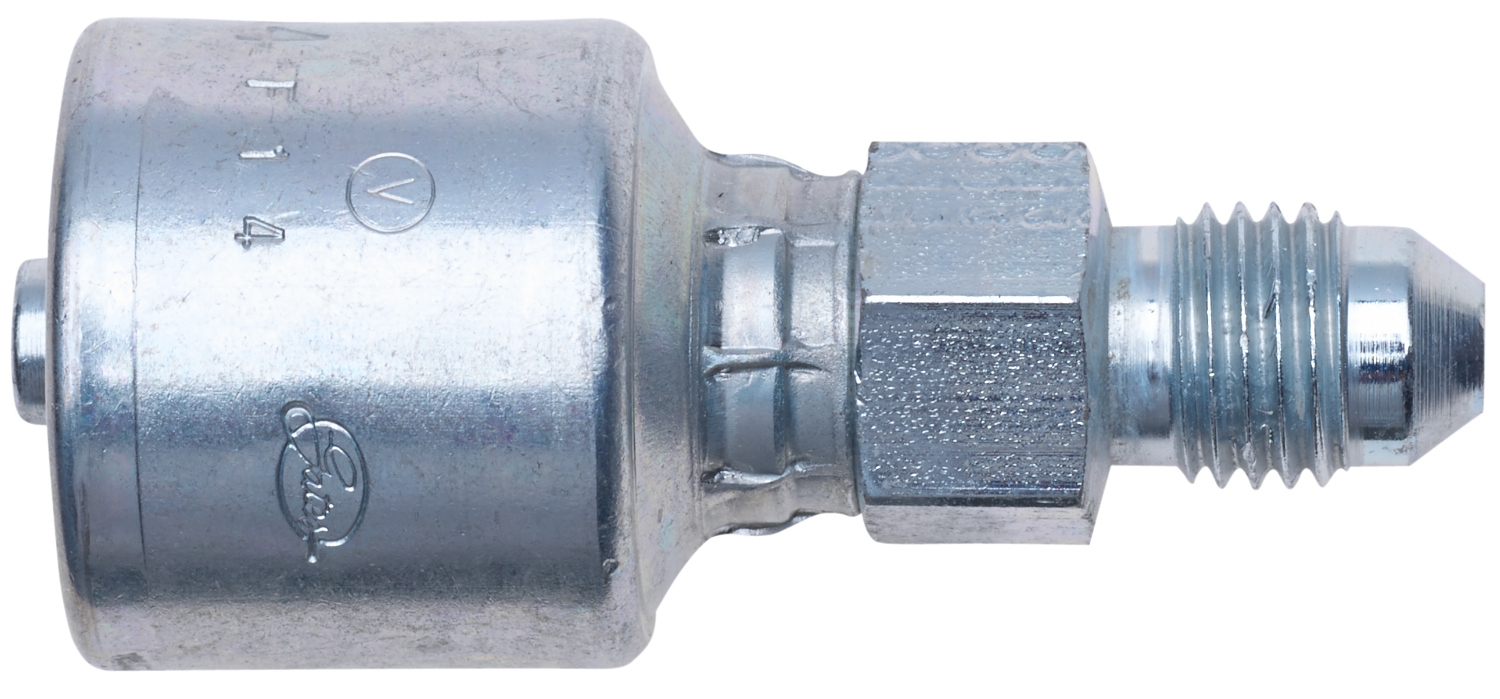

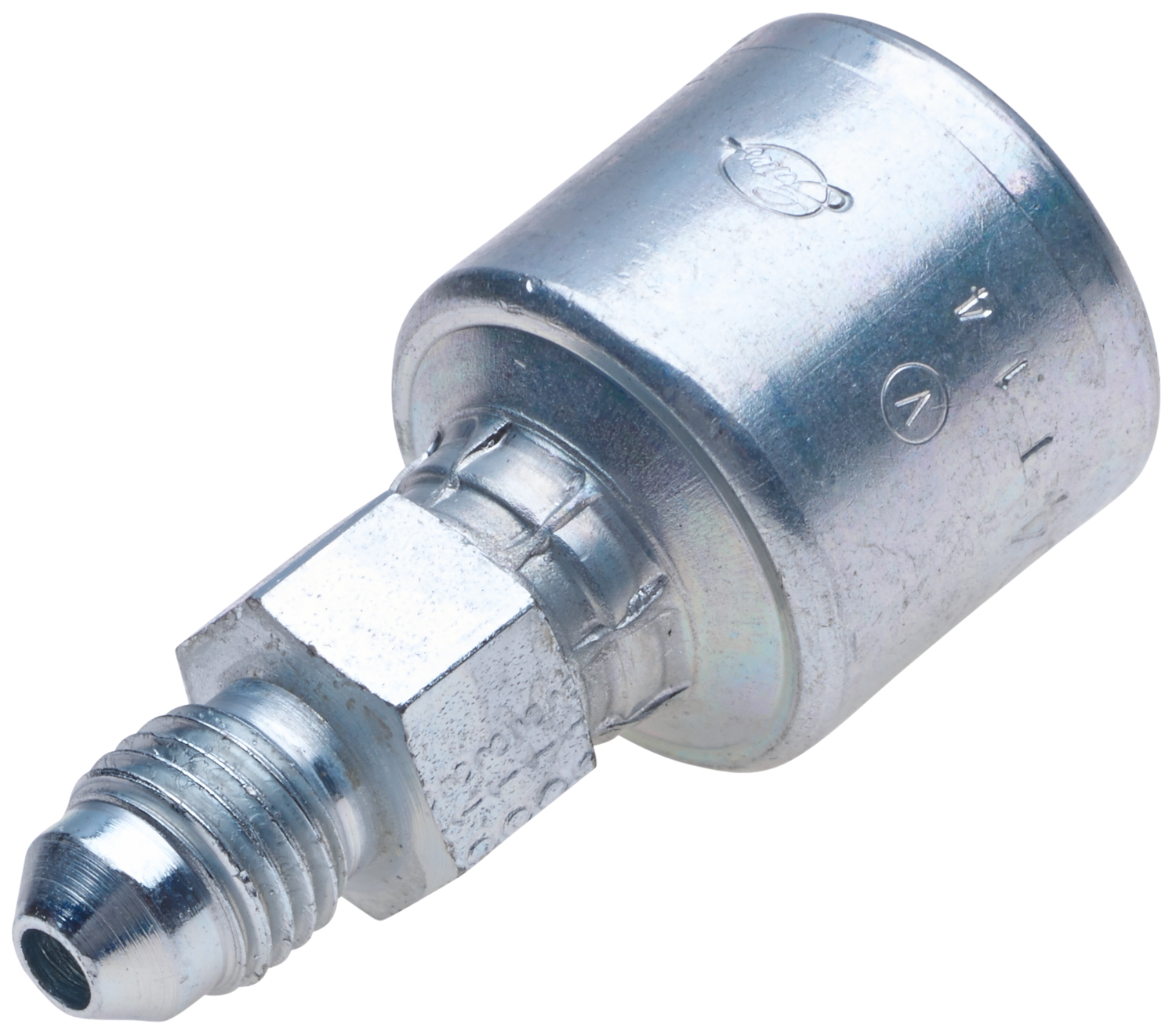

  • Male JIC 37 Flare (MegaCrimp)
Gender:Male
Swivel:No
Thread Size:1 5/16-12
Seal Type:Mated Angle
Inside Diameter:1

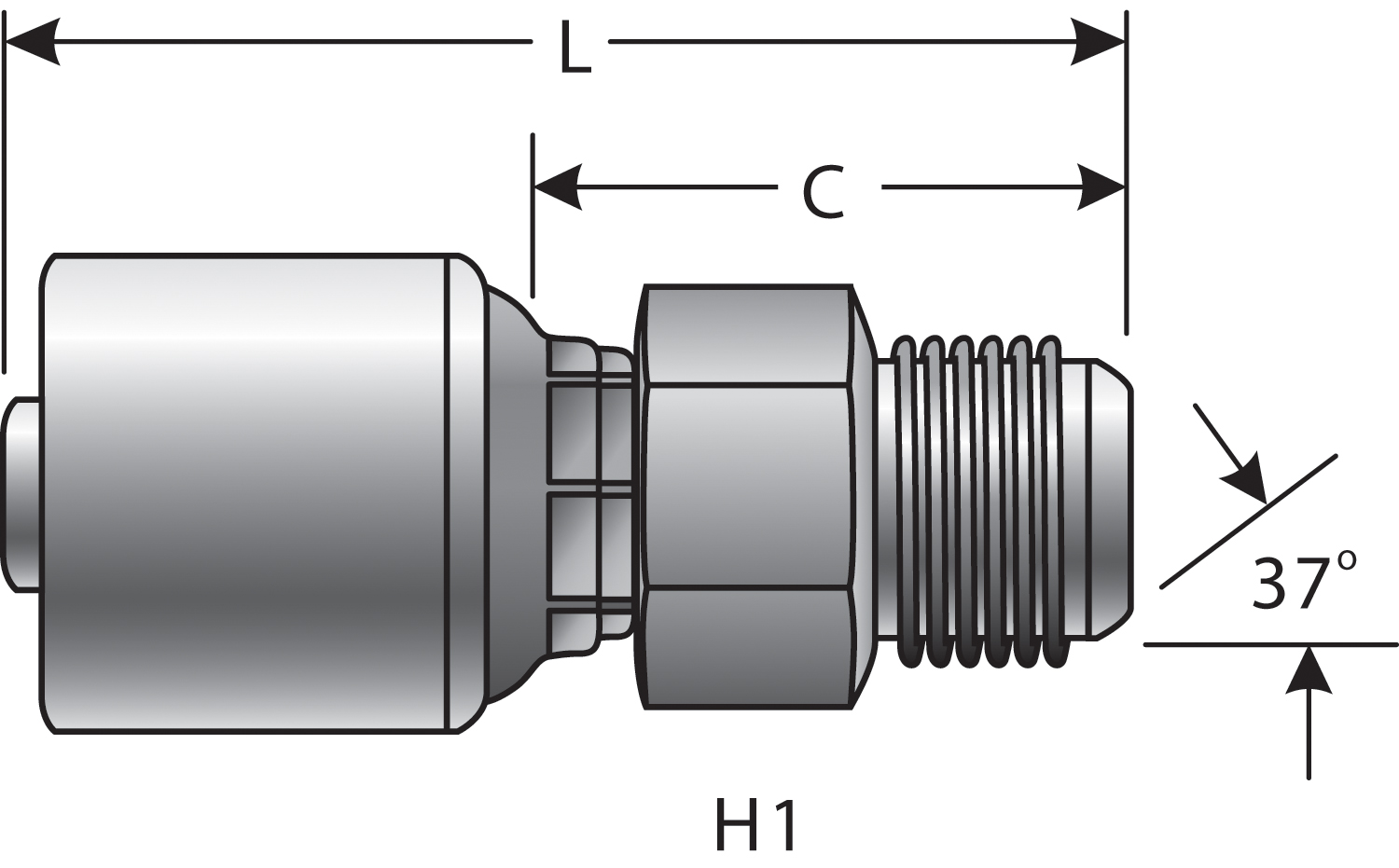

Length:4.11
Weight
1.0600

Compatibility


Alternative Part Numbers

  • Aeroquip 1AA16MJ16
  • Aeroquip FJ9125-1616S
  • Caterpillar 124-1949
  • Dayco 108233
  • Goodyear 14450-1616
  • Goodyear B2-JCM-1616
  • Goodyear T7-JCM-1616
  • Hydraulink 108233
  • Hydraulink S18-2116
  • Kurt Hydraulics MJ-16-16
  • NAPA G25165-1616
  • Parker 10343-16-16
  • Parker 103HY-16-16
  • Weatherhead 16E516
  • Weatherhead 16EE516
  • Weatherhead 16U516
  • Weatherhead 16Z516
