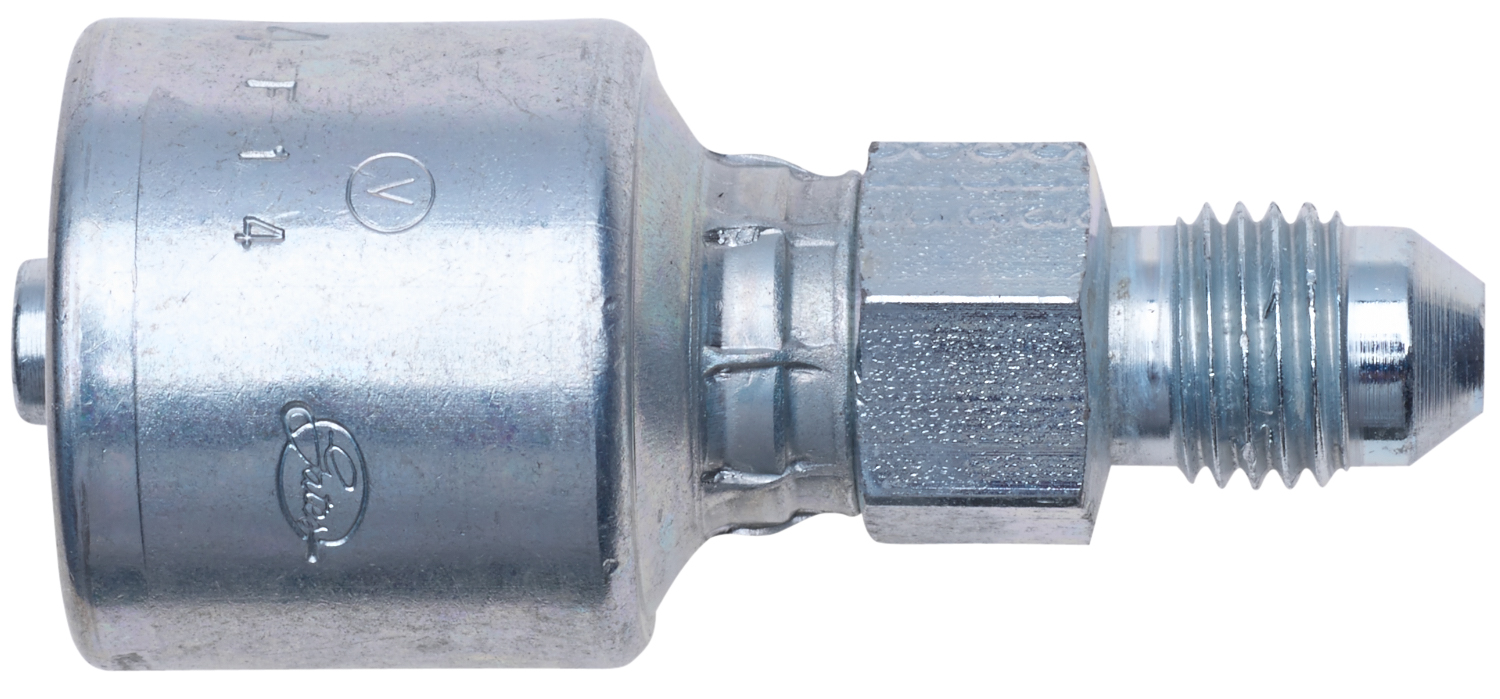

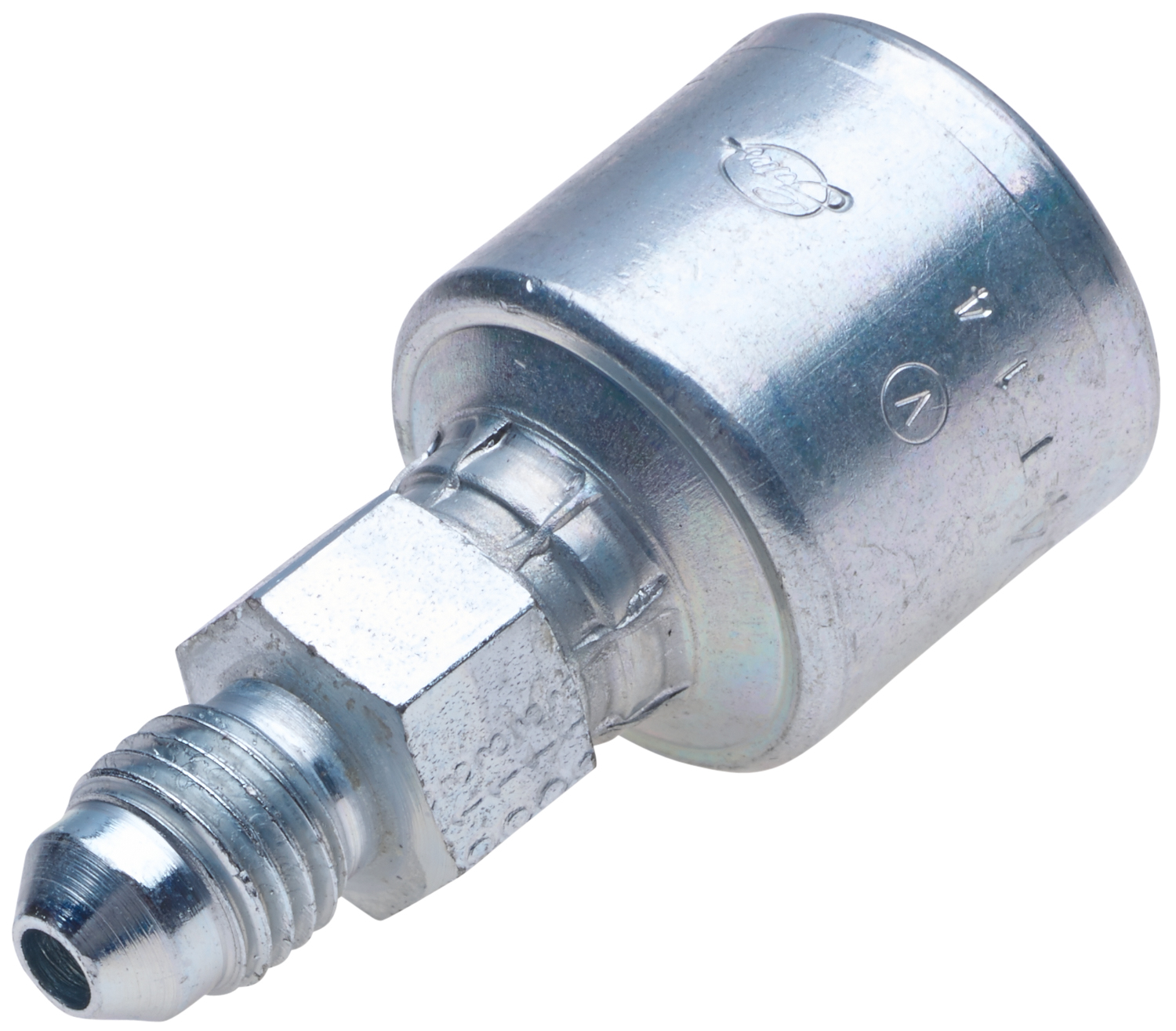

Hydraulic Coupling / Adapter - G25165-0810

Hydraulic Coupling / Adapter

Gates Hydraulic Coupling / Adapter G25165-0810 is specifically designed to provide excellent performance in a variety of hydraulic applications. This hydraulic coupling ensures a strong, leak-free connection, which is crucial for maintaining fluid flow in high-pressure systems. Built with high-quality materials, this hydraulic adapter is engineered to handle extreme operating conditions, offering lasting durability. It is ideal for use in industrial environments where reliability and efficiency are essential, helping reduce the risk of costly downtime. Whether installing a new hydraulic system or replacing an existing adapter, this Gates hydraulic adapter is a perfect choice for improving performance. Its user-friendly installation process makes it a simple and quick solution for any maintenance or system upgrades.

Gates Corporation MegaCrimp Part No: G25165-0810

$13.31

Specifications

The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose.

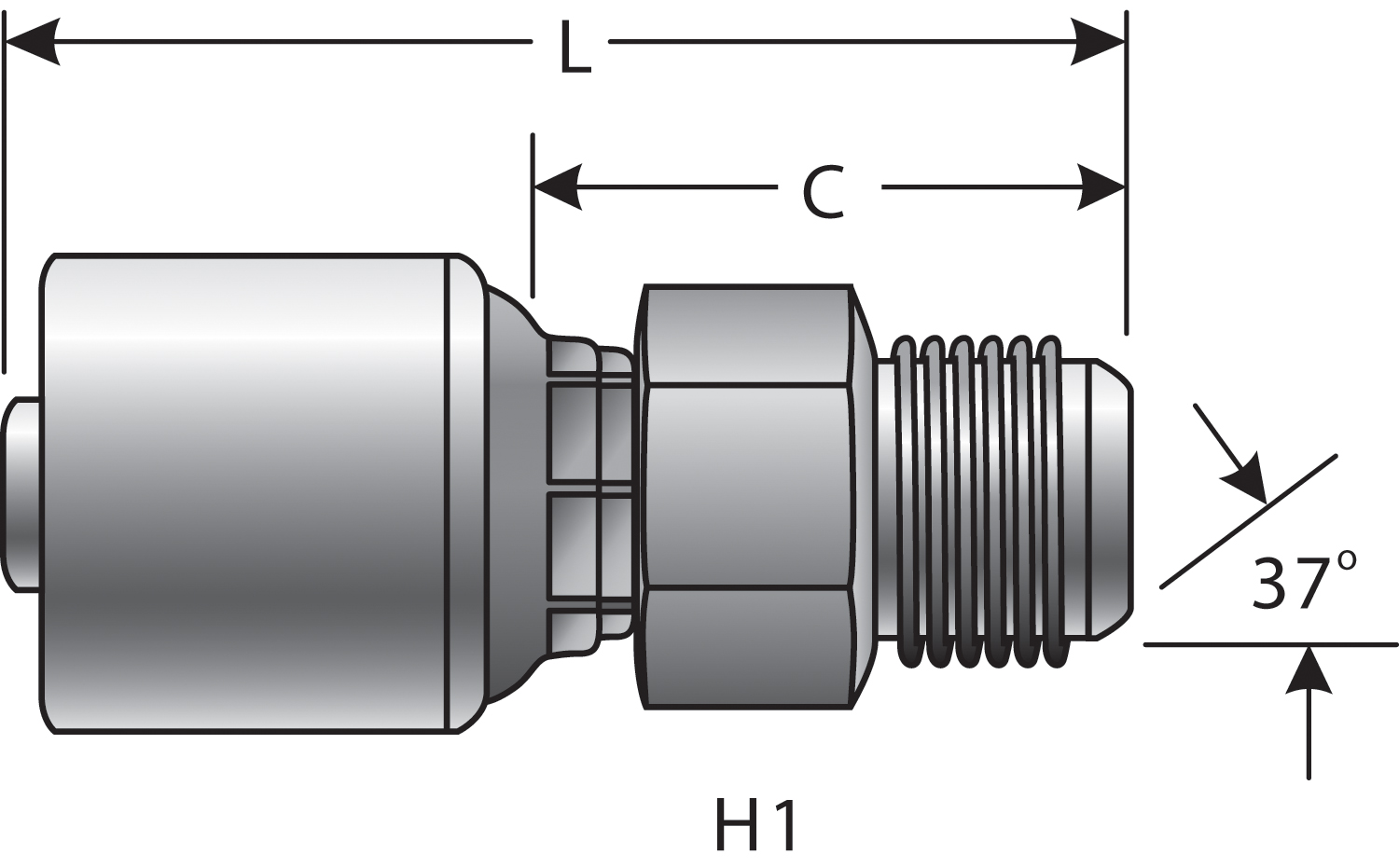

Male JIC 37 Flare (MegaCrimp)

Weight

0.3200

Gender:Male
Swivel:No
Thread Size:7/8-14
Seal Type:Mated Angle
Inside Diameter:.5
Length:2.91

Compatibility

Alternative Part Numbers

Dayco 108219
Dayco 108219BK
Aeroquip 1AA10MJ8
Aeroquip FJ9125-1008S
Caterpillar 124-1944
Goodyear 13450-0810
Goodyear 14450-0810
Goodyear B2-JCM-0810
Goodyear T7-JCM-0810
Goodyear T8-JCM-0810
Hydraulink S18-1408
Kurt Hydraulics MJ-08-10
NAPA G25165-0810
Parker 10343-10-08
Parker 10343-10-8
Parker 103HY-10-8
Weatherhead 08E510
Weatherhead 08EE510
Weatherhead 08U510
Weatherhead 08Z510
Weatherhead 33608E510
Weatherhead 33608E-510
Caterpillar 10343-10-08
