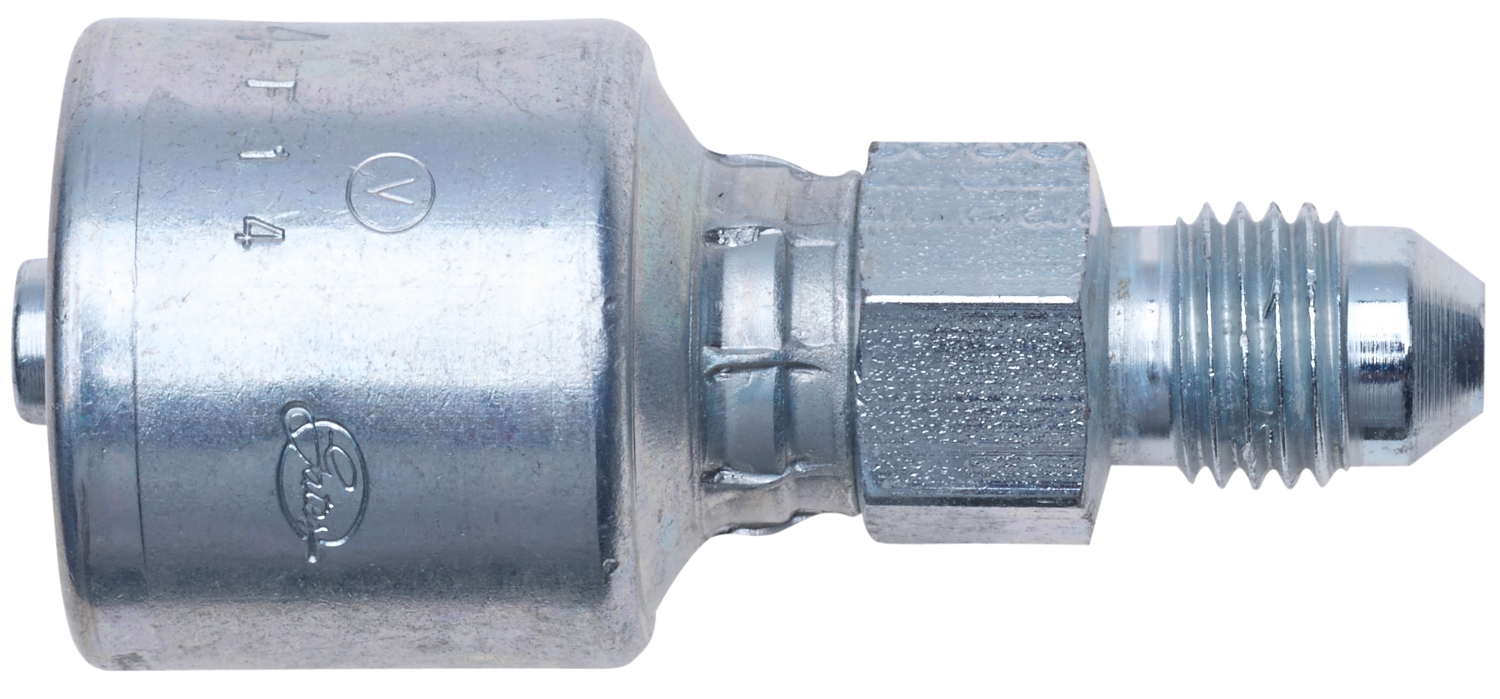

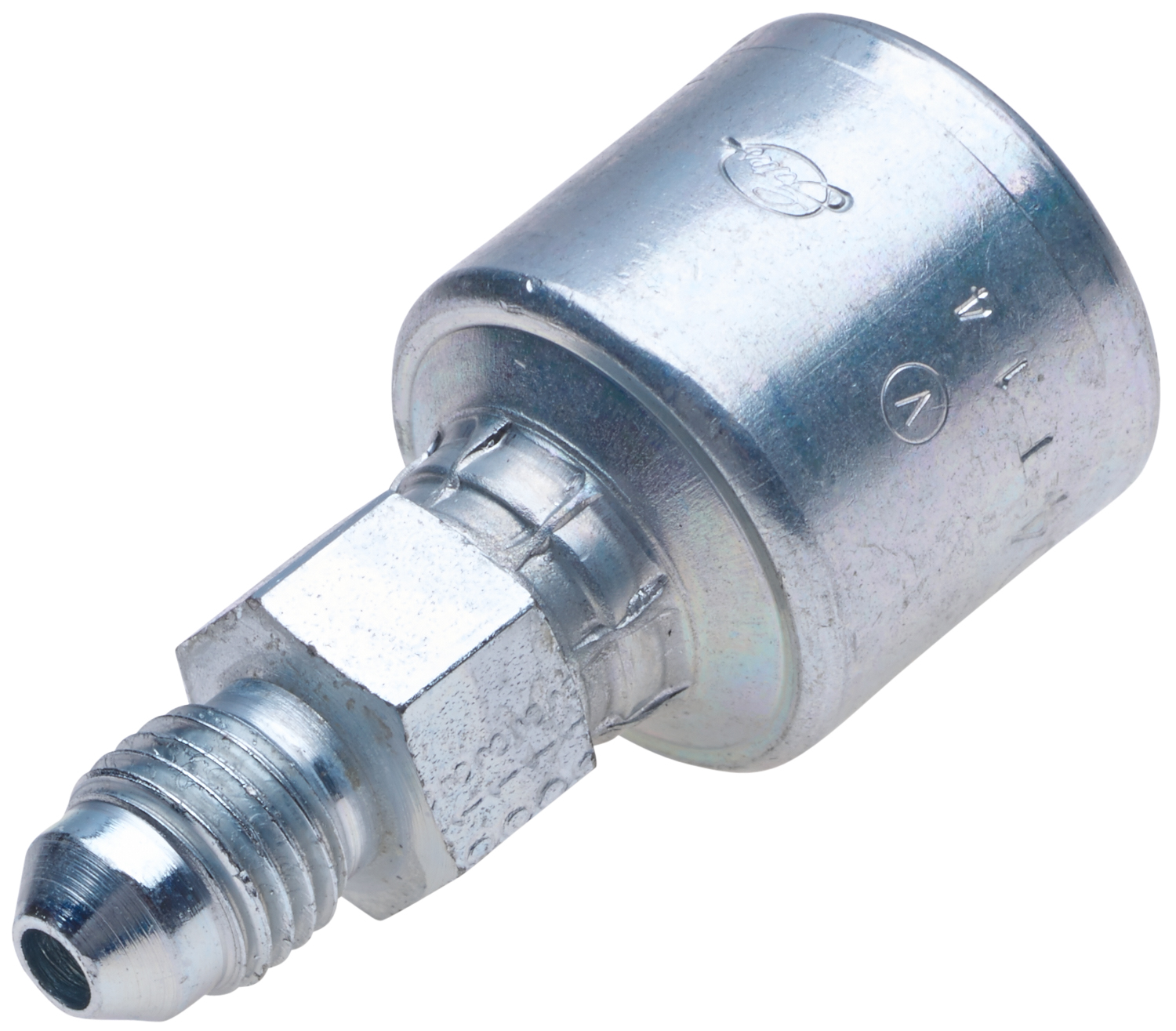

Hydraulic Coupling / Adapter - G25165-0608

Hydraulic Coupling / Adapter

Gates Hydraulic Coupling / Adapter G25165-0608 is designed to offer excellent performance in demanding hydraulic systems. This hydraulic coupling ensures a strong, leak-free connection, maintaining optimal fluid flow even under high-pressure conditions. Engineered to withstand extreme environments, the hydraulic adapter provides long-lasting durability, reducing the chances of system failures. Its robust construction makes it ideal for a wide range of industrial applications, delivering reliable performance over time. When replacing or assembling a new hydraulic system, this Gates hydraulic adapter offers a simple yet effective solution. Easy to install, it minimizes downtime and boosts overall system efficiency, making it an essential component for various applications.

Gates Corporation MegaCrimp Part No: G25165-0608

$11.08

Specifications

The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose.

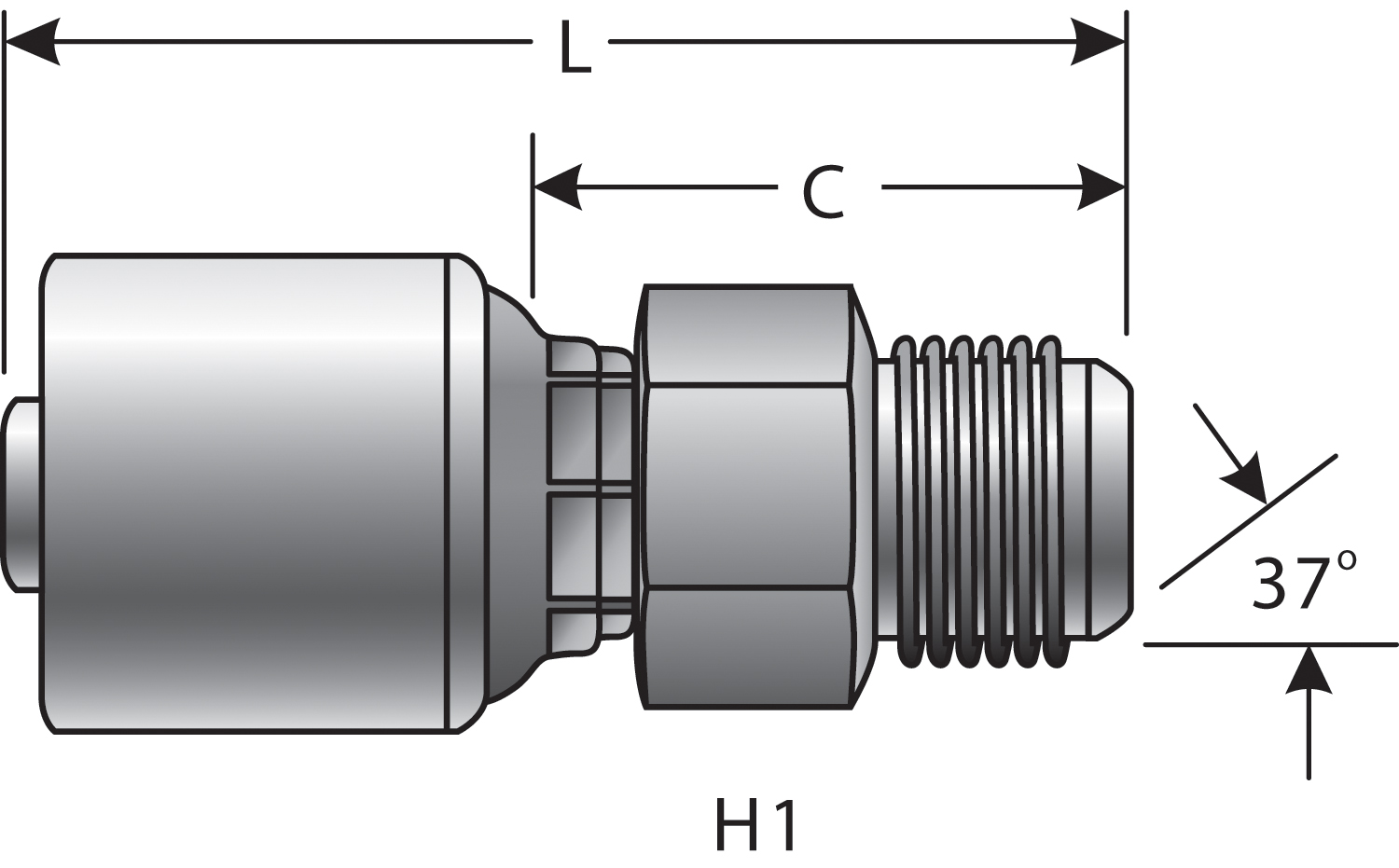

Male JIC 37 Flare (MegaCrimp)

Weight

0.2000

Gender:Male
Swivel:No
Thread Size:3/4-16
Seal Type:Mated Angle
Inside Diameter:.375
Length:2.48

Compatibility

Alternative Part Numbers

Dayco 108216
Dayco 108217
Dayco 151216
Aeroquip 1AA8MJ6
Aeroquip FJ9125-0806S
Caterpillar 124-1941
Goodyear 13450-0608
Goodyear 14450-0608
Goodyear B2-JCM-0608
Goodyear T8-JCM-0608
Kurt Hydraulics MJ-06-08
NAPA G25165-0608
Parker 10343-08-06
Parker 10343-8-6
Parker 103HY-8-6
Weatherhead 06E508
Weatherhead 06EE508
Weatherhead 06U508
Weatherhead 06Z508
Weatherhead 33606E508
Weatherhead 33606E-508
Weatherhead 33608E508
Weatherhead 33608E-508
Aeroquip 108216
