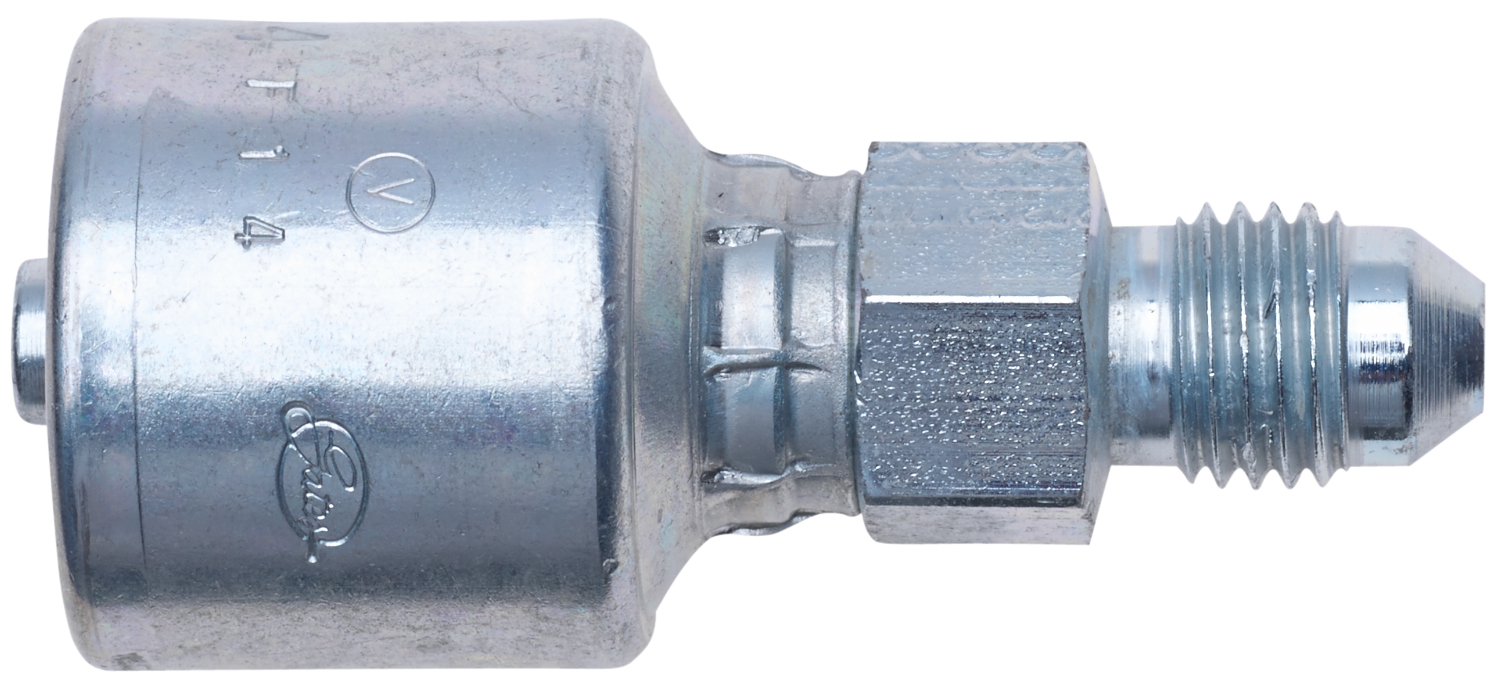

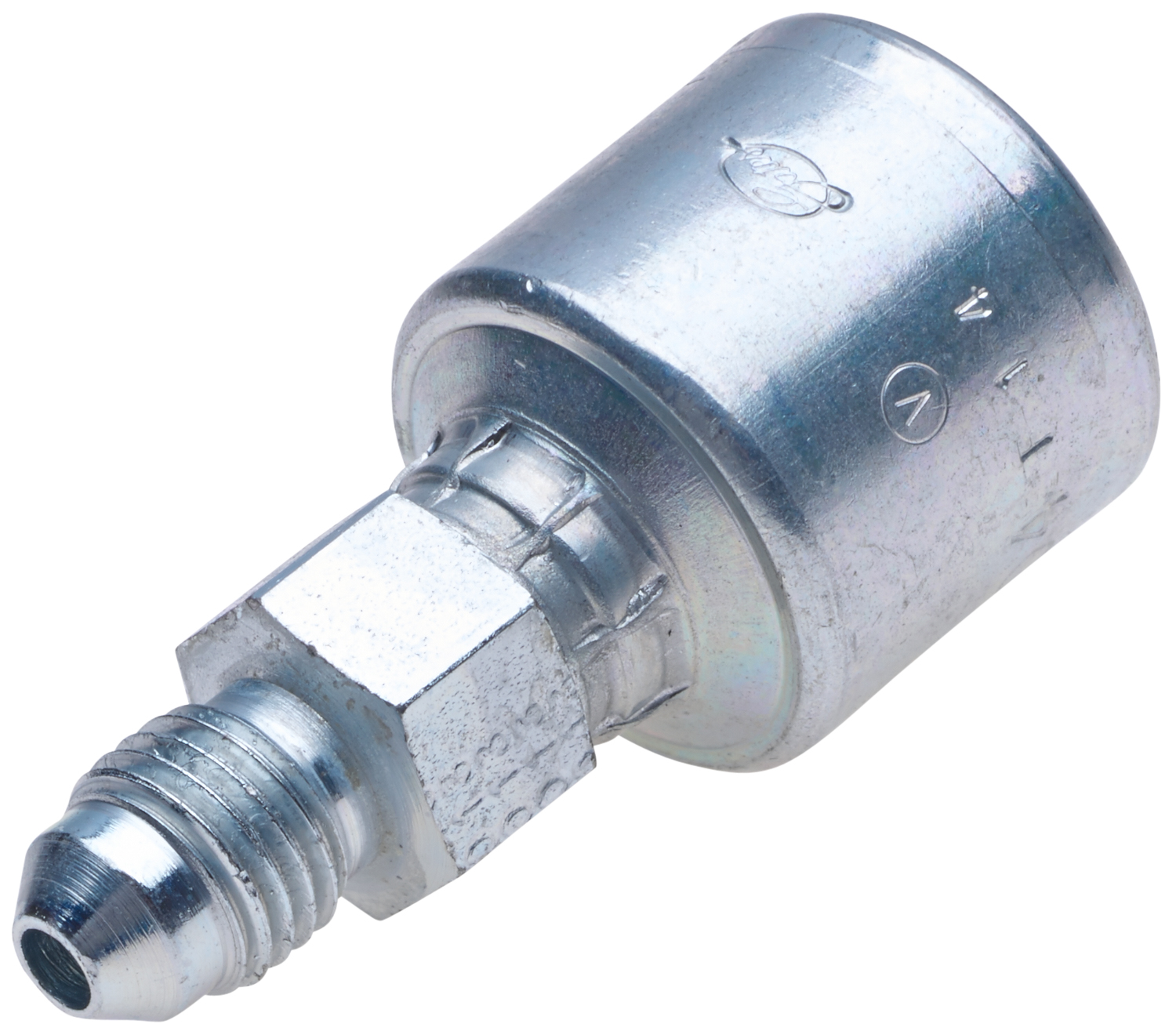

Hydraulic Coupling / Adapter - G25165-0606

Gates Corporation Hydraulic Coupling / Adapter Part No: G25165-0606

$11.22

MegaCrimp

Gates Hydraulic Coupling / Adapter G25165-0606 is built to deliver exceptional performance in hydraulic systems, ensuring a reliable and secure connection. This hydraulic adapter is designed for use in a variety of industrial applications, offering both durability and efficiency. The hydraulic coupling provides a leak-proof seal, allowing for smooth fluid transfer even under high pressure. Whether you're replacing an old part or enhancing your current setup, this hydraulic adapter offers long-lasting reliability. For top-tier performance and dependability, the Gates Hydraulic Coupling / Adapter G25165-0606 is an ideal choice for any hydraulic system.

Specifications

The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose.

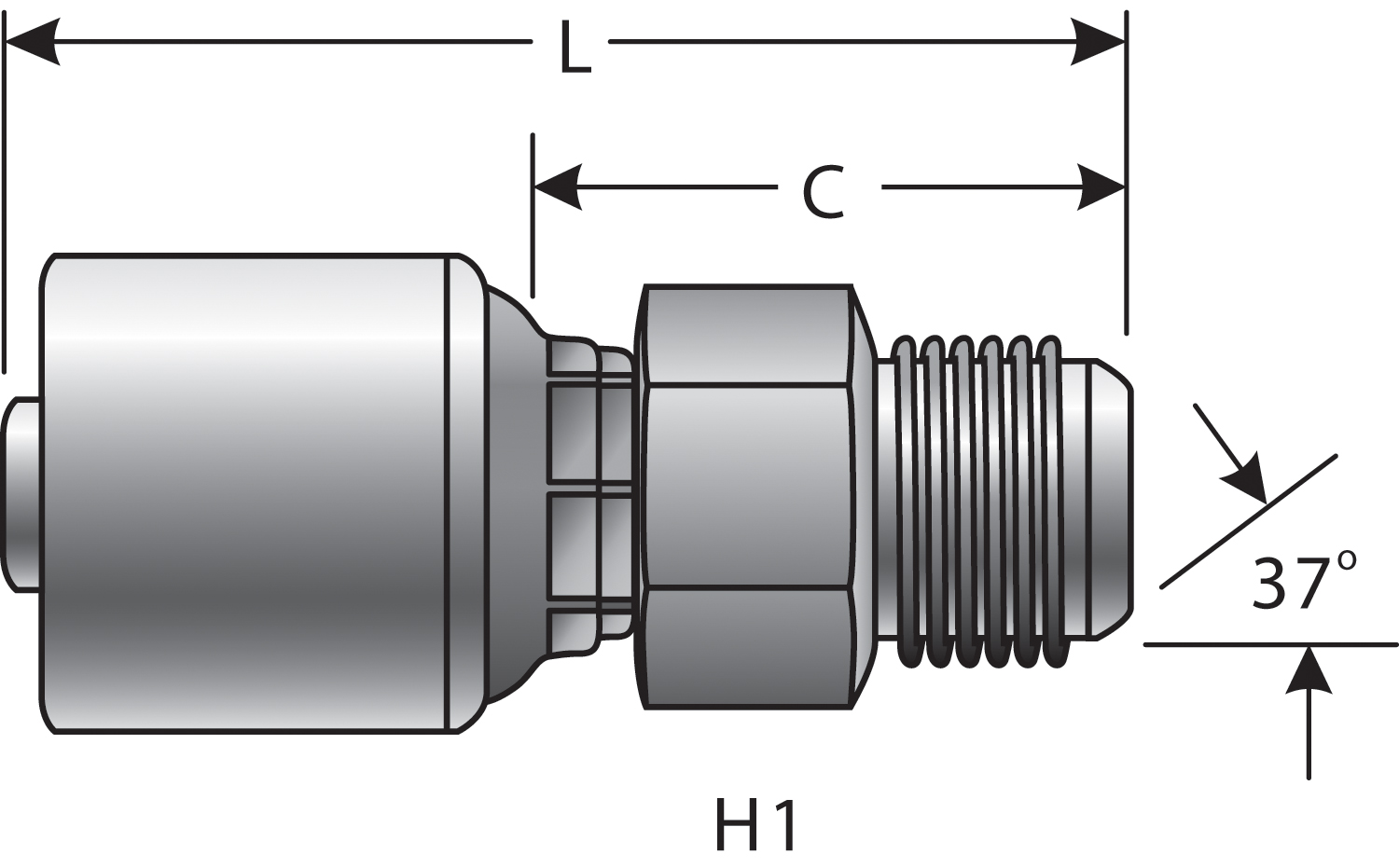

Male JIC 37 Flare (MegaCrimp)

Gender:Male
Swivel:No
Thread Size:9/16-18
Seal Type:Mated Angle
Inside Diameter:.375
Length:2.3

Weight

0.1500

Compatibility

General applications: Designed for hydraulic systems in heavy-duty trucks, construction equipment, and industrial machinery.

Alternative Part Numbers

OEM:
<br />
06E506
06EE506
06U506
06Z506
10343-06-06
10343-6-6
103HY-6-6
108215
124-1940
13450-0606
14450-0606
151215
1AA6MJ6
33606E-506
33606E506
Aeroquip
Aeroquip
B2-JCM-0606
Caterpillar
Caterpillar
Dayco
Dayco
FJ9125-0606S
G25165-0606
Gates 6G-6MJ
Gates G25165-0606
Goodyear
Goodyear
Goodyear
Goodyear
Hydraulink
Kurt Hydraulics
MJ-06-06
NAPA
Parker
Parker
Parker
S18-0906
T8-JCM-0606
T8-JCM-0606
Weatherhead
Weatherhead
Weatherhead
Weatherhead
Weatherhead
Weatherhead
