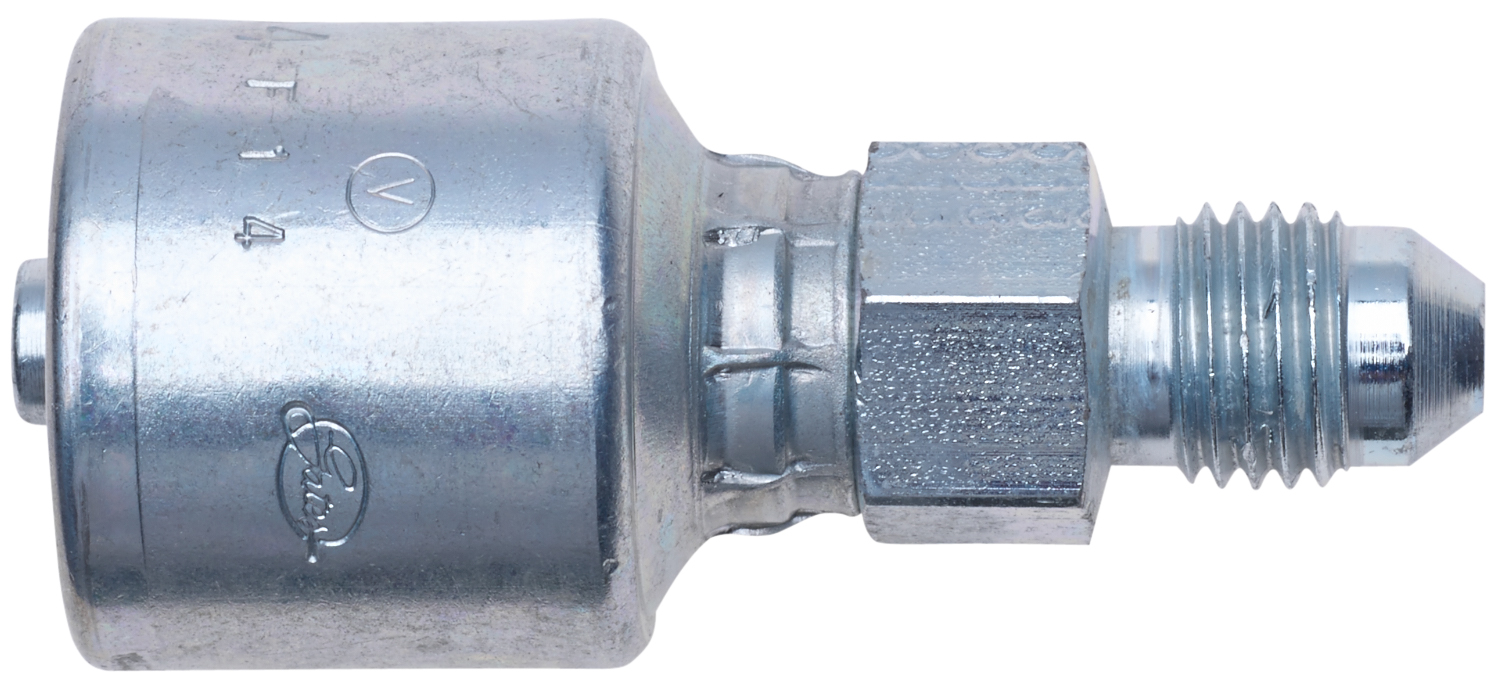

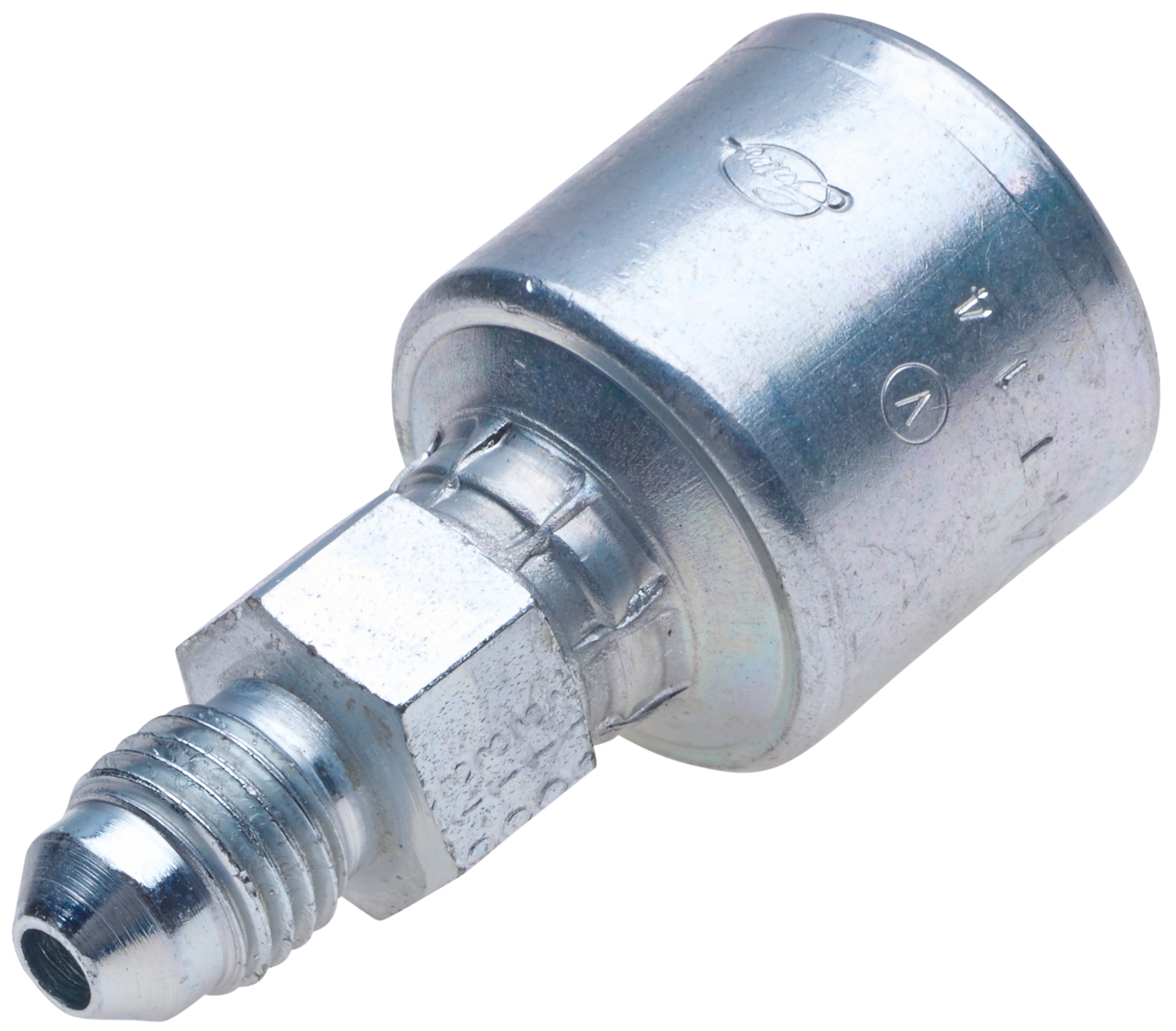

Hydraulic Coupling / Adapter - G25165-0404

Hydraulic Coupling / Adapter

Gates Hydraulic Coupling / Adapter G25165-0404 is designed to ensure secure, leak-resistant connections in hydraulic systems. This hydraulic adapter is crafted for optimal performance, offering high reliability under pressure in demanding environments. The hydraulic coupling features durable construction to withstand the toughest conditions while maintaining seamless fluid flow between components. Whether you need a replacement or are upgrading your existing hydraulic setup, this hydraulic adapter provides the long-lasting performance you need for smooth operation. Ideal for a variety of industrial applications, the Gates Hydraulic Coupling Adapter G25165-0404 ensures that your hydraulic system functions efficiently and safely.

Gates Corporation MegaCrimp Part No: G25165-0404

Specifications

The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose.

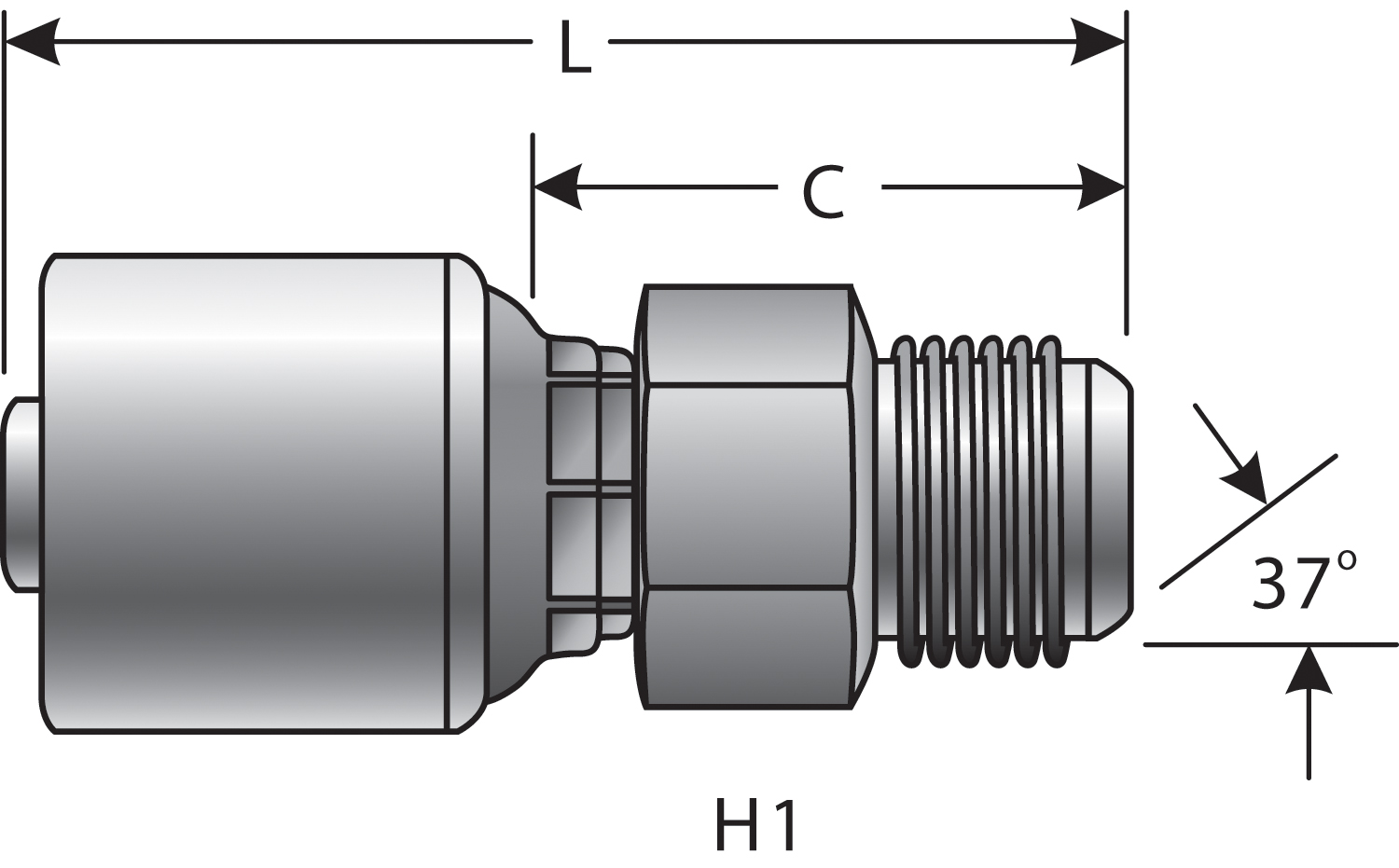

Male JIC 37 Flare (MegaCrimp)

Weight

0.1200

Gender:Male
Swivel:No
Thread Size:7/16-20
Seal Type:Mated Angle
Inside Diameter:.25
Length:2.19

Compatibility

Alternative Part Numbers

Dayco 100839
Dayco 108210
Dayco 151210
Aeroquip 1AA4MJ4
Aeroquip FJ9125-0404S
Caterpillar 124-1936
Goodyear 13450-0404
Goodyear 14450-0404
Goodyear 36450-0404
Goodyear B2-JCM-0404
Goodyear T8-JCM-0404
Hydraulink S18-0704
Kurt Hydraulics MJ-04-04
NAPA G25165-0404
Parker 10343-04-04
Parker 10343-4-4
Parker 103HY-4-4
Weatherhead 04E504
Weatherhead 04EE504
Weatherhead 04U504
Weatherhead 04Z504
Goodyear 124-1936
