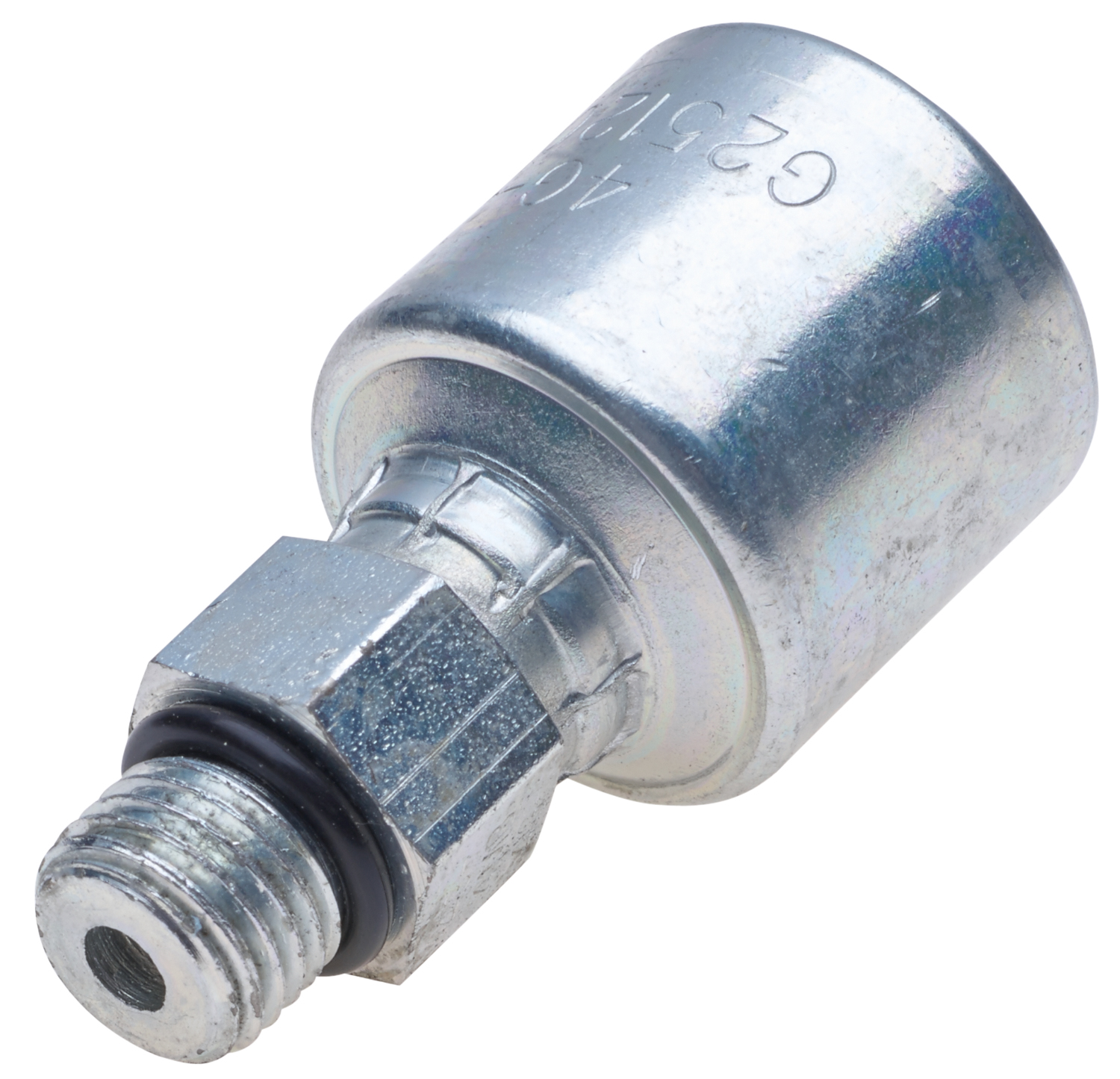

Hydraulic Coupling / Adapter - G25120-0810

Hydraulic Coupling / Adapter

Gates Hydraulic Coupling / Adapter G25120-0810 is engineered to provide exceptional strength and reliability in demanding hydraulic applications. This hydraulic coupling guarantees a leak-free and secure connection, ensuring fluid flows efficiently under high pressure. The hydraulic adapter is designed for durability, withstanding harsh environments and reducing the risk of system failures. With easy installation, this hydraulic coupling is an ideal choice for new setups or replacement projects. Whether you're upgrading or maintaining your hydraulic systems, this Gates hydraulic adapter offers a cost-effective solution for enhanced system performance. Designed to meet the rigorous demands of industrial environments, it ensures your hydraulic systems operate smoothly and efficiently, reducing downtime and improving overall productivity.

Gates Corporation MegaCrimp Part No: G25120-0810

$13.86

Specifications

The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose. SAE J1926/3 ISO 11926-3 Light-Duty (L Series) Stud End.

Male O-Ring Boss (MegaCrimp)

Weight

0.3500

Gender:Male
Swivel:No
Thread Size:7/8-14
Seal Type:O-Ring
Inside Diameter:.5

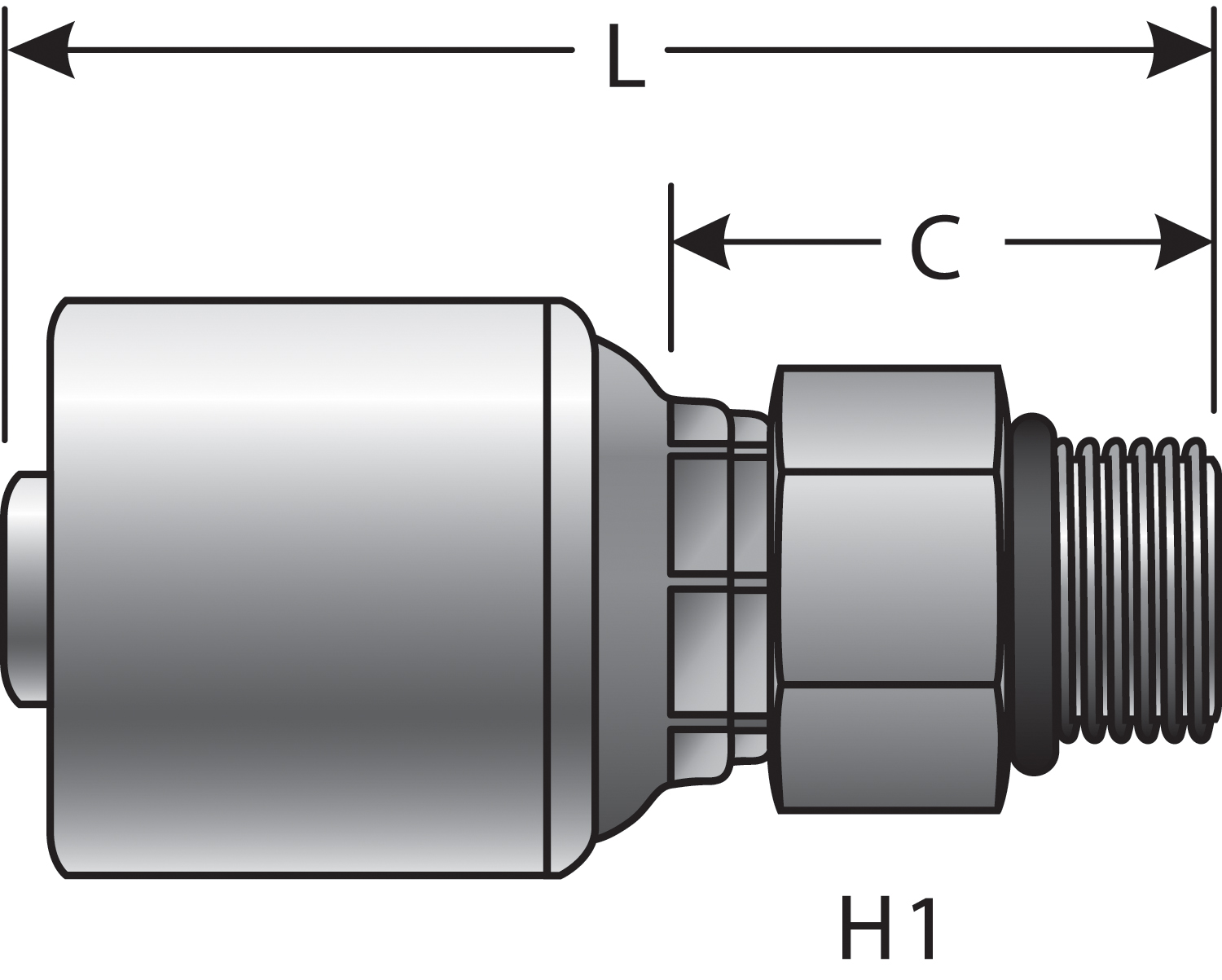

Length:2.68

Compatibility

Alternative Part Numbers

Dayco 108285
Dayco 151106
Dayco 151285
Aeroquip 1AA10MB8
Aeroquip FJ9124-1008S
Caterpillar 124-1932
Goodyear 13670-0810
Goodyear 14670-0810
Goodyear B2-OBM-0810
Goodyear UC-OBM-0810
Kurt Hydraulics MB-08-10
NAPA G25120-0810
Parker 10543-10-08
Parker 10543-10-8
Parker 105HY-10-8
Weatherhead 08UP10
Weatherhead 08ZP10
Weatherhead 33608EP10
Weatherhead 33608E-P10
Parker 108285
