Specifications

The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose.

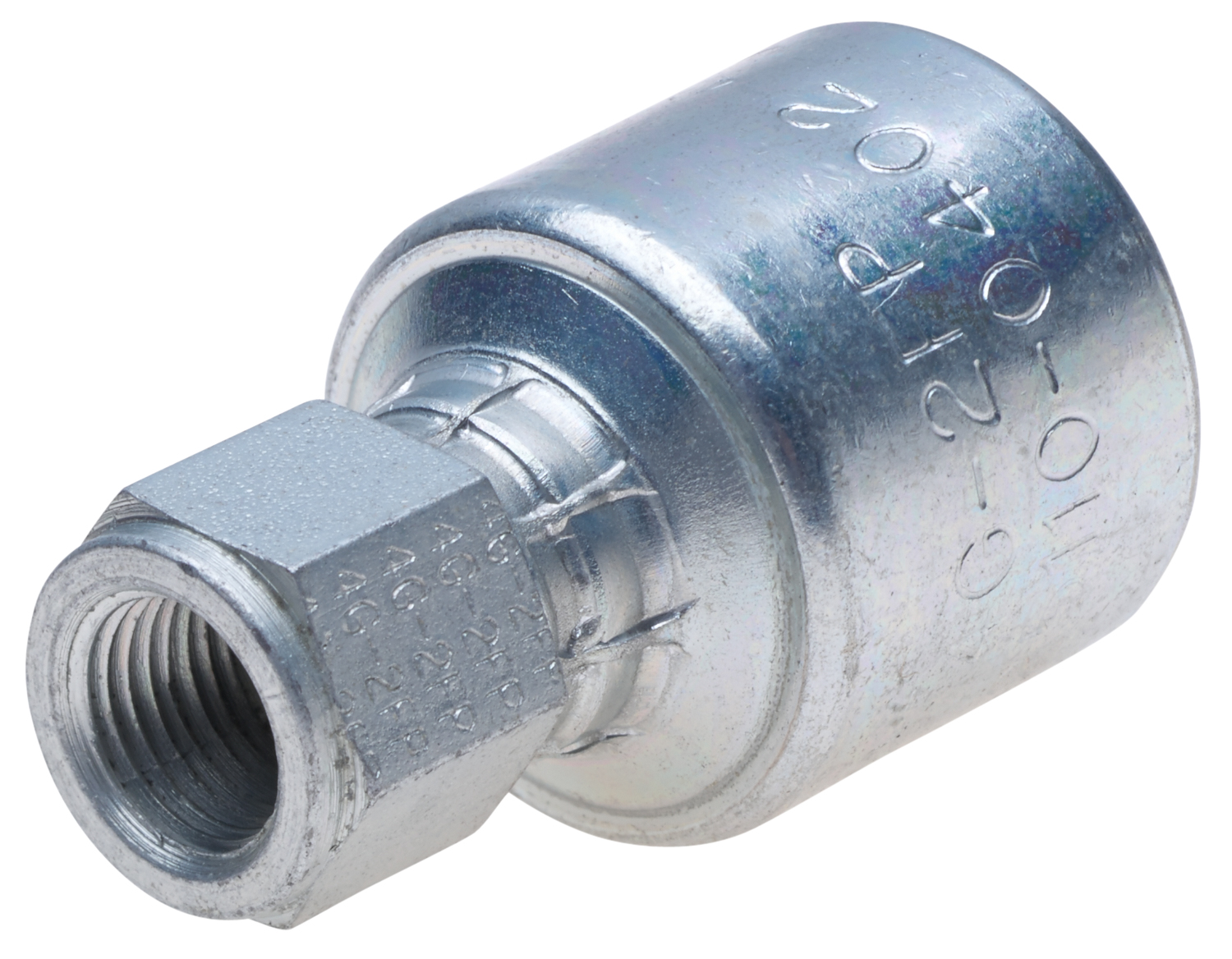

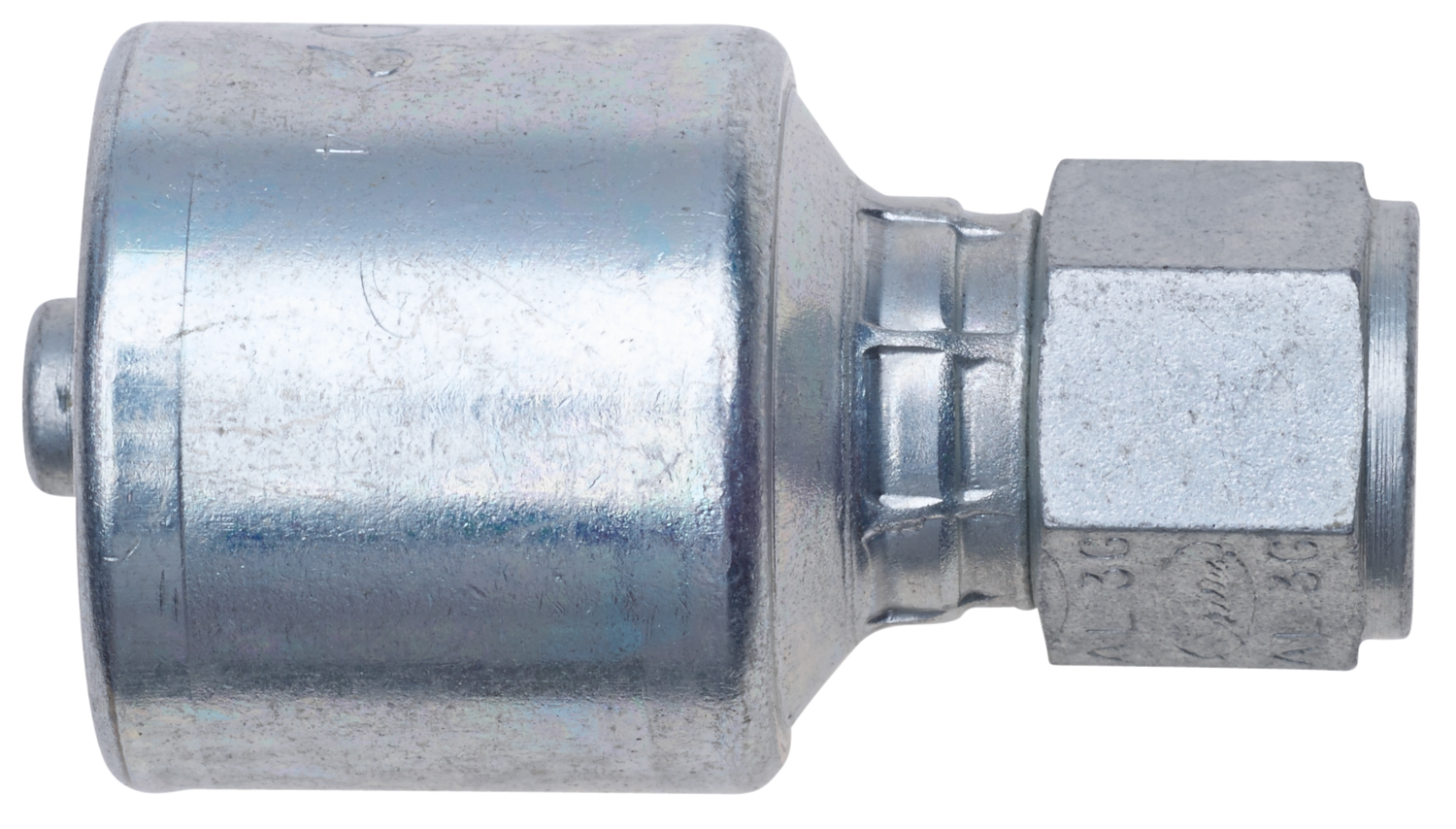

  • Female Pipe (NPTF - Without 30 Cone Seat) (MegaCrimp)
Gender:Female
Swivel:No
Thread Size:1/2-14
Seal Type:Thread Interference
Inside Diameter:.5

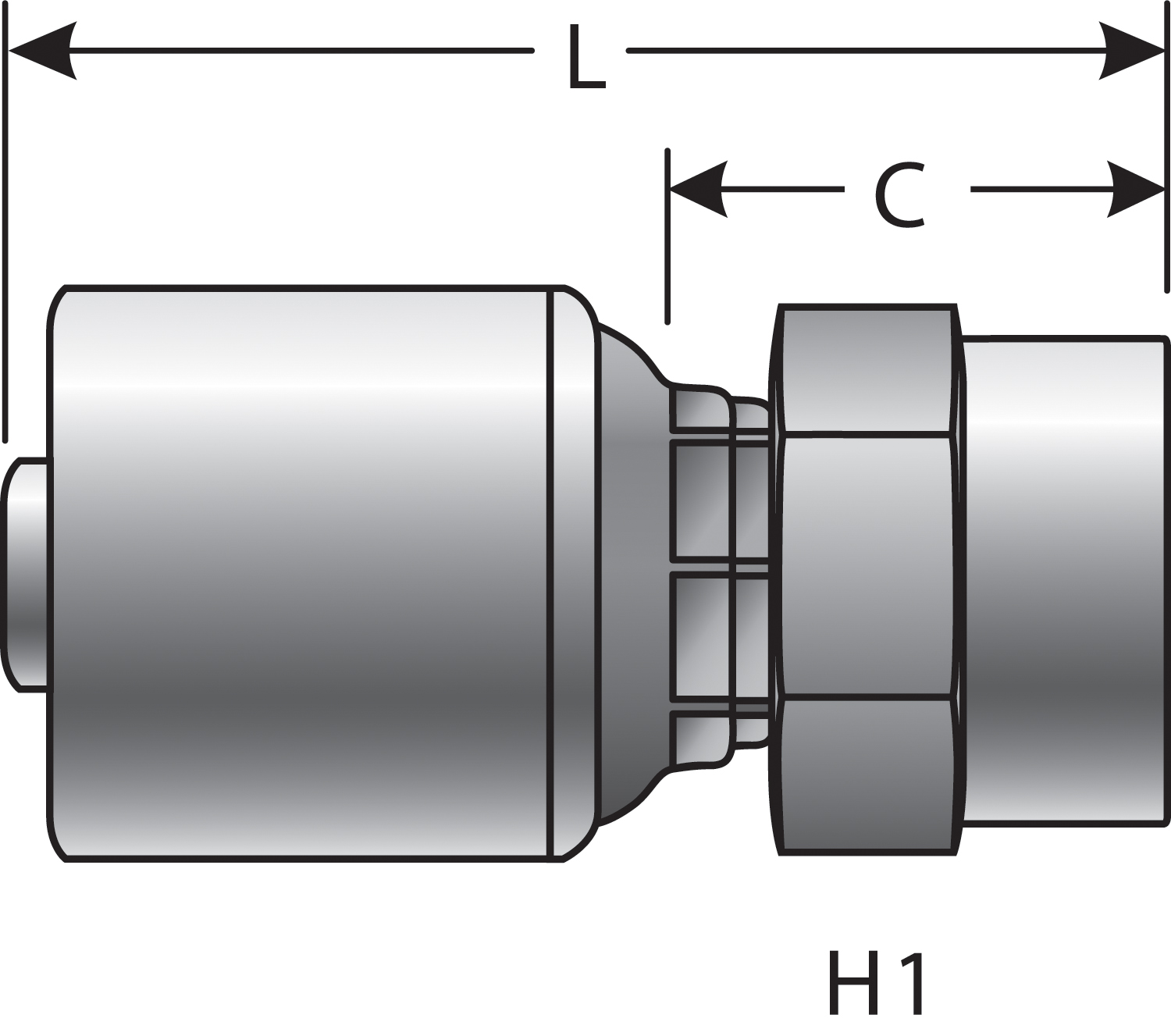

Length:2.63
Weight
0.3000

Compatibility


Alternative Part Numbers

  • Dayco 108039
  • Dayco 151039
  • Goodyear 08Z208
  • Goodyear G25110-0808
  • Kurt Hydraulics FP-08-08
  • NAPA G25110-0808
  • Parker 10243-08-08
  • Parker 10243-8-8
  • Parker 102HY-8-8
  • Weatherhead 08M058
  • Weatherhead 08U208
  • Weatherhead 08Z208
