Specifications

The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose. Not to be used as a live swivel.

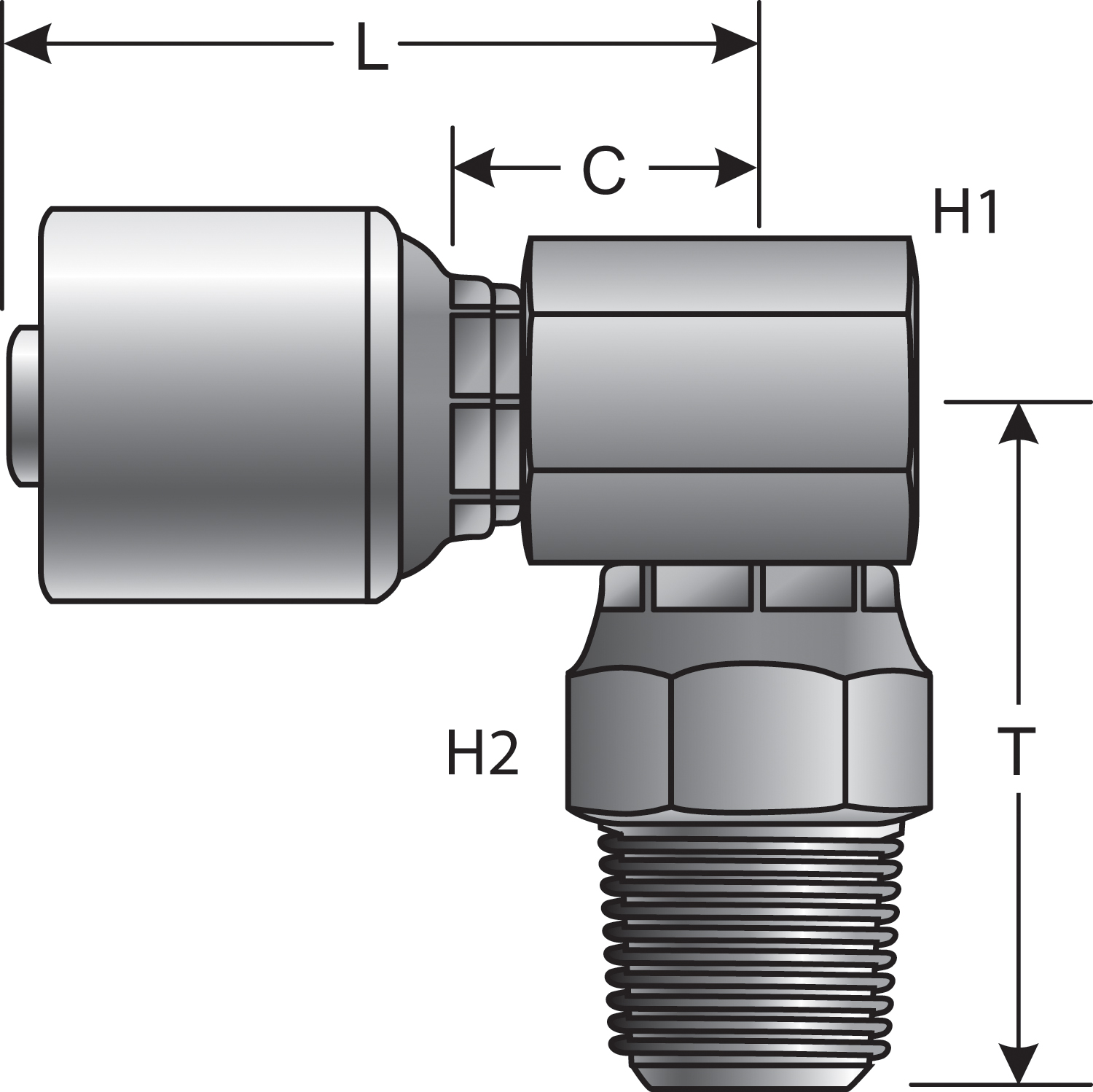

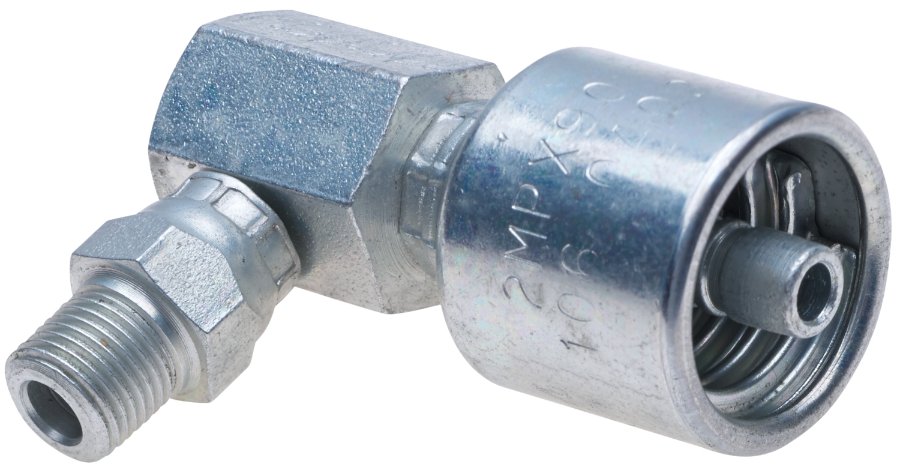

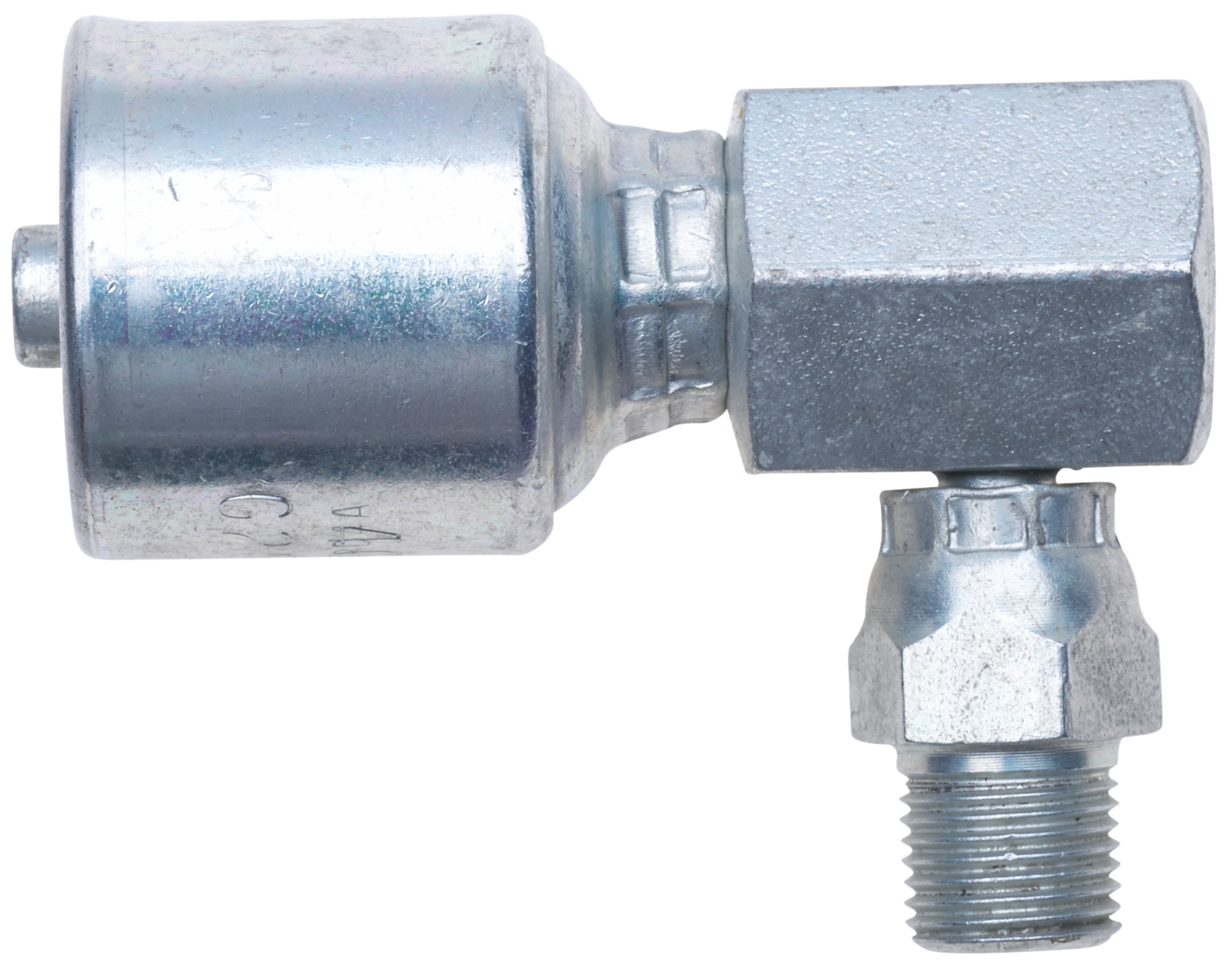

  • Male Pipe Swivel - 90 Block (NPTF - Without 30 Cone Seat) (MegaCrimp)
Weight
0.6400
Gender:Male
Swivel:Yes
Thread Size:1/2-14
Seal Type:Thread Interference
Inside Diameter:.5
Length:2.55
Drop Length:2.05

Compatibility


Alternative Part Numbers

Dayco 108239
Goodyear 14650-0808
Goodyear B2NPMX90B0808
Goodyear B2-NPMX90B-0808
Kurt Hydraulics MPX90-08-08
NAPA G25106-0808
Parker 11L43-08-08
Parker 11L43-8-8
Parker 11LHY-8-8
Weatherhead G25106-0808
Parker MPX90-08-08
Weatherhead 08UM08
Weatherhead 08ZM08
Weatherhead 33608EM08
Weatherhead 33608E-M08
