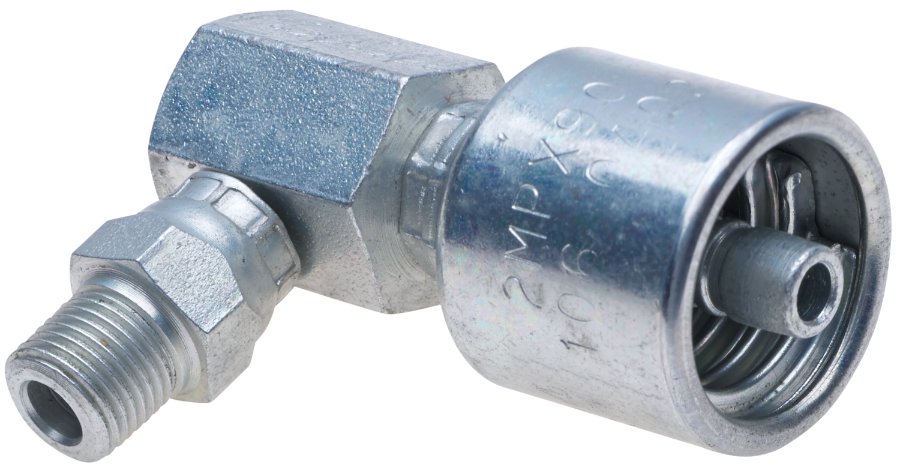

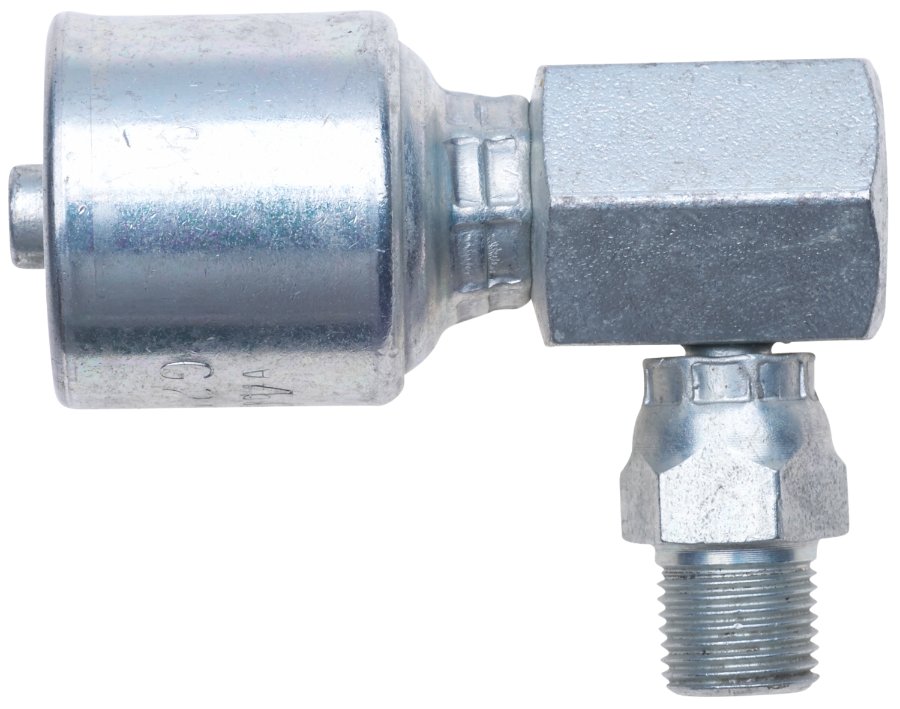

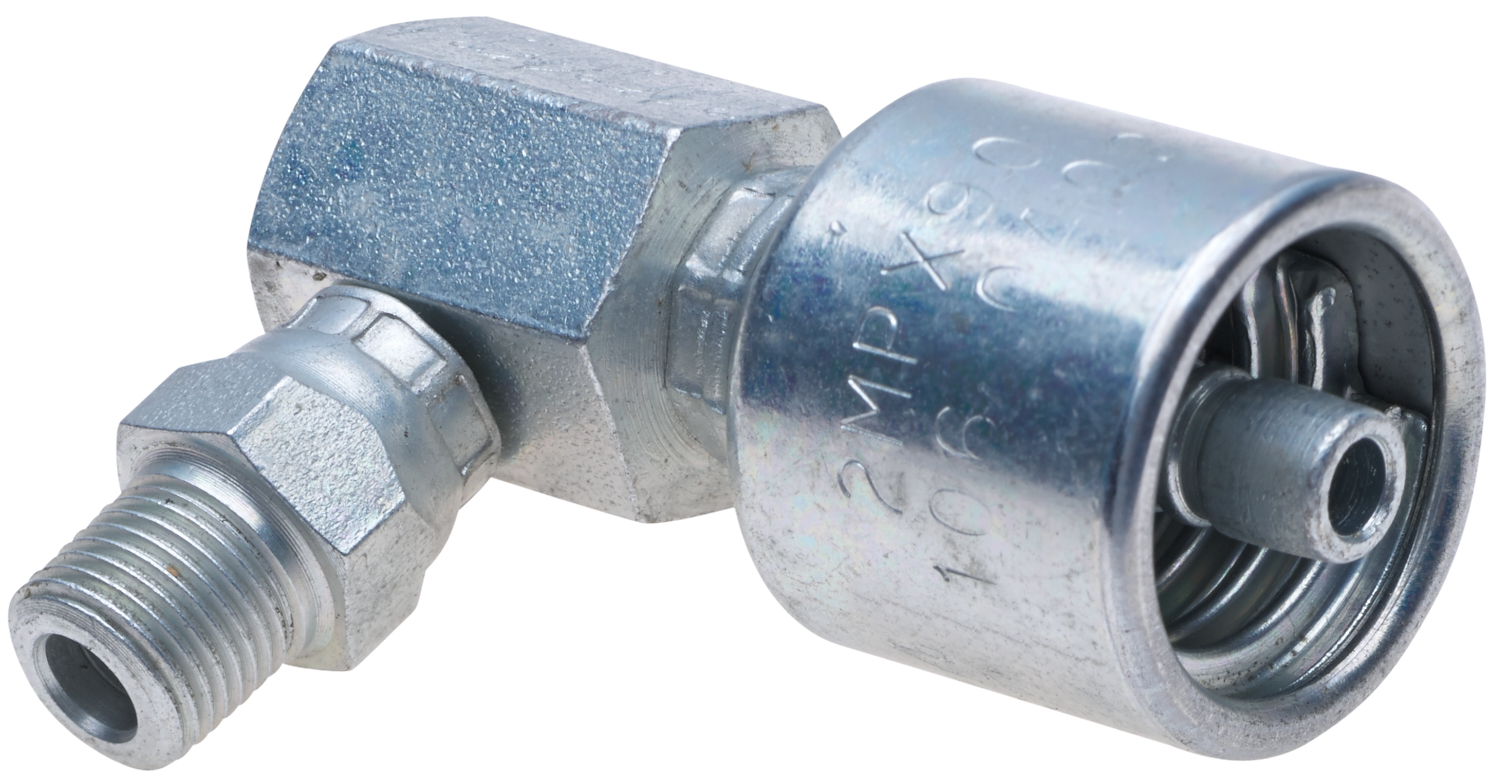

Gates Corporation Hydraulic Coupling / Adapter Part No: G25106-0606
$31.17
MegaCrimp
Male Pipe Swivel - 90 Block (NPTF - Without 30 Cone Seat) (MegaCrimp)
Specifications
The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose. Not to be used as a live swivel.
Gender: Male
Swivel: Yes
Thread Size: 3/8-18
Seal Type: Thread Interference
Inside Diameter: .375
Length: 1.96
Drop Length: 1.76
Swivel: Yes
Thread Size: 3/8-18
Seal Type: Thread Interference
Inside Diameter: .375
Length: 1.96
Drop Length: 1.76
Weight
0.3900
Compatibility
Alternative Part Numbers
- Dayco 108238
- Goodyear 14650-0606
- Goodyear B2-NPMX90B-0606
- Goodyear B2NPMX90B0606
- Kurt Hydraulics MPX90-06-06
- NAPA G25106-0606
- Parker 11L43-06-06
- Parker 11L43-6-6
- Parker 11LHY-6-6
- Weatherhead 06UM06
- Weatherhead 06ZM06
- Weatherhead 33606E-M06
- Weatherhead 33606EM06
