Hydraulic Coupling / Adapter - G25106-0404

Hydraulic Coupling / Adapter

Gates Hydraulic Coupling / Adapter G25106-0404 is designed to provide a secure, leak-free connection for hydraulic systems, ensuring optimal performance even under high-pressure conditions. This hydraulic adapter features durable construction to handle tough industrial environments, reducing the risk of system failure and costly downtime. The hydraulic coupling is engineered to ensure a tight, reliable connection, supporting smooth fluid flow and efficiency in various heavy-duty applications. Whether you're assembling a new system or replacing an old component, this hydraulic adapter offers a cost-effective solution to meet your needs. Gates hydraulic adapters are trusted for their ability to withstand rigorous use, ensuring long-lasting durability and minimal maintenance. For enhanced reliability and performance in hydraulic systems, Gates is the preferred choice for hydraulic couplings and adapters.

Gates Corporation MegaCrimp Part No: G25106-0404

$28.58

Specifications

The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose. Not to be used as a live swivel.

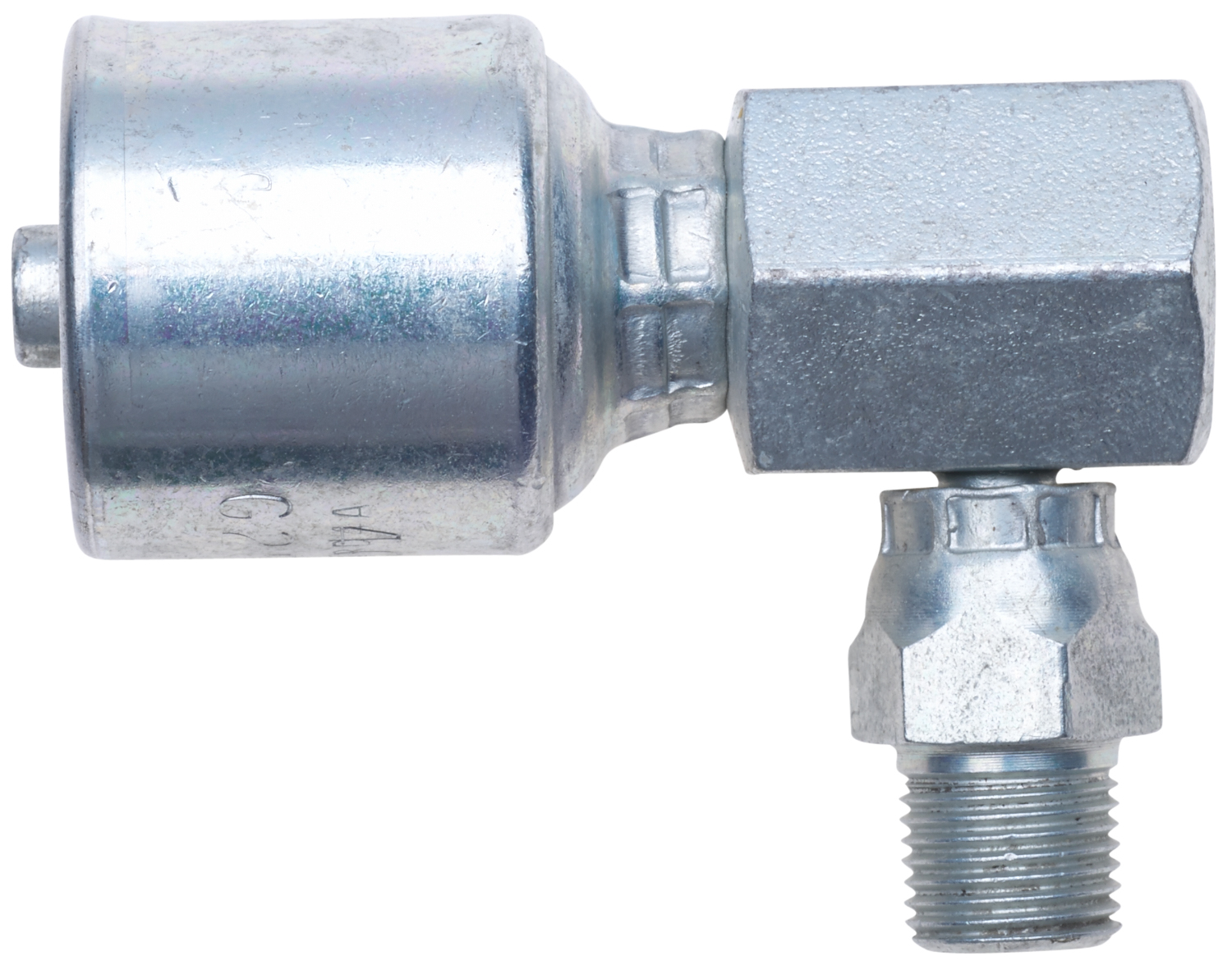

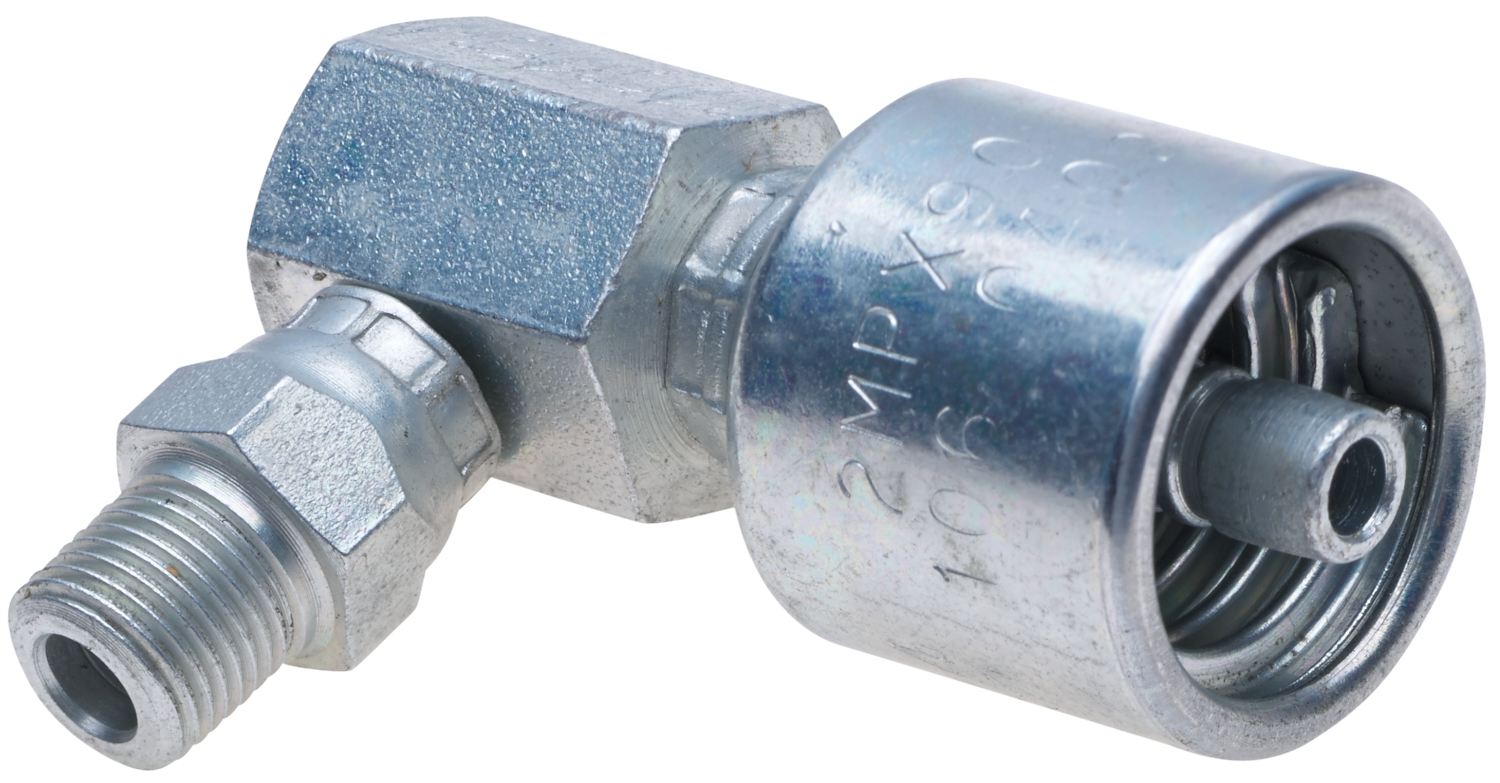

Male Pipe Swivel - 90 Block (NPTF - Without 30 Cone Seat) (MegaCrimp)

Weight

0.2500

Gender:Male
Swivel:Yes
Thread Size:1/4-18
Seal Type:Thread Interference
Inside Diameter:.25

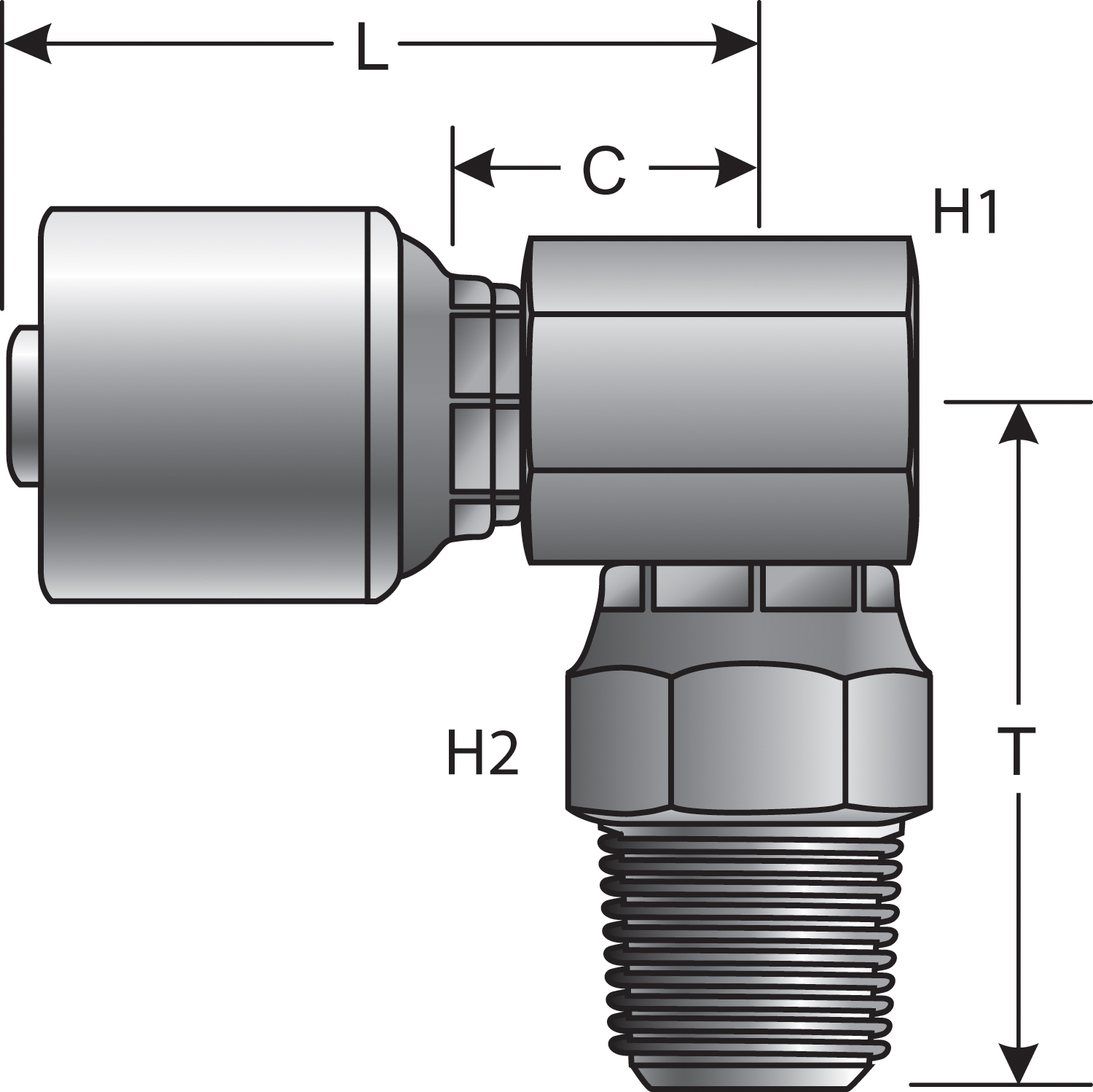

Length:1.75
Drop Length:1.62

Compatibility

Alternative Part Numbers

Dayco 108236
Goodyear 14650-0404
Goodyear B2NPMX90B0404
Goodyear B2-NPMX90B-0404
Kurt Hydraulics MPX90-04-04
NAPA G25106-0404
Parker 11L43-04-04
Parker 11L43-4-4
Parker 11LHY-4-4
Weatherhead 04UM04
Weatherhead 04ZM04
Dayco 151236
Weatherhead 14650-0404
