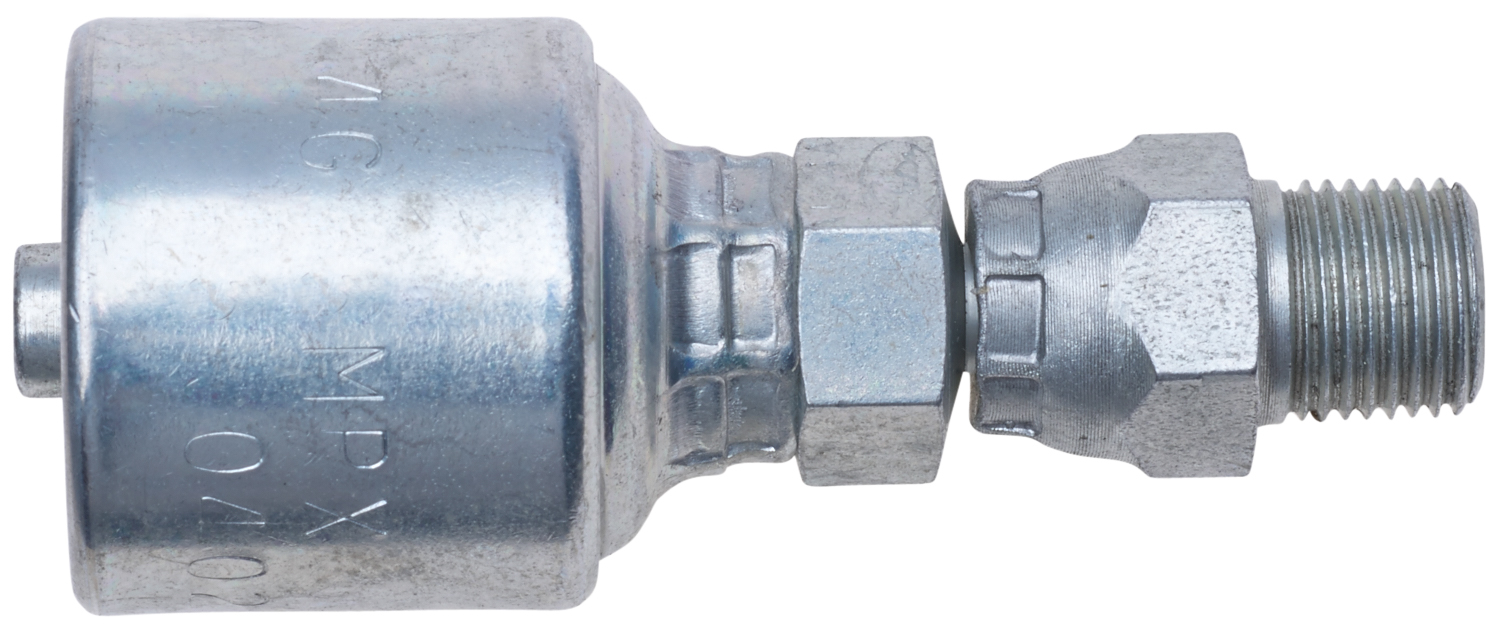

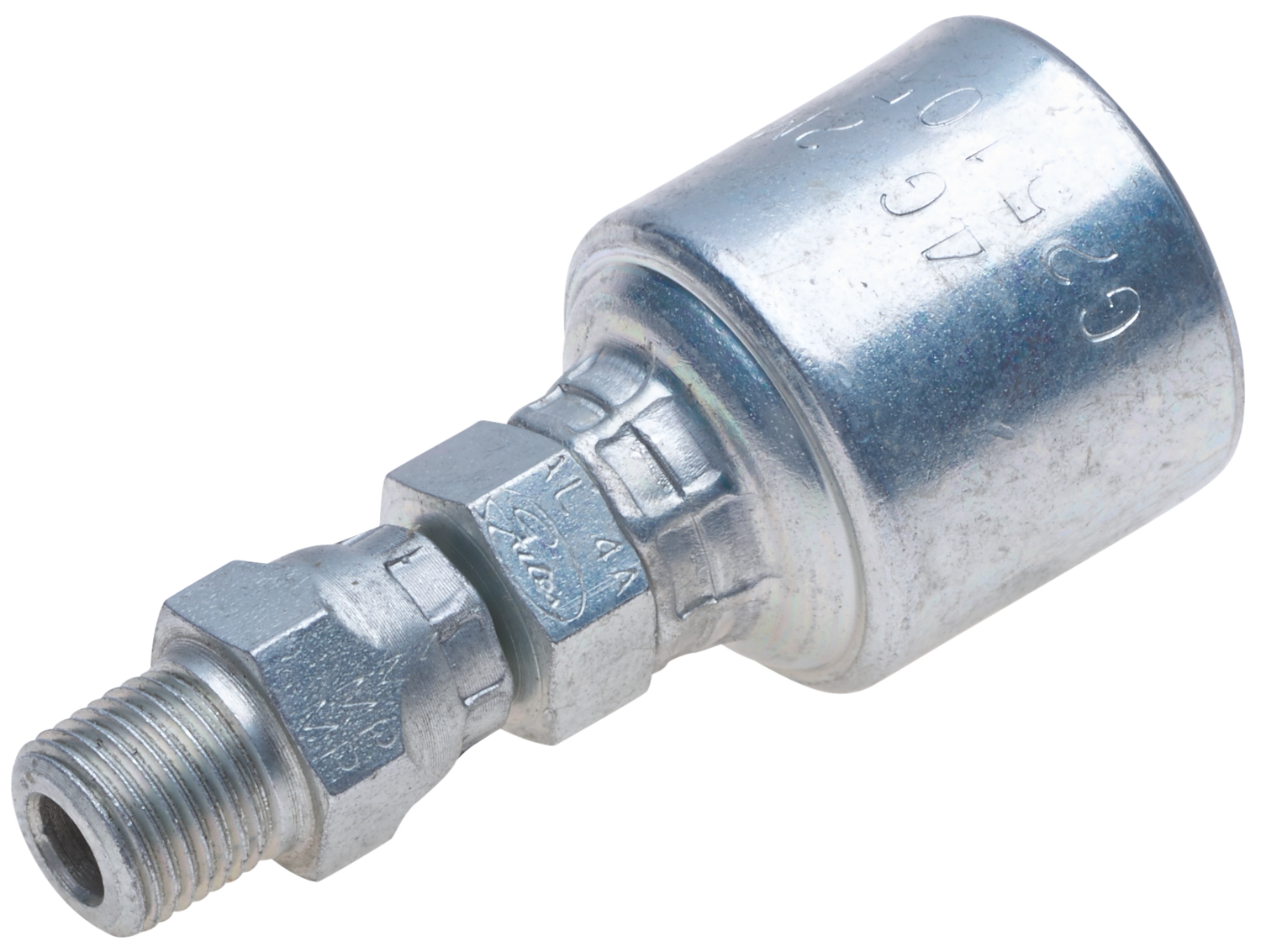

Gates Corporation Hydraulic Coupling / Adapter Part No: G25105-1616
$53.25
MegaCrimp
Male Pipe Swivel (NPTF - Without 30 Cone Seat) (MegaCrimp)
Specifications
The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose. Not to be used as a live swivel.
Gender: Male
Swivel: Yes
Thread Size: 1-11 1/2
Seal Type: Thread Interference
Inside Diameter: 1

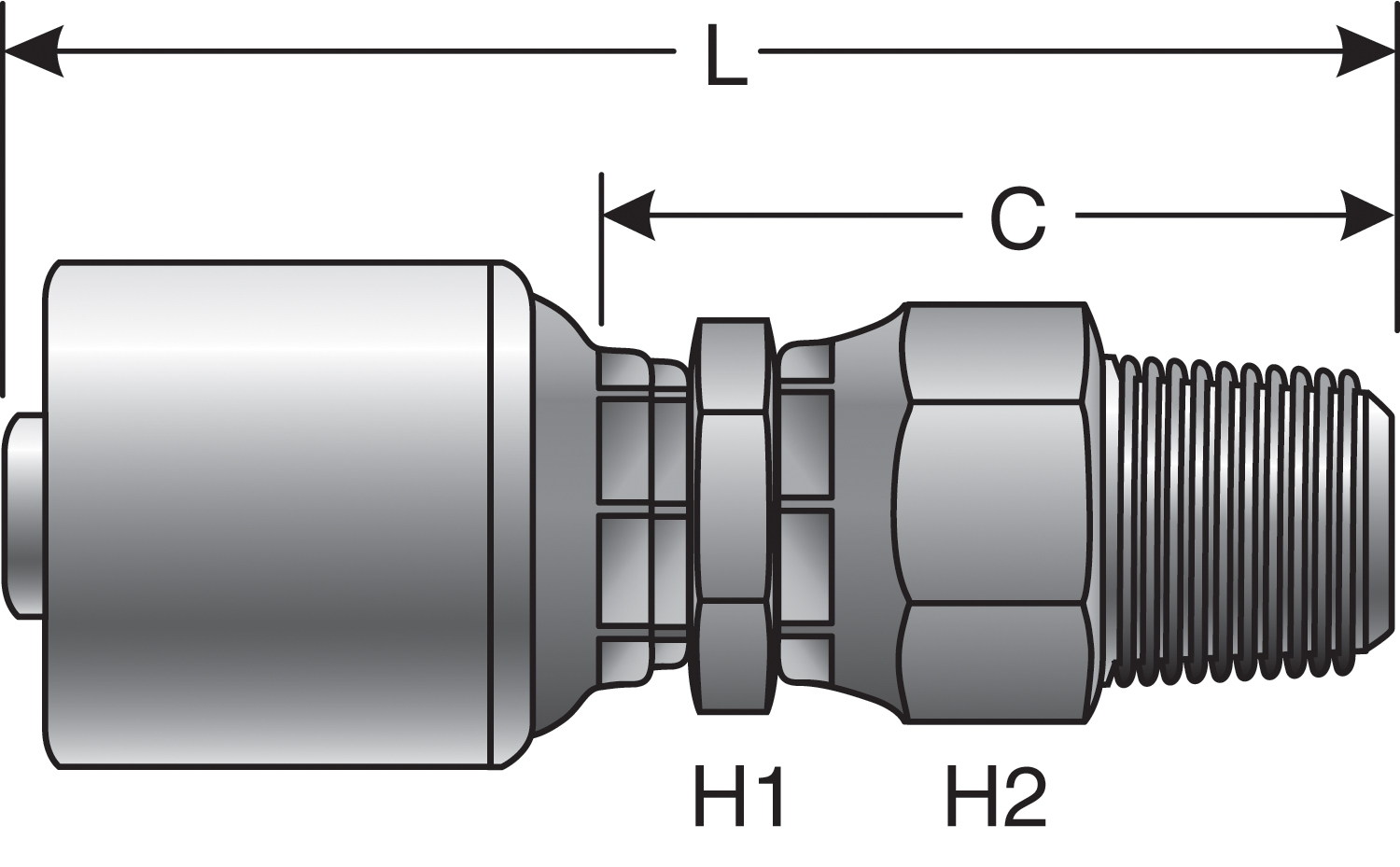

Length: 4.73
Swivel: Yes
Thread Size: 1-11 1/2
Seal Type: Thread Interference
Inside Diameter: 1
Length: 4.73
Weight
1.2500
Compatibility
General applications: Designed for hydraulic systems in heavy-duty trucks, construction equipment, and industrial machinery.
Alternative Part Numbers
- OEM:
- <br />
- 108201
- 11343-16-16
- 113HY-16-16
- 14645-1616
- 16UJ16
- 16ZJ16
- 1AA16PS16
- 43016UJ16
- Aeroquip
- Aeroquip
- B2-NPMX-1616
- Dayco
- FJ9126-1616S
- G25105-1616
- Gates 16G-16MPX
- Gates G25105-1616
- Goodyear
- Goodyear
- Kurt Hydraulics
- MPX-16-16
- NAPA
- Parker
- Parker
- Weatherhead
- Weatherhead
- Weatherhead
