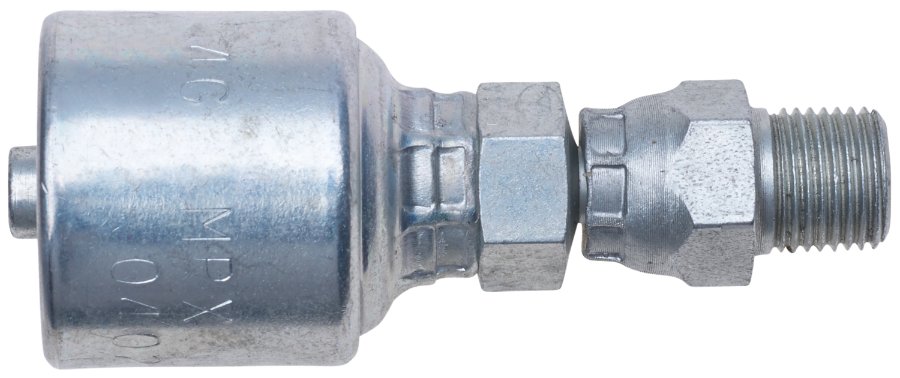

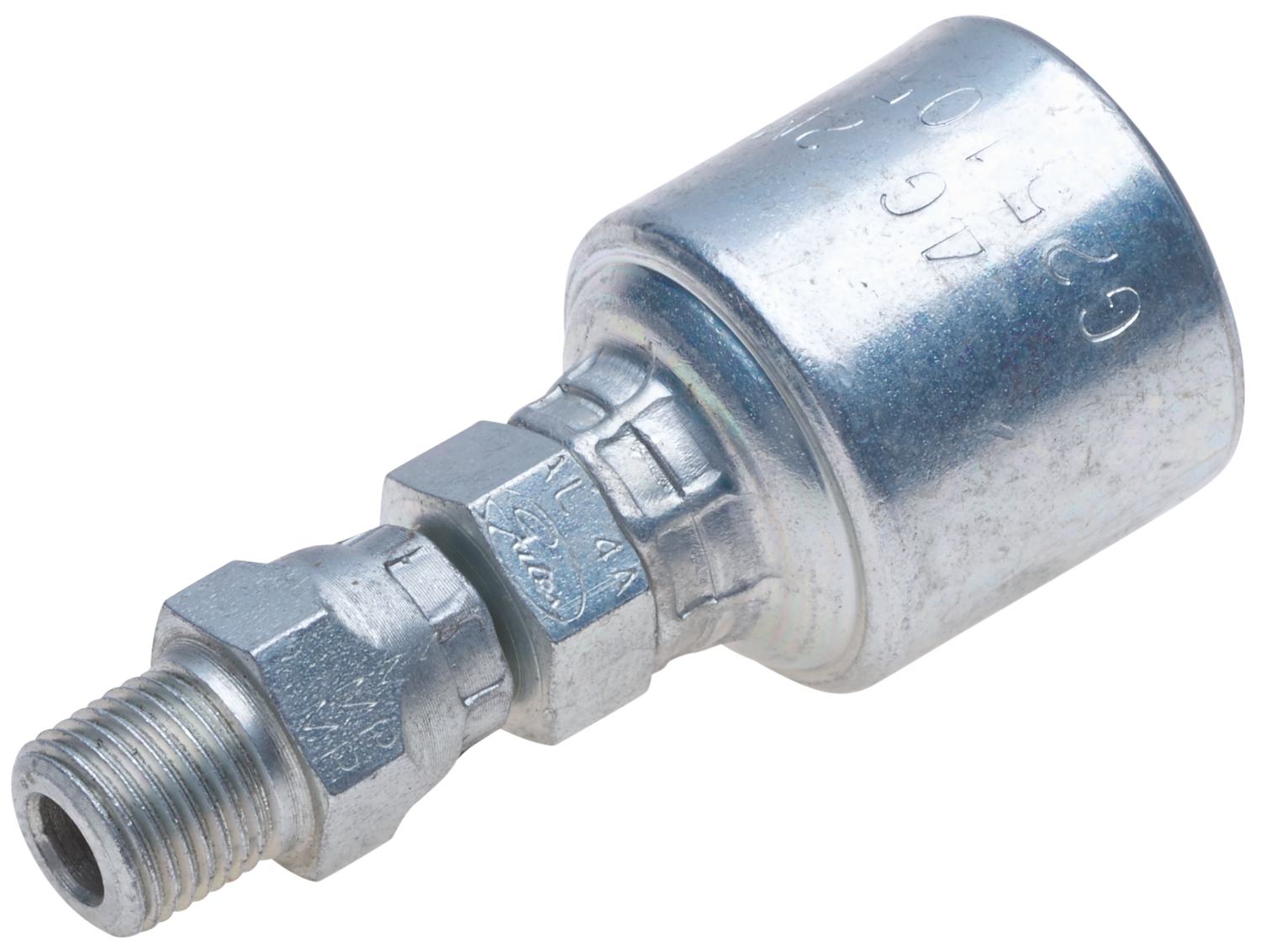

Hydraulic Coupling / Adapter - G25105-0604

Hydraulic Coupling / Adapter

Gates Hydraulic Coupling / Adapter G25105-0604 provides an exceptional solution for creating reliable connections in hydraulic systems, ensuring that fluid flow remains uninterrupted under high pressure. This hydraulic adapter is built for tough industrial applications, delivering high durability and excellent performance over time. With its robust design, the hydraulic coupling ensures a secure and leak-proof connection, minimizing the risk of system failure. Gates hydraulic adapters are designed to withstand demanding environments, making them an ideal choice for both new installations and replacement projects. Whether you're working on heavy-duty machinery or complex hydraulic systems, this adapter guarantees long-lasting efficiency. Choose Gates for hydraulic couplings and adapters that combine reliability and superior performance in every application.

Gates Corporation MegaCrimp Part No: G25105-0604

$17.22

Specifications

The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose. Not to be used as a live swivel.

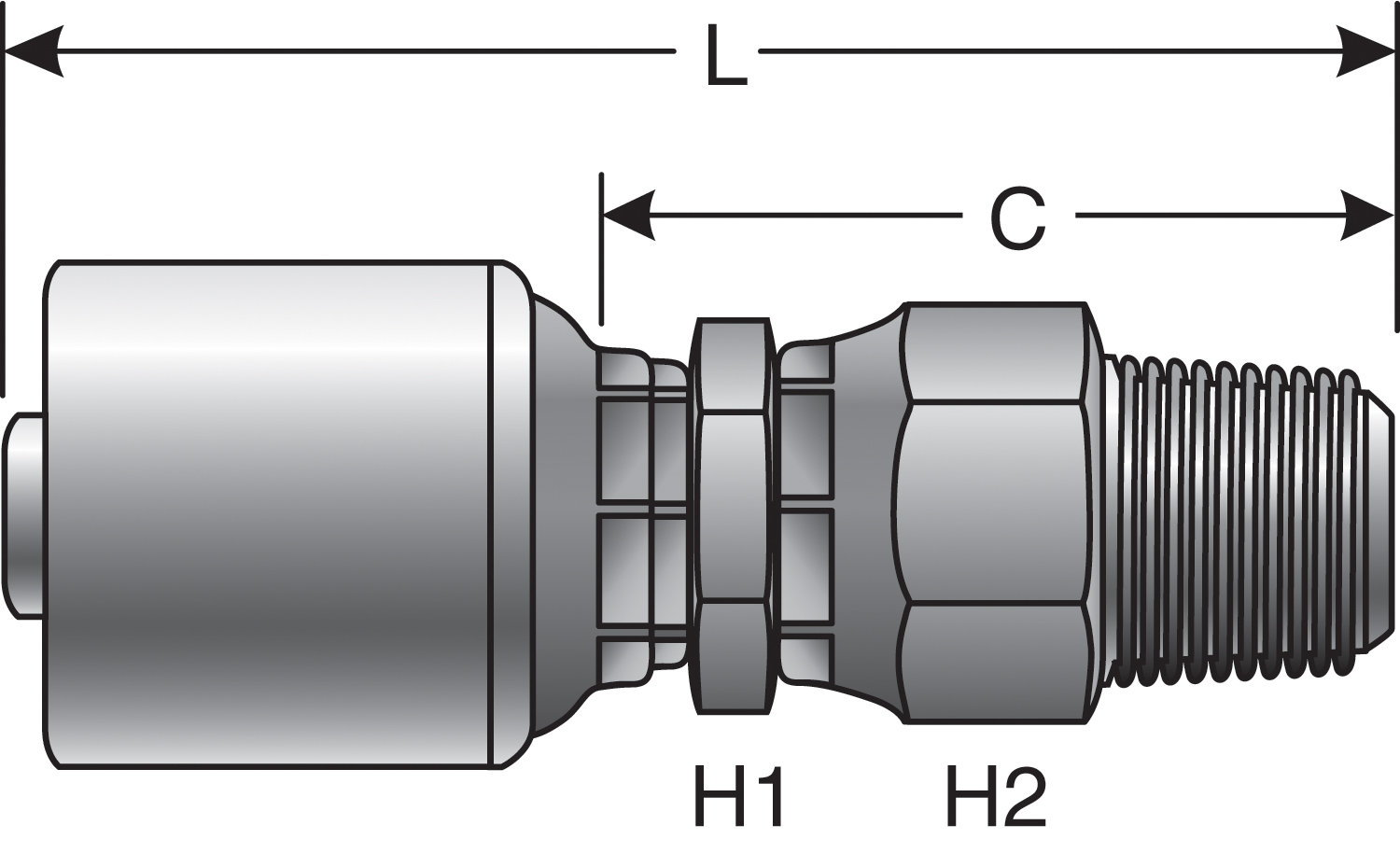

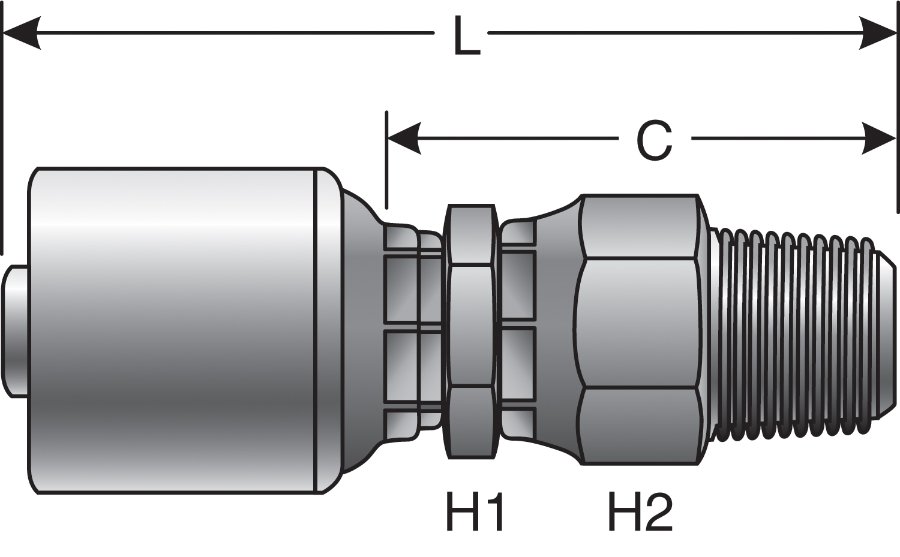

Male Pipe Swivel (NPTF - Without 30 Cone Seat) (MegaCrimp)

Weight

0.2700

Gender:Male
Swivel:Yes
Thread Size:1/4-18
Seal Type:Thread Interference
Inside Diameter:.375
Length:2.87

Compatibility

Alternative Part Numbers

Dayco 108184
Dayco 151184
Caterpillar 124-1916
Goodyear 13645-0604
Goodyear 14645-0604
Goodyear B2-NPMX-0604
Kurt Hydraulics MPX-06-04
NAPA G25105-0604
Parker 11343-04-06
Parker 11343-4-6
Parker 113HY-4-6
Weatherhead 06UJ04
Weatherhead 06ZJ04
Goodyear 108184
