Specifications

The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose. Not to be used as a live swivel.

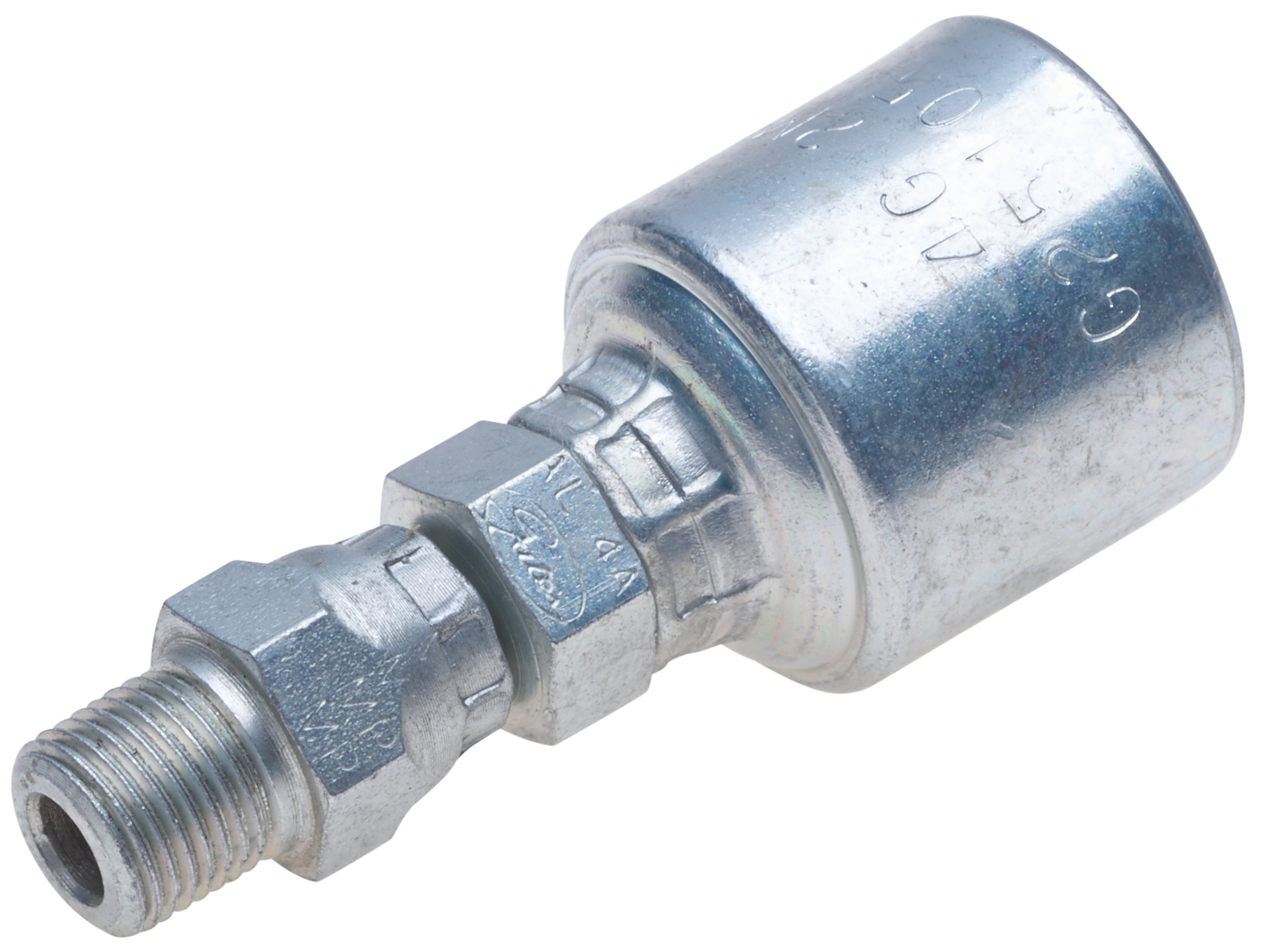

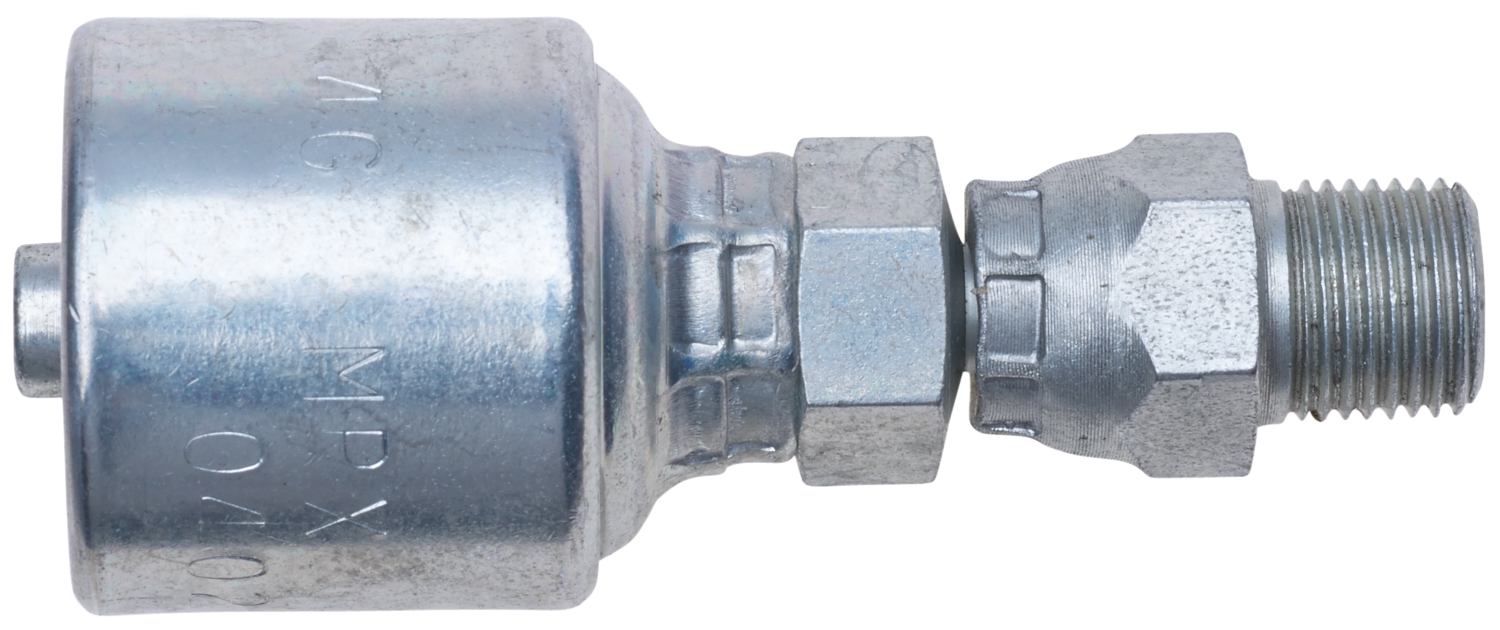

  • Male Pipe Swivel (NPTF - Without 30 Cone Seat) (MegaCrimp)
Weight
0.1100
Gender:Male
Swivel:Yes
Thread Size:1/4-18
Seal Type:Thread Interference
Inside Diameter:.25

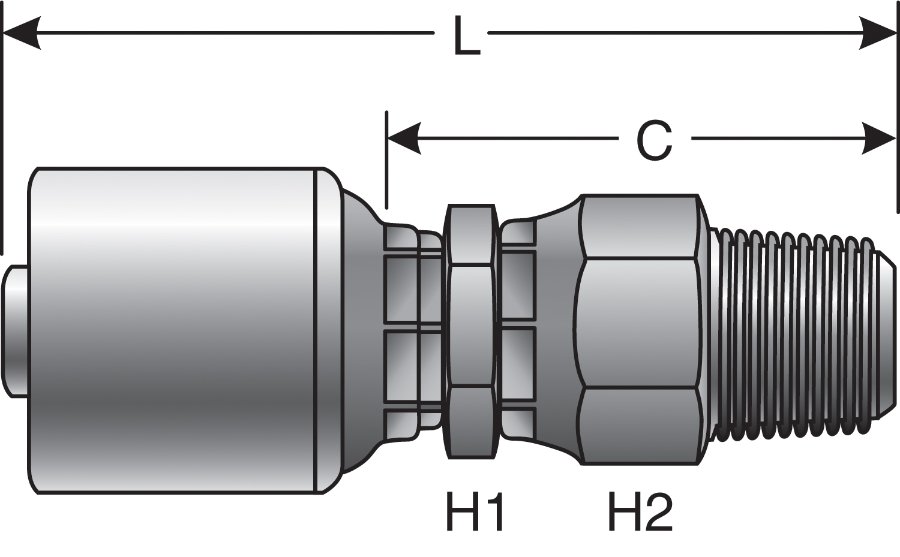

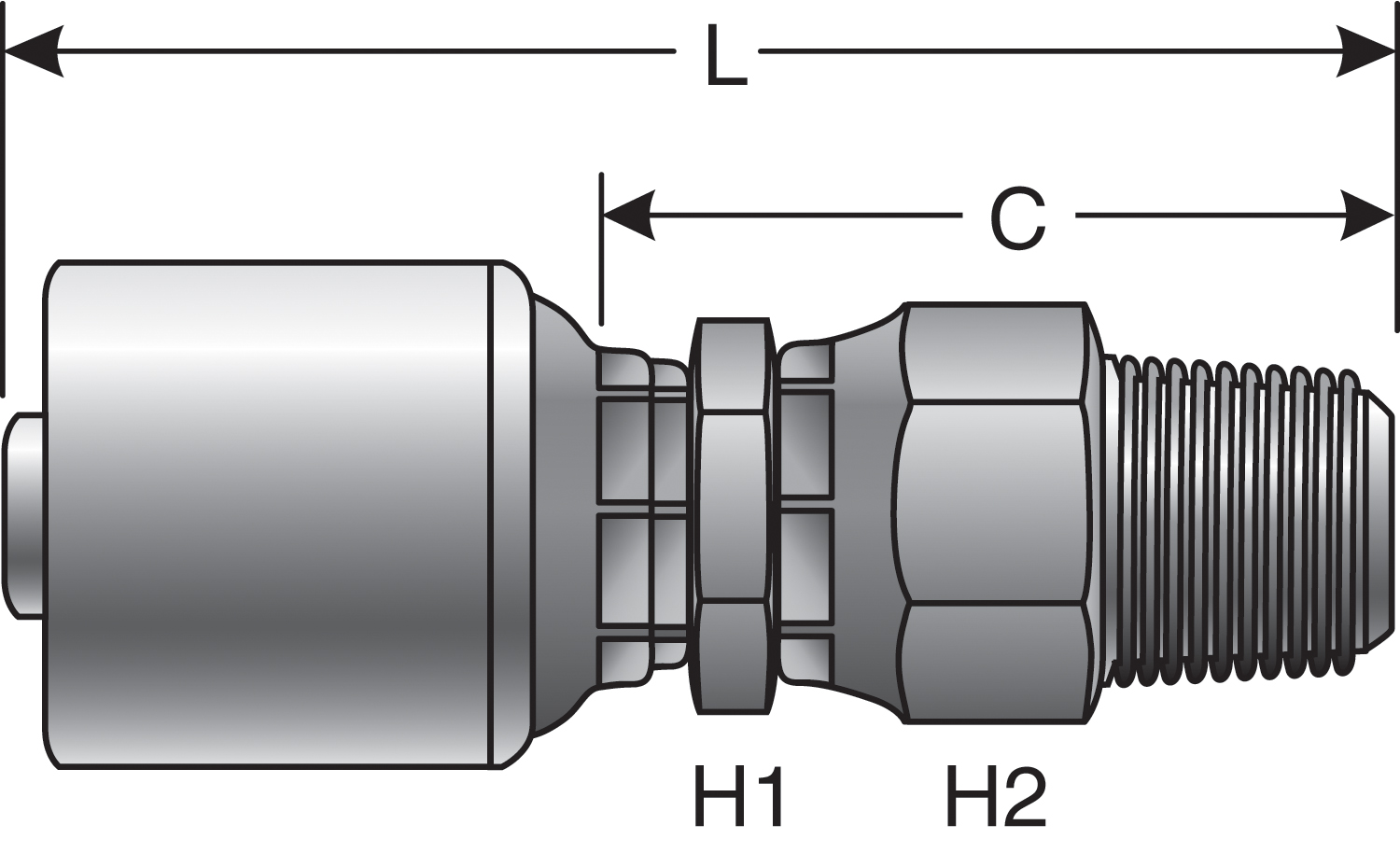

Length:2.61

Compatibility


Alternative Part Numbers

OEM: Gates G25105-0404
Gates 4G-4MPX

Aeroquip
1AA4PS4
Aeroquip
FJ9126-0404S
Caterpillar
124-1914
Dayco
108181
Dayco
151181
Goodyear
13645-0404
Goodyear
14645-0404
Goodyear
B2-NPMX-0404
Goodyear
T8-NPMX-0404
Kurt Hydraulics
MPX-04-04
NAPA
G25105-0404
Parker
11343-04-04
Parker
11343-4-4
Parker
11358-4-4
Parker
113HY-4-4
Weatherhead
04EEJ04
Weatherhead
04EJ04
Weatherhead
04MJ04
Weatherhead
04UJ04
Weatherhead
04ZJ04
Weatherhead
33604EJ04
