Specifications

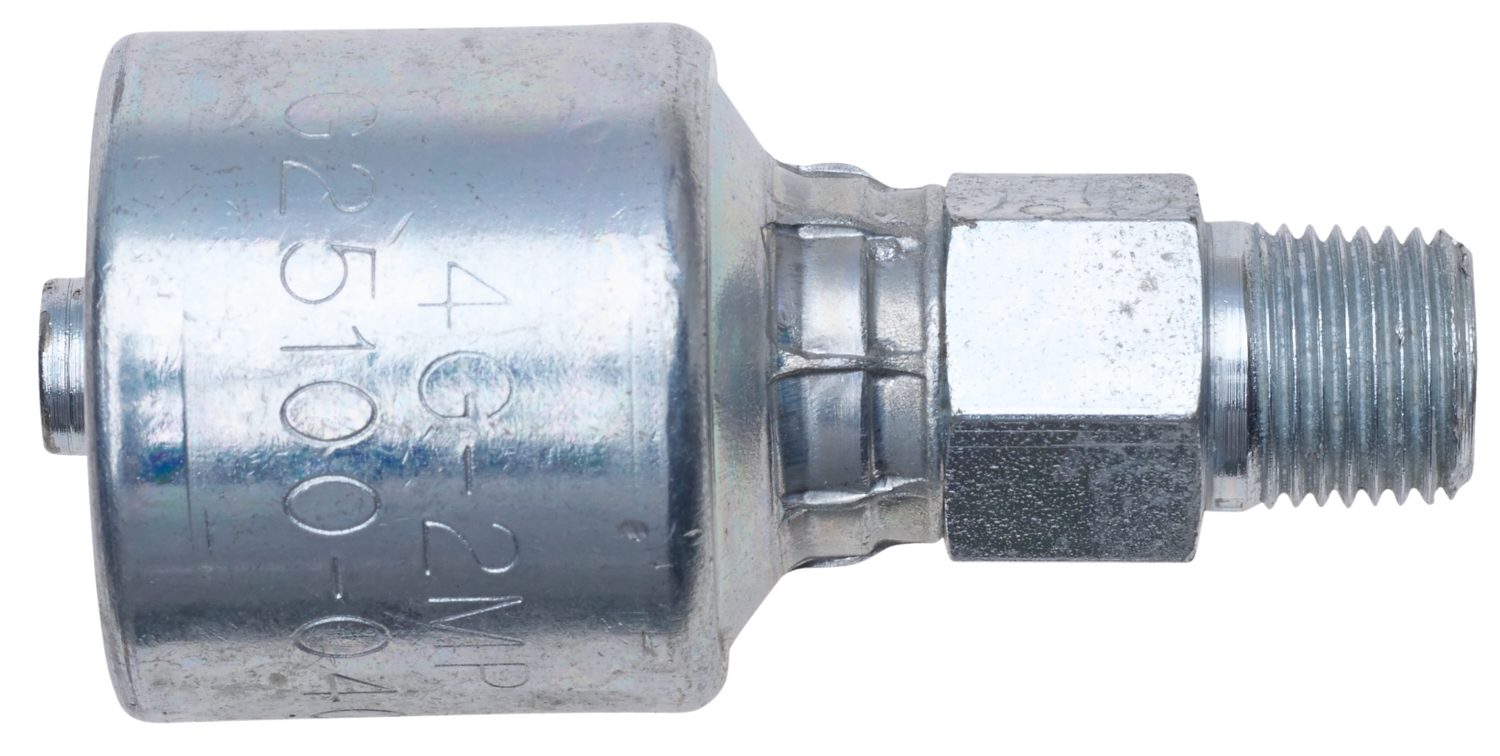

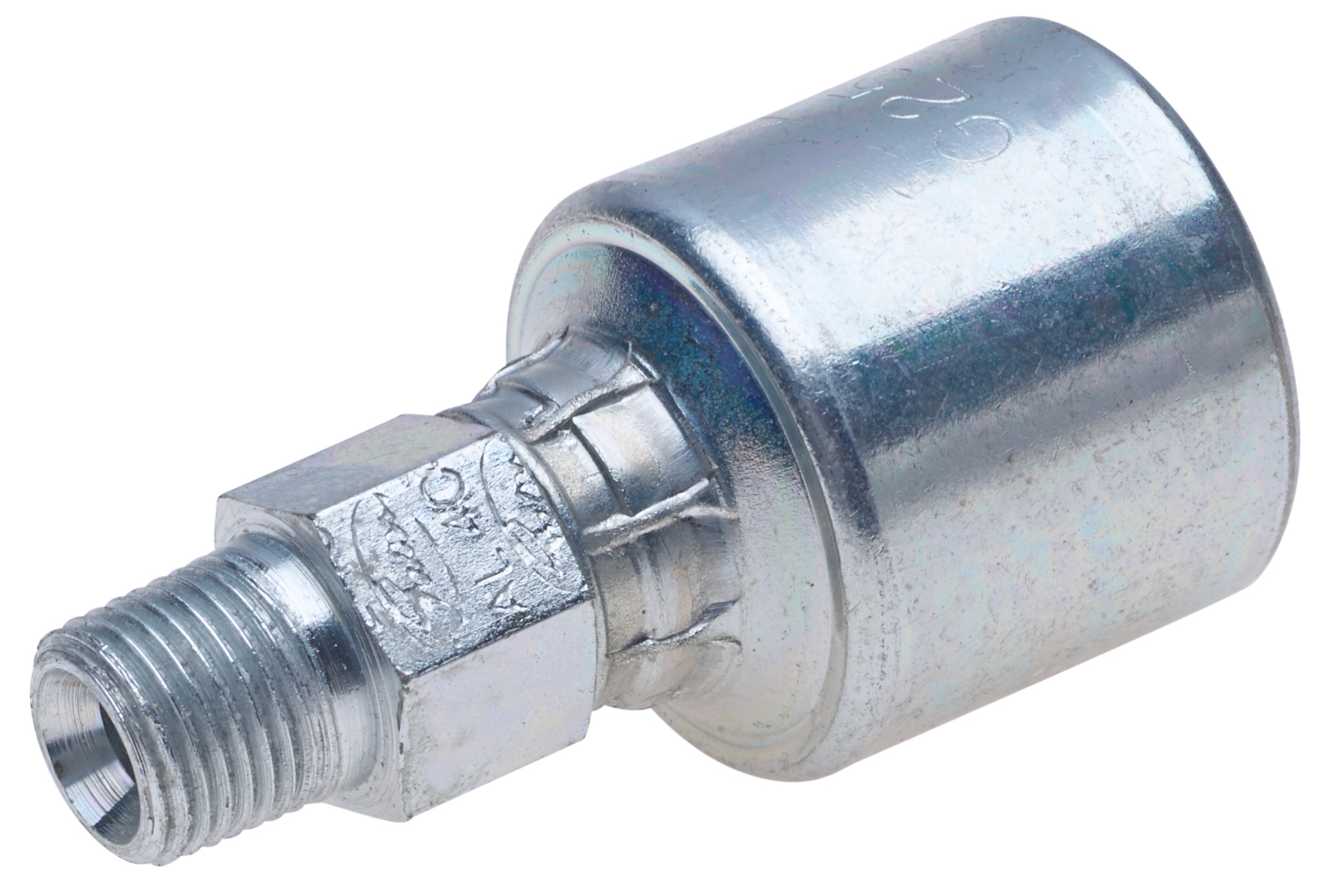

The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose.

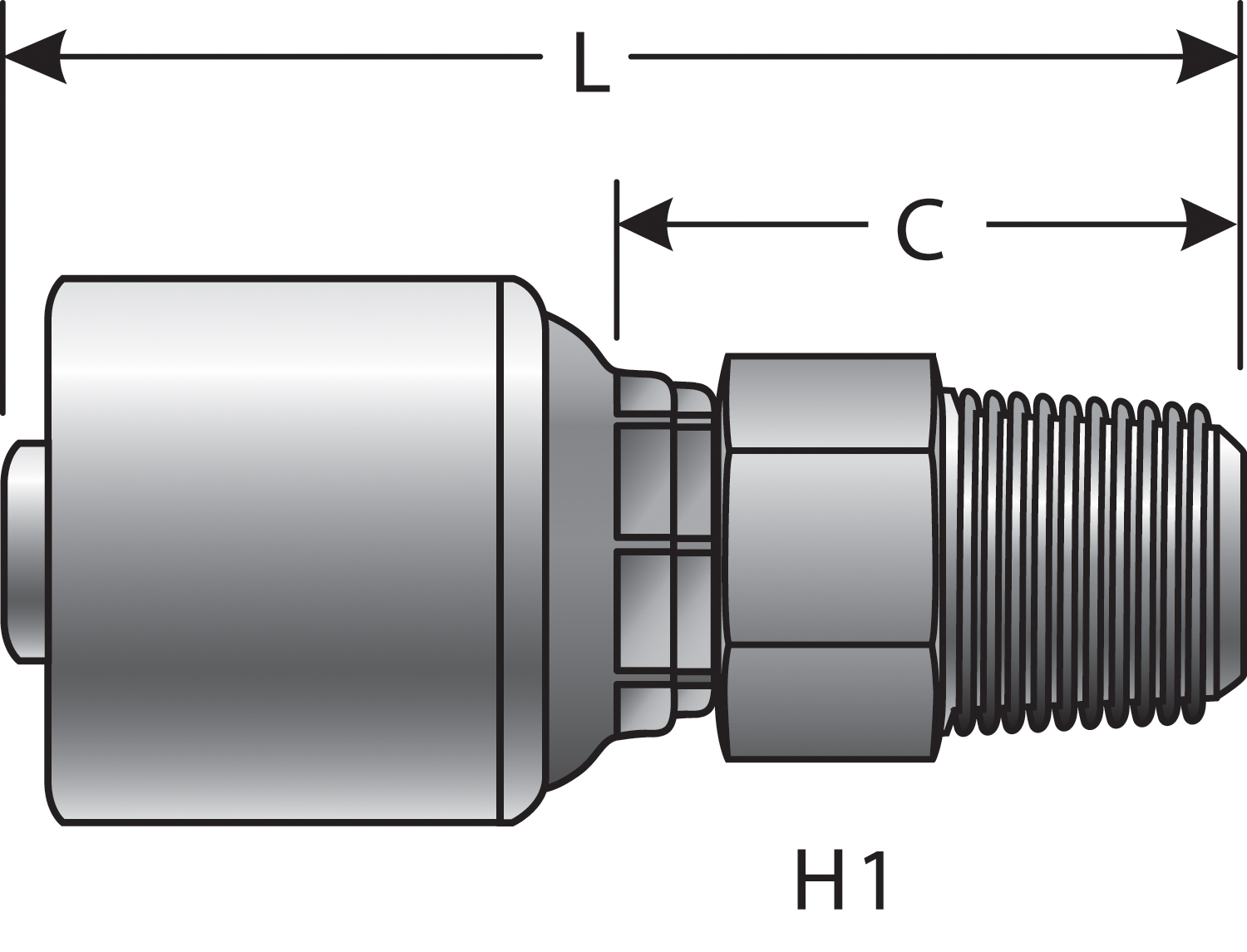

  • Male Pipe (NPTF - 30 Cone Seat) (MegaCrimp)
Weight
0.3600
Gender:Male
Swivel:No
Thread Size:3/4-14
Seal Type:Thread Interference/Mated Angle
Inside Diameter:.5
Length:2.95

Compatibility


Alternative Part Numbers

Dayco 100888
Dayco 108251
Dayco 151251
Aeroquip 1AA12MP8
Aeroquip FJ9121-1208S
Caterpillar 124-1901
Goodyear 13615-0812
Goodyear 14615-0812
Goodyear 14645-0812
Goodyear B2-NPM-0812
Goodyear T7-NPM-0812
Goodyear T8-NPM-0812
Kurt Hydraulics MP-8-12
NAPA G25100-0812
Parker 10143-12-08
Parker 10143-12-8
Parker 101HY-12-8
Weatherhead 08U112
Weatherhead 08Z112
Dayco 124-1901

Related Parts
