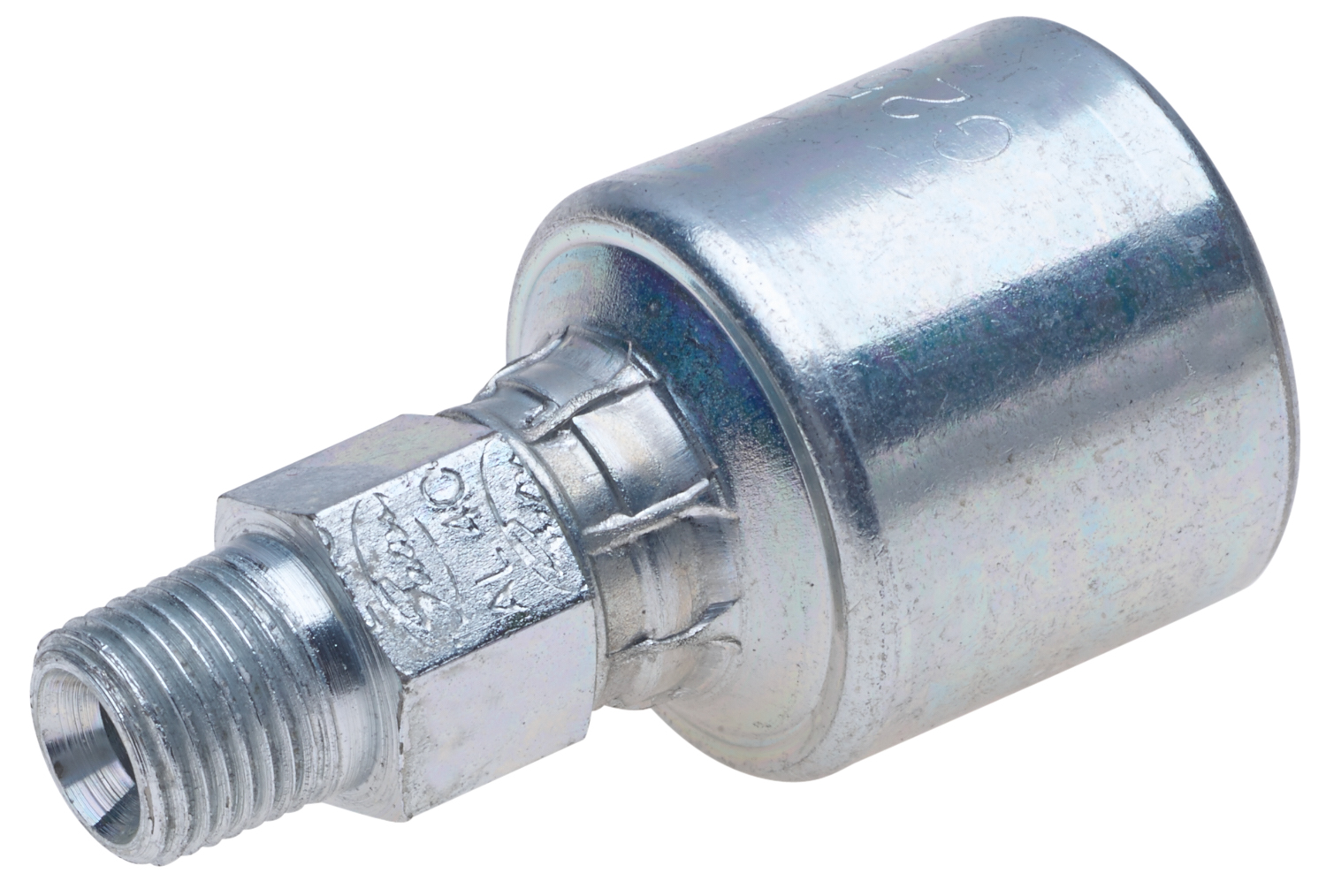

Hydraulic Coupling / Adapter - G25100-0808

Hydraulic Coupling / Adapter

Male Pipe (NPTF - 30 Cone Seat) (MegaCrimp)

Gates Corporation MegaCrimp Part No: G25100-0808

$10.12

Specifications

The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose.

Weight

0.2700

Gender: Male
Swivel: No
Thread Size: 1/2-14
Seal Type: Thread Interference/Mated Angle
Inside Diameter: .5

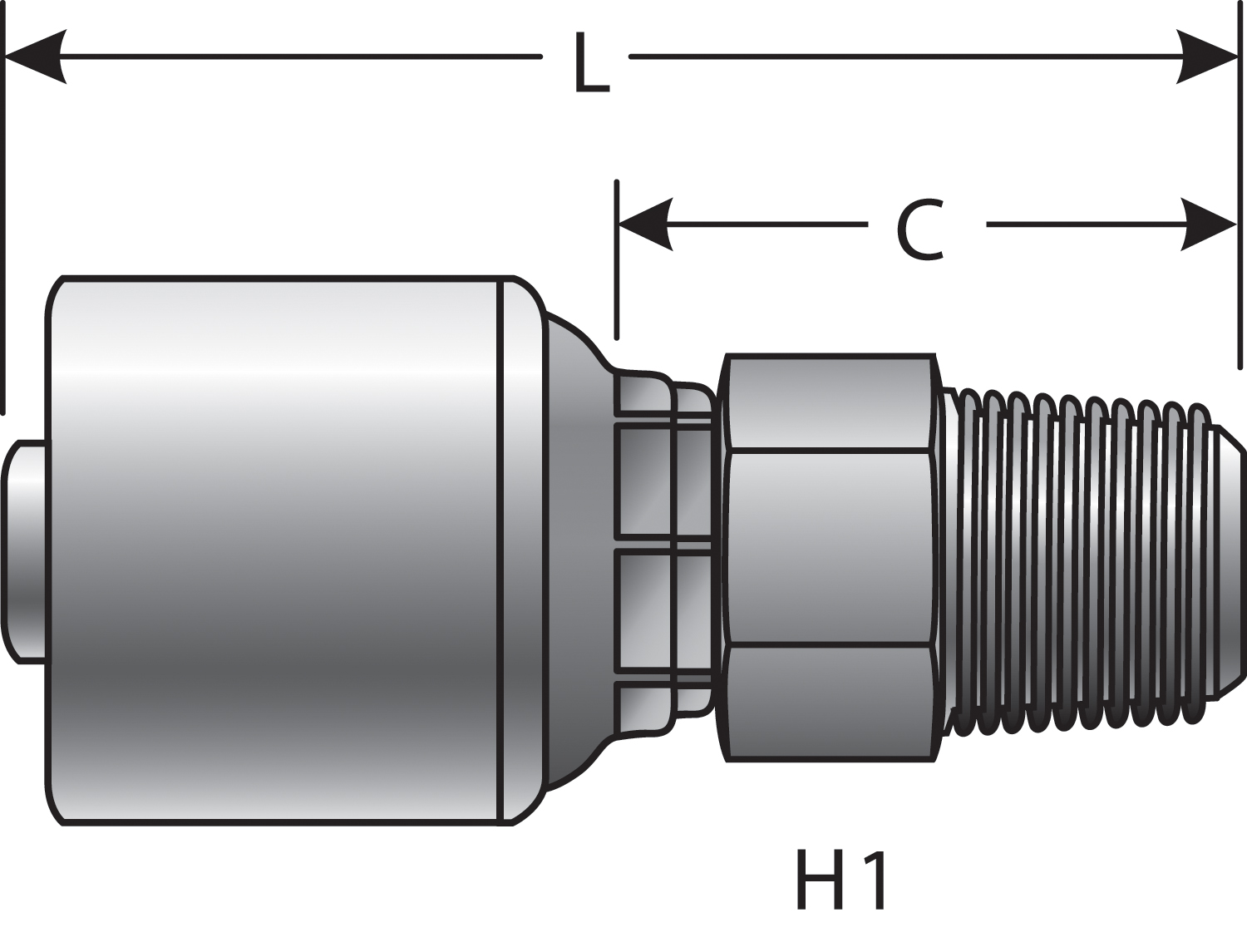

Length: 2.87

Compatibility

Alternative Part Numbers

OEM: Gates G25100-0808
Gates 8G-8MP

Aeroquip
1AA8MP8
Aeroquip
1GA8MP8
Aeroquip
FJ9121-0808S
Caterpillar
124-1900
Dayco
100886
Dayco
108249
Dayco
108249BK
Dayco
151249
Goodyear
13615-0808
Goodyear
14615-0808
Goodyear
36615-0808
Goodyear
B2-NPM-0808
Goodyear
T8-NPM-0808
Kurt Hydraulics
MP-8-8
NAPA
G25100-0808
Parker
10143-08-08
Parker
10143-8-8
Parker
101HY-8-8
Weatherhead
08E108
Weatherhead
08EE108
Weatherhead
08S108
Weatherhead
08U108
Weatherhead
08Z108
Weatherhead
26508P108
Weatherhead
33808P108
