Specifications

The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose.

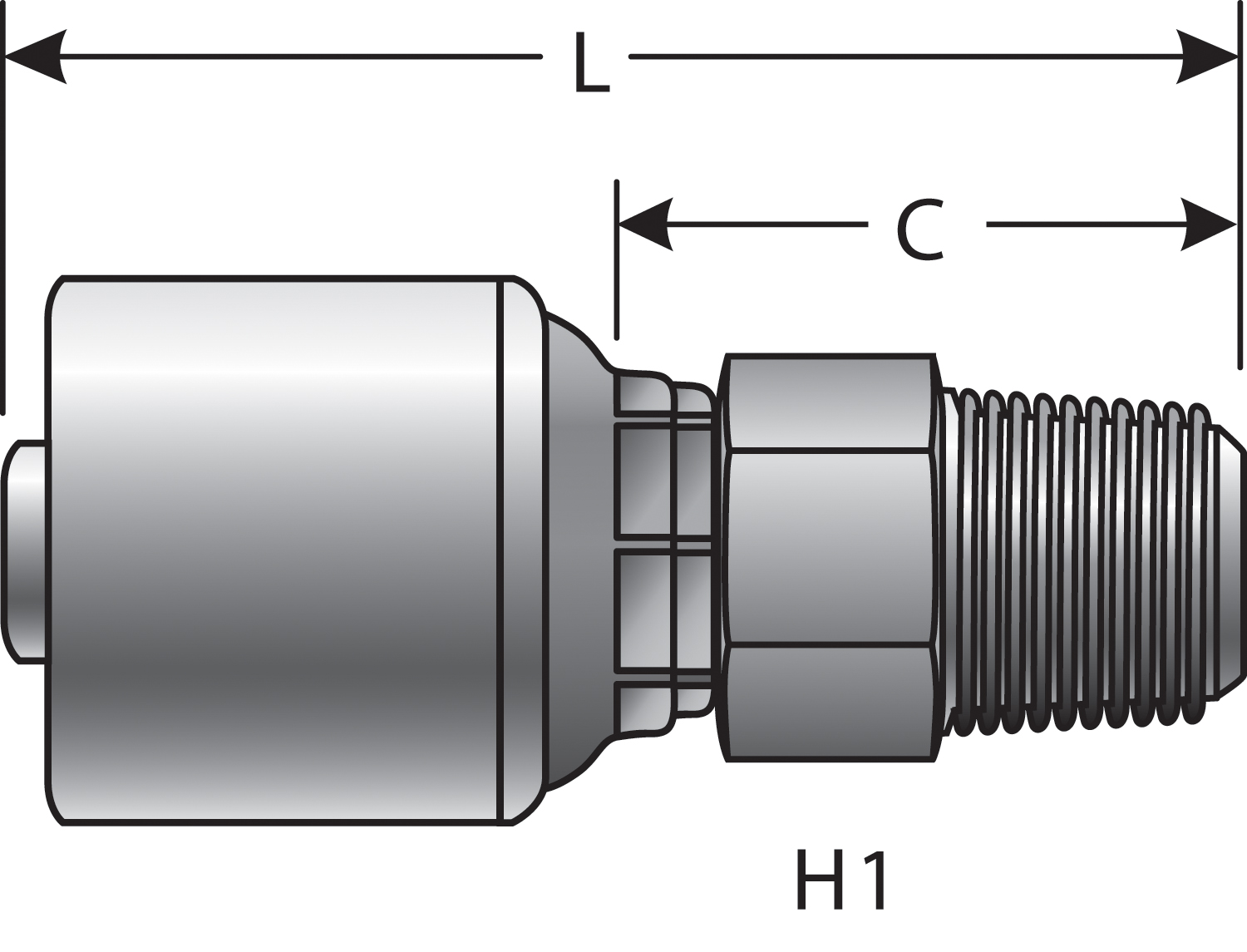

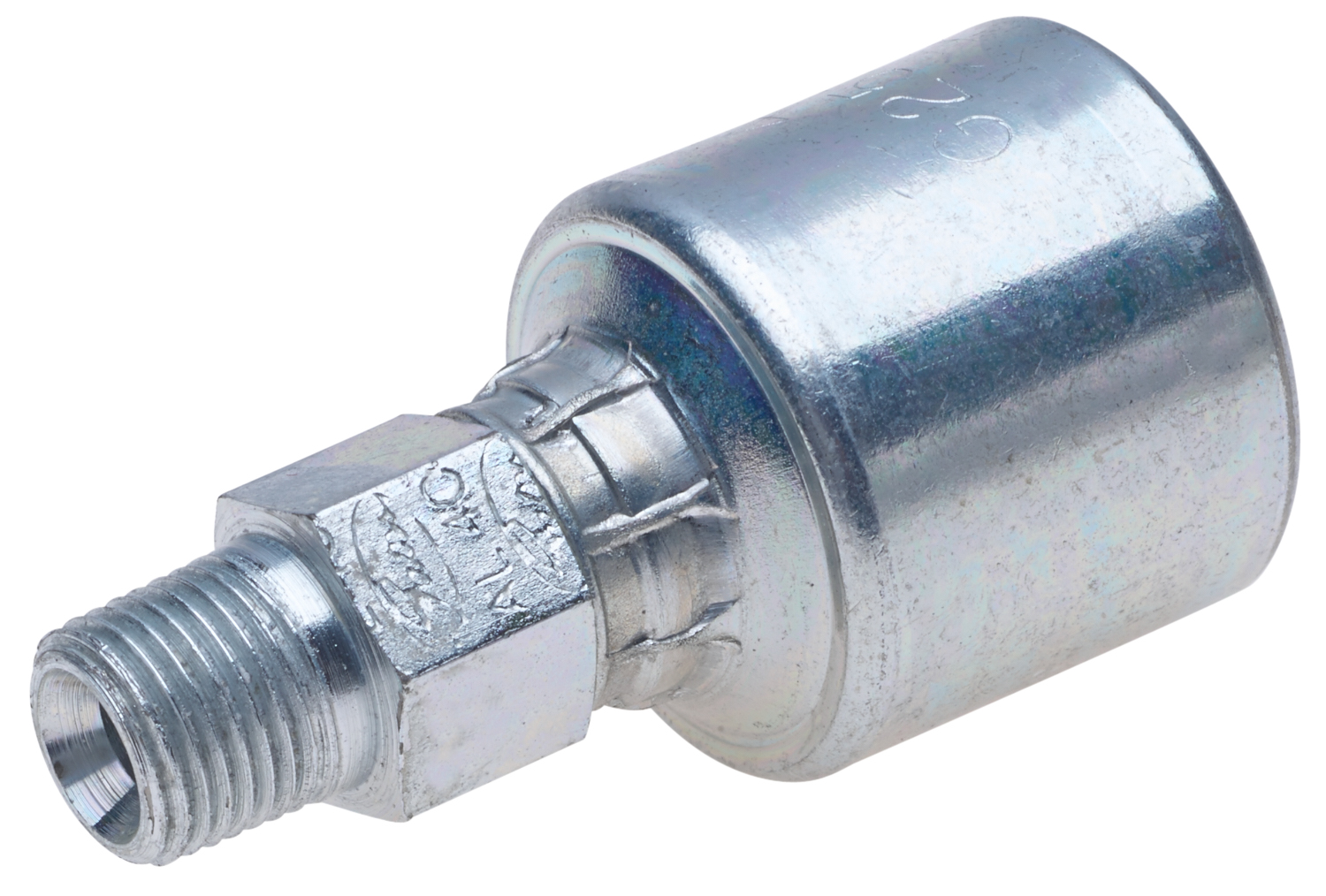

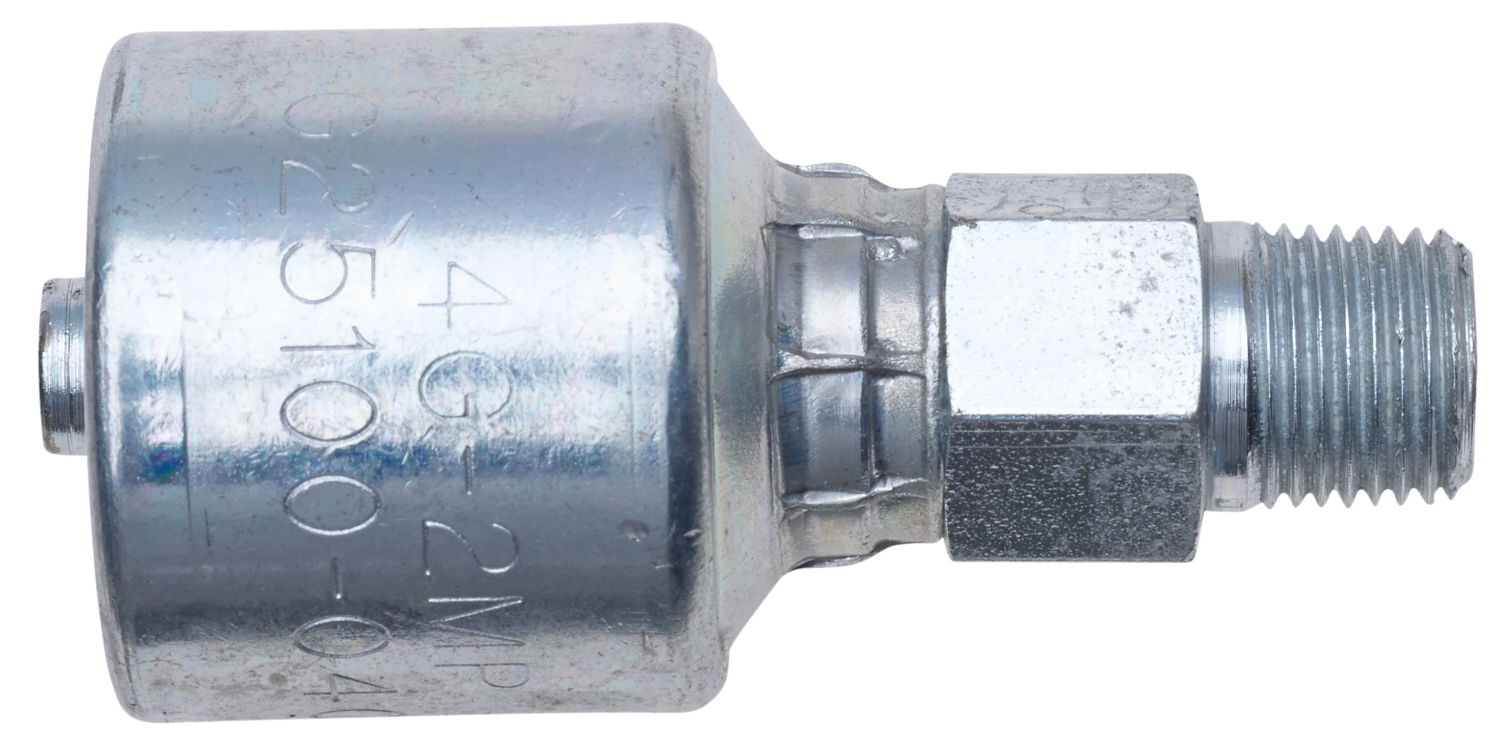

  • Male Pipe (NPTF - 30 Cone Seat) (MegaCrimp)
Weight
0.2300
Gender:Male
Swivel:No
Thread Size:1/2-14
Seal Type:Thread Interference/Mated Angle
Inside Diameter:.375
Length:2.51

Compatibility


Alternative Part Numbers

Dayco 100883
Dayco 108247
Dayco 108247BK
Dayco 108253
Dayco 151247
Dayco HY06-08MP
Aeroquip 1AA8MP6
Aeroquip FJ9121-0806S
Caterpillar 124-1898
Goodyear 13615-0608
Goodyear 14615-0608
Goodyear B2-NPM-0608
Goodyear T8-NPM-0608
Kurt Hydraulics MP-6-8
NAPA G25100-0608
Parker 10143-08-06
Parker 10143-8-6
Parker 101HY-8-6
Weatherhead 06E108
Weatherhead 06EE108
Weatherhead 06U108
Weatherhead 06Z108
Weatherhead 33806P108
Weatherhead 6E-108
Weatherhead 8E108
Dayco 8E108
