Specifications

The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose.

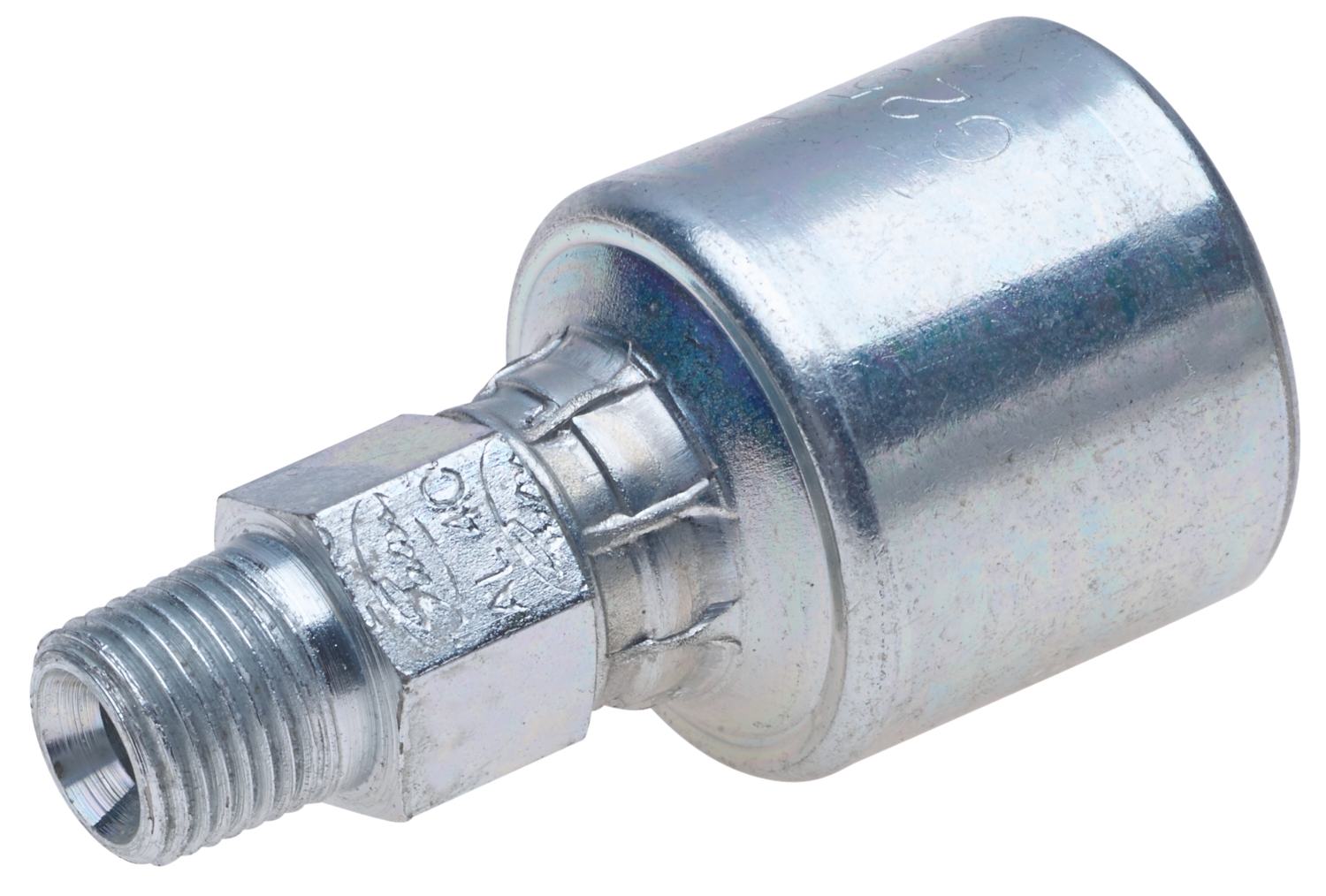

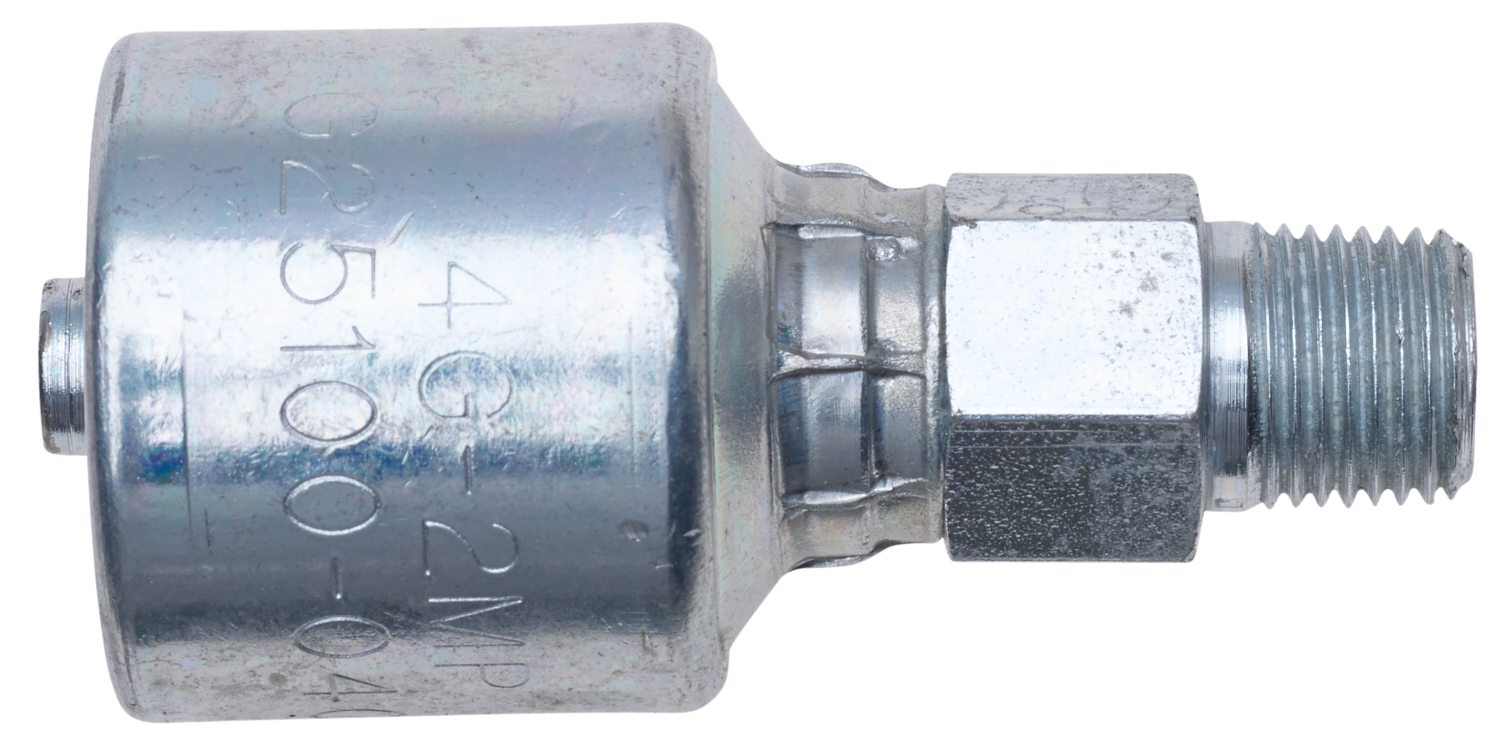

  • Male Pipe (NPTF - 30 Cone Seat) (MegaCrimp)
Gender:Male
Swivel:No
Thread Size:3/8-18
Seal Type:Thread Interference/Mated Angle
Inside Diameter:.25

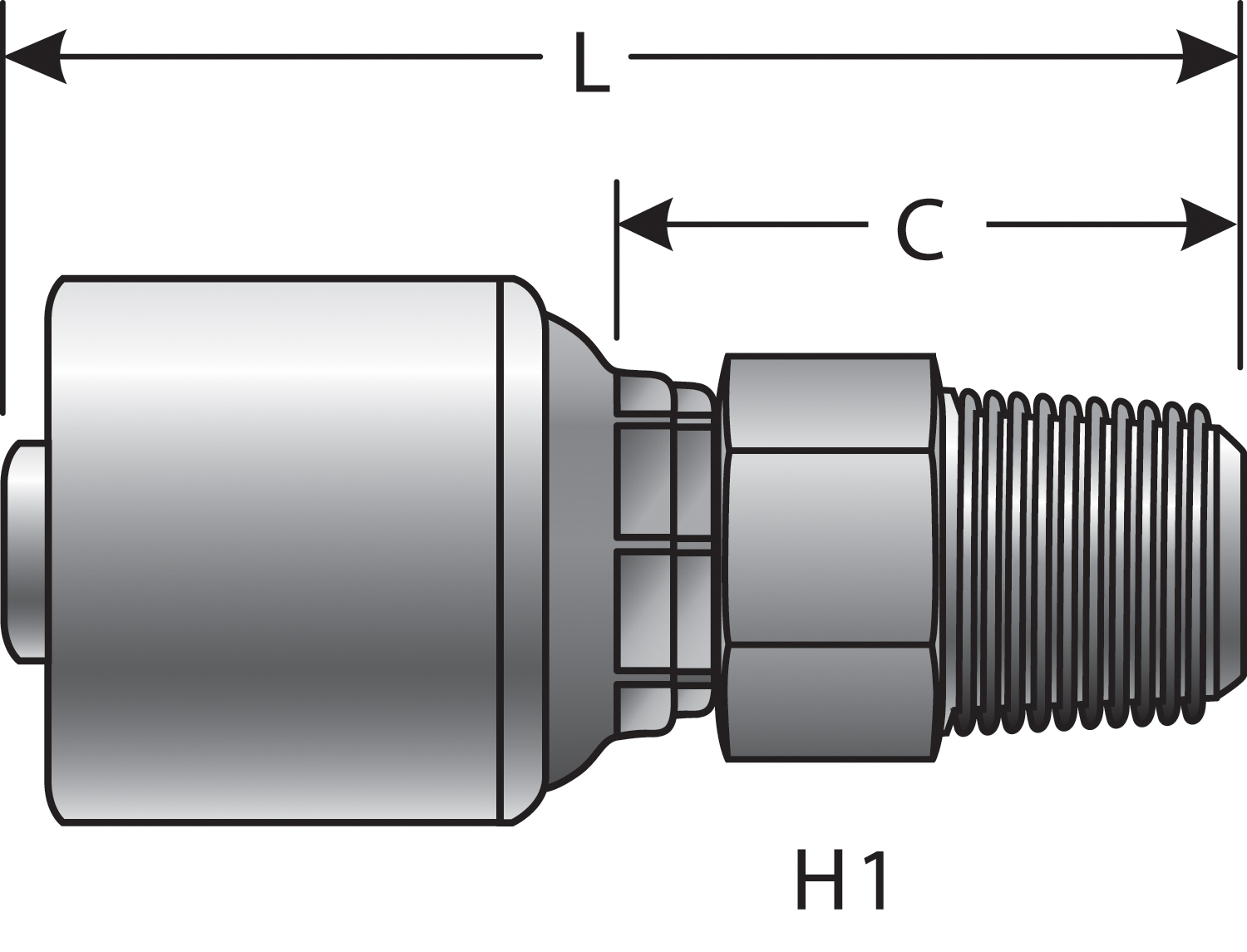

Length:2.17
Weight
0.1500

Compatibility


Alternative Part Numbers

  • Aeroquip 1AA6MP4
  • Aeroquip FJ9121-0604S
  • Caterpillar 124-1892
  • Dayco 100878
  • Dayco 108243
  • Dayco 151243
  • Dayco FJ9121-0604S
  • Goodyear 13615-0406
  • Goodyear 14615-0406
  • Goodyear B2-NPM-0406
  • Goodyear T8-NPM-0406
  • Kurt Hydraulics MP-4-6
  • NAPA G25100-0406
  • Parker 10143-06-04
  • Parker 10143-6-4
  • Parker 101HY-6-4
  • Weatherhead 04E106
  • Weatherhead 04EE106
  • Weatherhead 04U106
  • Weatherhead 04Z106
