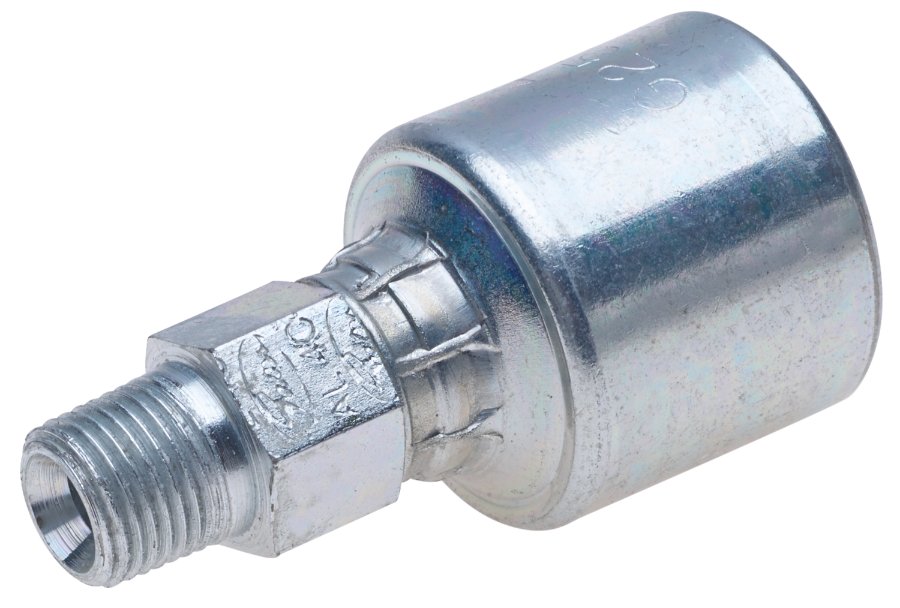

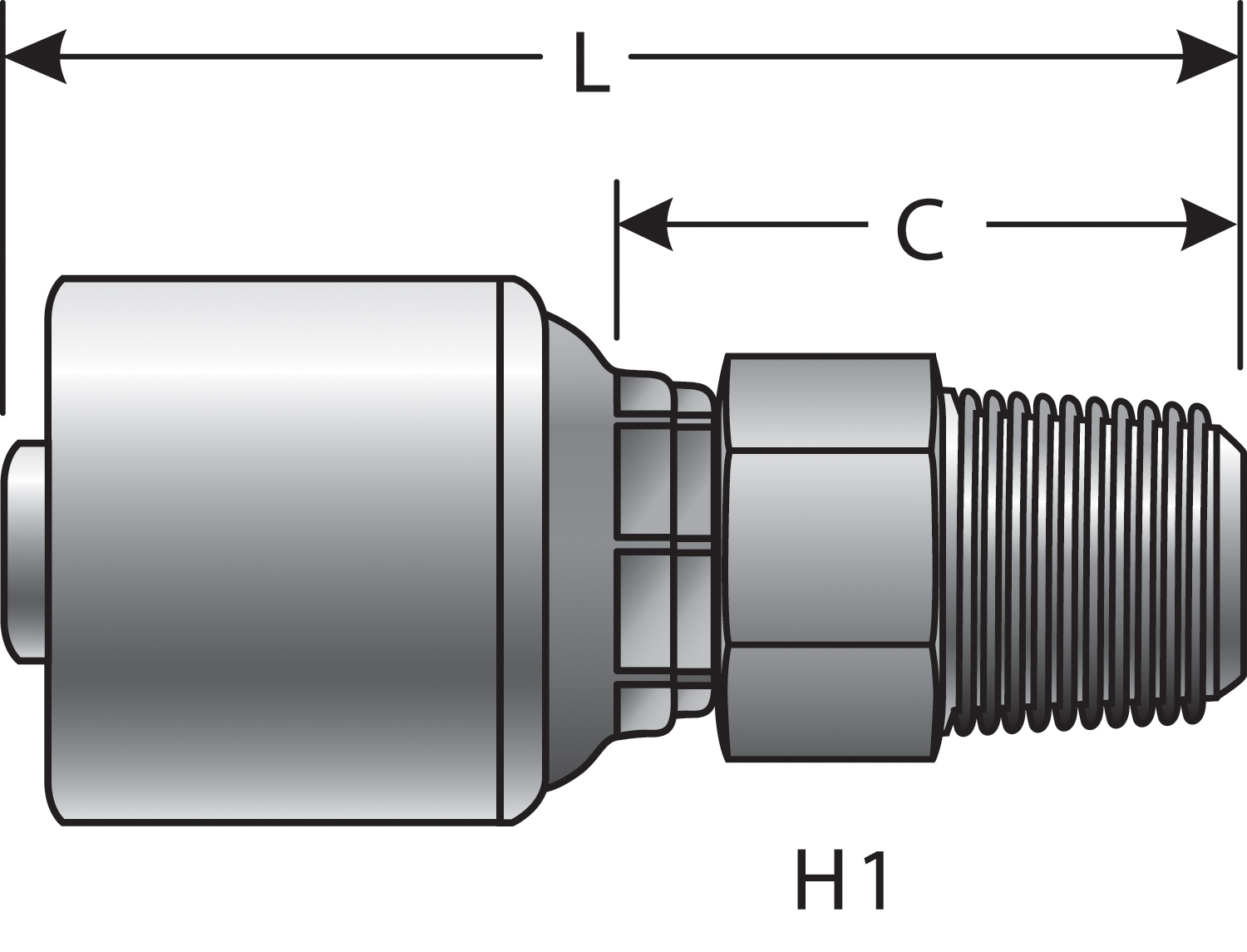

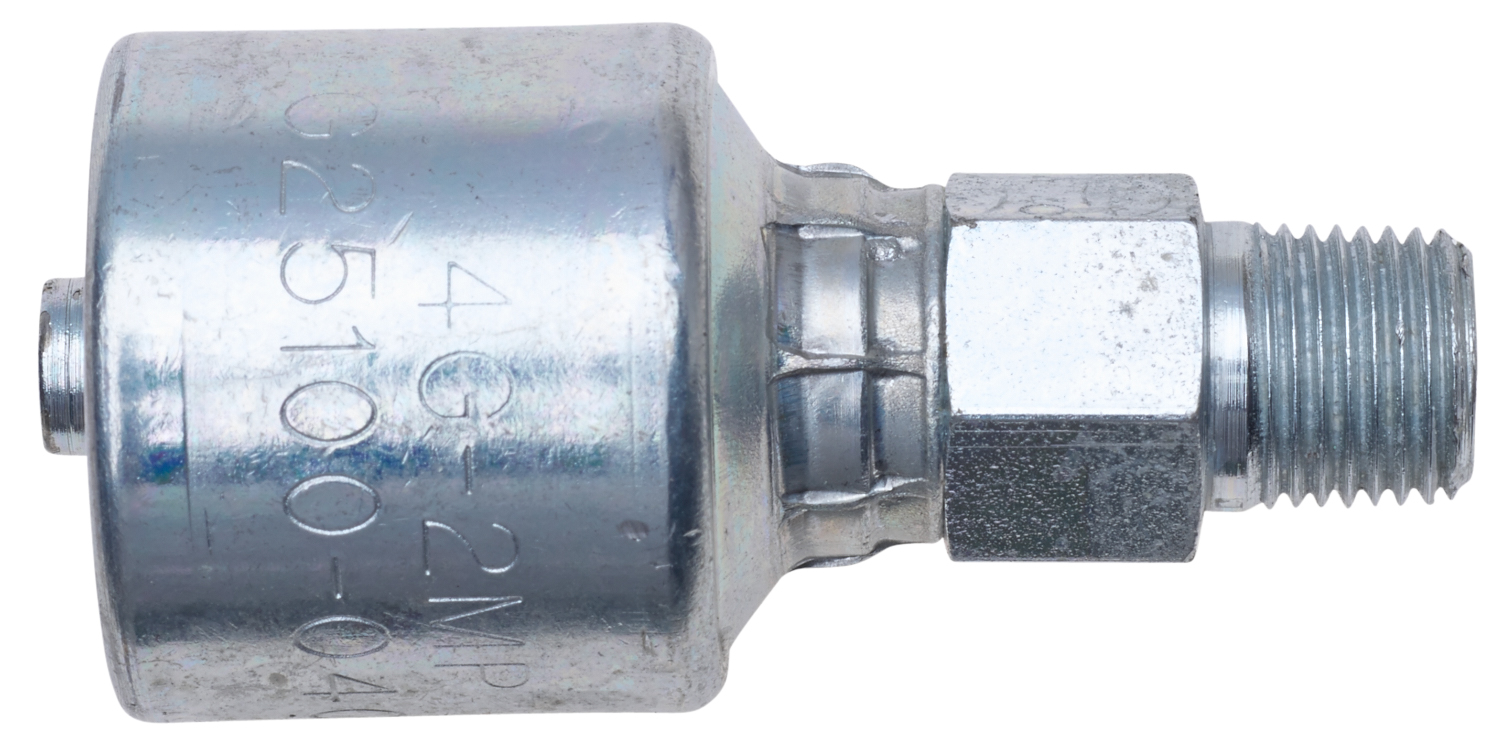

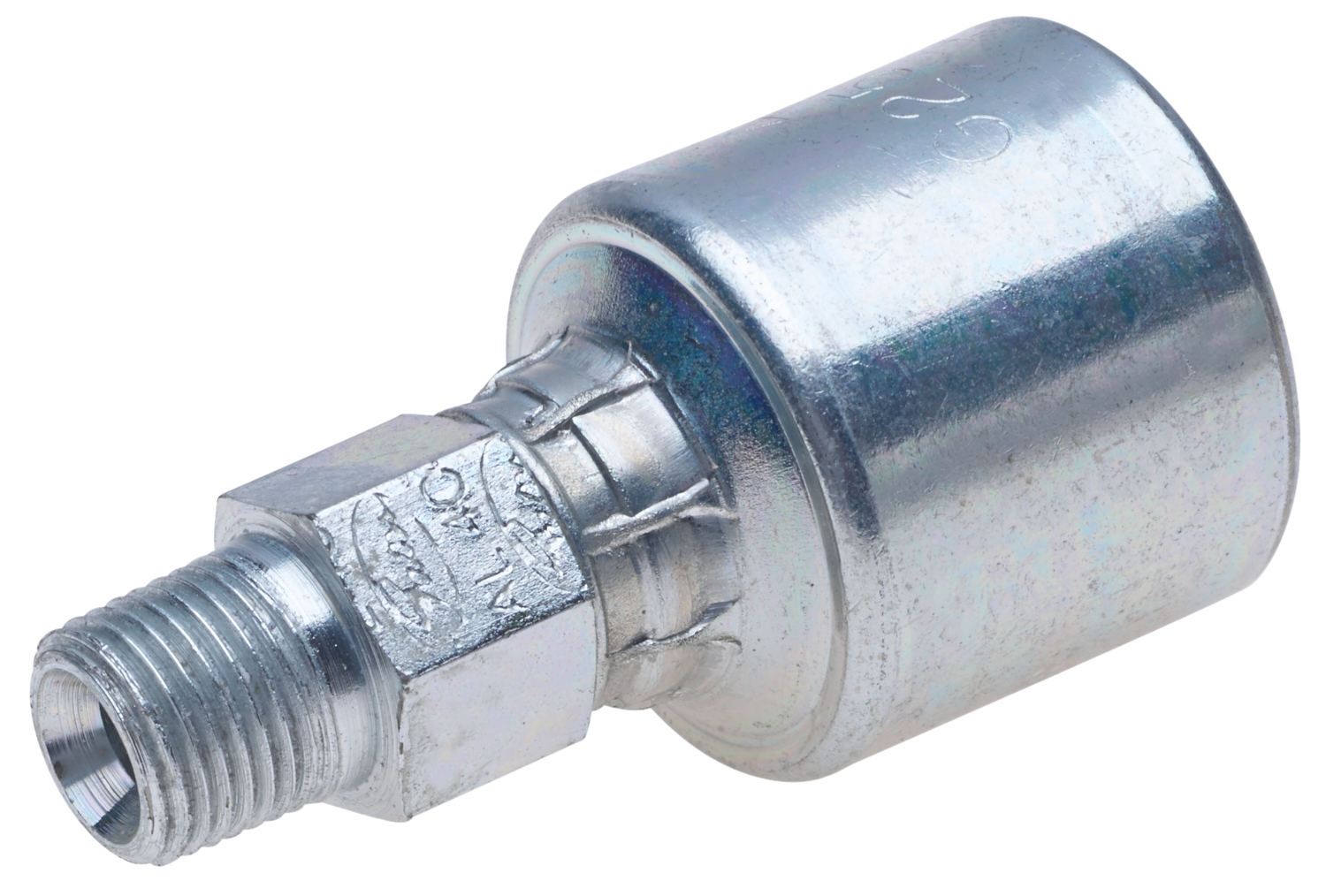

Gates Corporation Hydraulic Coupling / Adapter Part No: G25100-0404
MegaCrimp
Male Pipe (NPTF - 30 Cone Seat) (MegaCrimp)
Specifications
The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose.
Gender: Male
Swivel: No
Thread Size: 1/4-18
Seal Type: Thread Interference/Mated Angle
Inside Diameter: .25
Length: 2.17
Swivel: No
Thread Size: 1/4-18
Seal Type: Thread Interference/Mated Angle
Inside Diameter: .25
Length: 2.17
Weight
0.1300
Compatibility
Alternative Part Numbers
- Aeroquip 1AA4MP4
- Aeroquip 1GA4MP4
- Aeroquip FJ9121-0404S
- Caterpillar 124-1891
- Dayco 100877
- Dayco 108241
- Dayco 151241
- Goodyear 13615-0404
- Goodyear 14615-0404
- Goodyear B2-NPM-0404
- Goodyear T8-NPM-0404
- Kurt Hydraulics MP-4-4
- NAPA G25100-0404
- Parker 10143-04-04
- Parker 10143-4-4
- Parker 101HY-4-4
- Weatherhead 04E104
- Weatherhead 04EE104
- Weatherhead 04M104
- Weatherhead 04S104
- Weatherhead 04U104
- Weatherhead 04Z104
