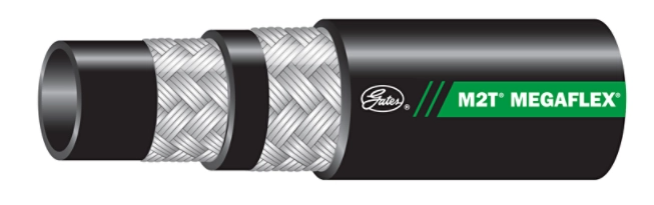

Wire Braid Hose
The Gates 85605EA M2T™ MegaFlex 2-Wire Braid Hose offers compact, flexible routing with 1″ inner diameter and 1.39″ outer diameter. At 50 ft length, it delivers 2,500 psi continuous working pressure and 10,000 psi burst strength, exceeding SAE 100R16 standards. Its two high-tensile wire braids and abrasion-resistant cover ensure long-lasting durability. A smart solution for tight hydraulic layout, available through Wofford Truck Parts.
$20.85
Specifications
The Gates 85605EA (16M2T × 50 ft) M2T™ MegaFlex Wire Braid Hose is engineered for tight hydraulic system installations where durability meets compact design. Engineered with 1″ (25.4 mm) inner diameter and 1.39″ (35.3 mm) outer diameter, it outperforms standard hoses while taking up less space. It supports a continuous working pressure of 2,500 psi and a burst pressure of 10,000 psi, meeting and exceeding SAE 100R16, ISO, and EN specifications.
Constructed with dual high-tensile steel wire braids, a nitrile tube, and a tough modified nitrile Type C2 cover, this hose offers superior abrasion, oil, and weather resistance. It also delivers a bend radius as tight as one-third of the SAE standard, allowing for easier routing in constrained spaces. Compatible with modern couplings like GlobalSpiral™ (G20), GlobalSpiral™ Plus (G22), MegaCrimp™ (G25), and stainless steel options. It handles up to 600,000 impulse cycles and is available with rugged XtraTuff™ and MegaTuff™ covers for extreme environments.
Available from Wofford Truck Parts, this hose enhances reliability and simplifies hydraulic system design.
Compatibility
Alternative Part Numbers
Dayco 011416
Dayco 011416A
Dayco 11416
Weatherhead H24516
Weatherhead H28016
Weatherhead H29016
Goodyear SR16SC-12X50
Goodyear SR16SC-16X50
NAPA 85605
