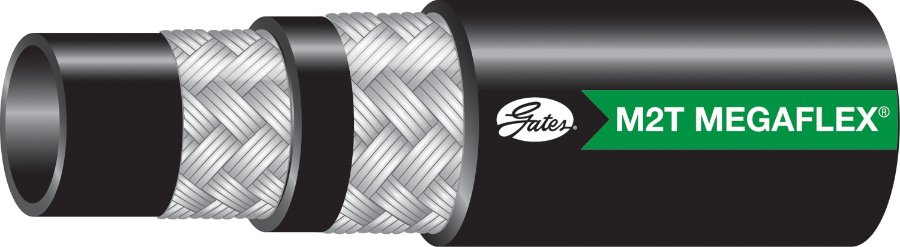

Gates Corporation Hydraulic Hose Part No: 70390

$6.29

M2T

The Gates 70390 Hydraulic Hose is engineered for high-pressure applications, offering a maximum working pressure of 6000 PSI and a burst pressure of 24000 PSI. Crafted from durable nitrile (Type C) with a black synthetic rubber cover (Modified Nitrile - Type C2), this hose ensures reliability and longevity in demanding environments. The color-coded layline provides easy identification, while the 550 ft length makes it suitable for various hydraulic systems. Whether in industrial or automotive settings, this hose delivers exceptional performance under extreme pressure, ensuring fluid transfer efficiency and safety.

Specifications

M2T hose is recommended for high-pressure hydraulic oil line applications. It has smaller exterior dimensions and significantly tighter bend radius than competitive R16 hoses, making it easy to route and install in tight areas. M2T hose is compatible with biodegradable hydraulic fluids like polyolester, polyglycols and vegetable oils as well as petroleum-based fluids. xceeds SAE 100R16, SAE 100R2, ISO 11237 2SC R16 and ISO 1436 2SN R2 working pressure, minimum bend radius requirements and performance requirements of EN 857 2SC and EN 853 2SN. M2T hose has smaller exterior dimensions and significantly tighter bend radius. Also available with XtraTuff™ or MegaTuff™ covers. XtraTuff hose lasts up to 25 times longer than standard hose. MegaTuff hose lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance.

M2T MegaFlex 2-Wire Braid Hose - SAE 100R16

Cover Color: Black
Cover Material: Synthetic Rubber - Modified Nitrile - Type C2 - Color Coded Layline
Maximum Working Pressure: 6000
Hose Material: Nitrile - Type C
Length: 550
Burst Pressure: 24000
