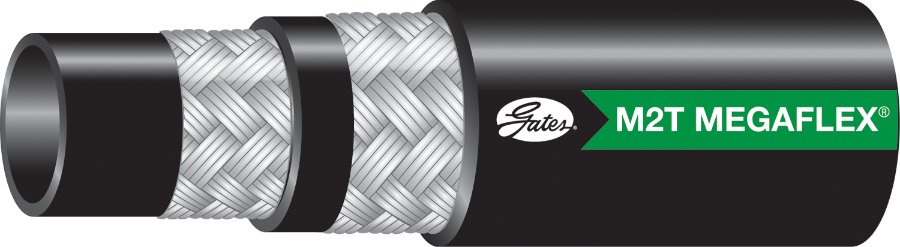

Gates Corporation Hydraulic Hose Part No: 70392

$8.40

M2T

Gates Hydraulic Hose 70392 is expertly engineered for high-performance hydraulic applications, featuring M2T MegaFlex 2-Wire Braid construction that meets SAE 100R16 standards. With a maximum working pressure of 4300 PSI and a burst pressure of 17200 PSI, this hose delivers reliable operation in demanding environments. Crafted from high-quality nitrile and protected by a black synthetic rubber cover, it offers exceptional resistance to oils, weathering, and abrasion. The color-coded layline aids in easy identification during installation. Measuring 330 feet in length, the Gates 70392 hydraulic hose, also known as the Kurt hose, is ideal for various industrial and mobile hydraulic systems, ensuring consistent, long-lasting performance where flexibility and resilience are crucial.

Specifications

M2T hose is recommended for high-pressure hydraulic oil line applications. It has smaller exterior dimensions and significantly tighter bend radius than competitive R16 hoses, making it easy to route and install in tight areas. M2T hose is compatible with biodegradable hydraulic fluids like polyolester, polyglycols and vegetable oils as well as petroleum-based fluids. Exceeds SAE 100R16, SAE 100R2, ISO 11237 2SC R16 and ISO 1436 2SN R2 working pressure, minimum bend radius requirements and performance requirements of EN 857 2SC and EN 853 2SN. M2T hose has smaller exterior dimensions and significantly tighter bend radius. Also available with XtraTuff™ or MegaTuff™ covers. XtraTuff hose lasts up to 25 times longer than standard hose. MegaTuff hose lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance.

M2T MegaFlex 2-Wire Braid Hose - SAE 100R16

Cover Color: Black
Cover Material: Synthetic Rubber - Modified Nitrile - Type C2 - Color Coded Layline
Maximum Working Pressure: 4300
Hose Material: Nitrile - Type C
Length: 330
Burst Pressure: 17200

Weight

125
