Gates Corporation Hydraulic Hose Part No: 70391

$7.35

M2T

Gates Hydraulic Hose 70391 is engineered for exceptional flexibility and durability with its M2T MegaFlex 2-Wire Braid construction meeting SAE 100R16 standards. Designed for high-pressure applications, this hose supports a maximum working pressure of 5000 PSI and a burst pressure of 20000 PSI. Constructed from durable nitrile with a black synthetic rubber cover, it provides excellent resistance to oil, weathering, and abrasion. The color-coded layline simplifies identification and installation. At 385 feet in length, the Gates 70391 is ideal for a wide range of industrial and mobile equipment, including construction and agricultural machinery, offering reliable performance and longevity under demanding conditions.

Specifications

M2T hose is recommended for high-pressure hydraulic oil line applications. It has smaller exterior dimensions and significantly tighter bend radius than competitive R16 hoses, making it easy to route and install in tight areas. M2T hose is compatible with biodegradable hydraulic fluids like polyolester, polyglycols and vegetable oils as well as petroleum-based fluids. Exceeds SAE 100R16, SAE 100R2, ISO 11237 2SC R16 and ISO 1436 2SN R2 working pressure, minimum bend radius requirements and performance requirements of EN 857 2SC and EN 853 2SN. M2T hose has smaller exterior dimensions and significantly tighter bend radius. Also available with XtraTuff™ or MegaTuff™ covers. XtraTuff hose lasts up to 25 times longer than standard hose. MegaTuff hose lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance.

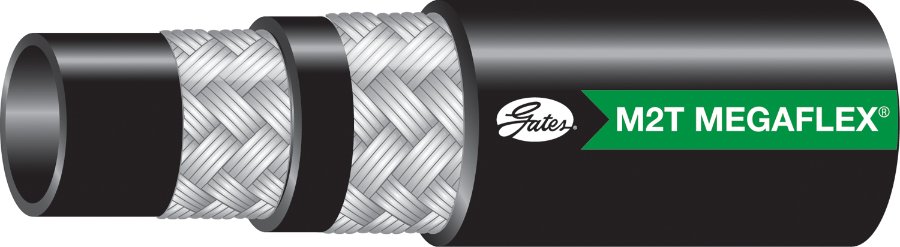

M2T MegaFlex 2-Wire Braid Hose - SAE 100R16

Cover Color: Black
Cover Material: Synthetic Rubber - Modified Nitrile - Type C2 - Color Coded Layline
Maximum Working Pressure: 5000
Hose Material: Nitrile - Type C
Length: 385
Burst Pressure: 20000

Weight
