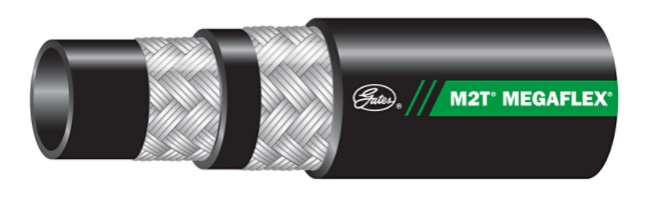

Gates Corporation Wire Braid Hose Part No: 85603EA
$12.08
The Gates 85603EA M2T™ MegaFlex 2-Wire Braid Hose delivers exceptional high-pressure performance with a compact design and ultra-tight bend radius. Measuring 50 ft long with .625″ ID and .95″ OD, it withstands up to 3,800 psi working pressure and 15,200 psi burst. Its durable nitrile tube, rugged cover, and steel-wire reinforcement make it tough and flexible. Ideal for critical hydraulic lines. Available now at Wofford Truck Parts.
Specifications
The Gates 85603EA (10M2T X 50 FT) M2T™ MegaFlex 2-Wire Braid Hose is engineered for demanding high-pressure hydraulic applications. With a compact profile—.625″ inside diameter and .95″ outside diameter—it fits tighter spaces while delivering outstanding performance. It boasts a working pressure of 3,800 psi and burst capability of 15,200 psi, outperforming standard SAE 100R16 hoses.
Constructed with dual high-tensile steel wire braids, a nitrile tube, and a tough modified nitrile (Type C2) cover, it resists flame, abrasion, and weathering and includes MSHA 2G flame resistance. It also meets SAE, ISO, and EN specifications, and delivers industry-leading flexibility with a minimal bend radius of just 3 inches.
Compatible with GlobalSpiral™, MegaCrimp™, and Stainless Steel Braid/Spiral couplings, this hose supports up to 600,000 impulse cycles. Enhanced versions include XtraTuff™ (up to 25× longer) and MegaTuff™ (up to 300× longer) abrasion resistance.
Compatibility
Alternative Part Numbers
- Dayco 010210A
- Dayco 011410
- Dayco 11410
- NAPA 85603
- Weatherhead H24510
- Weatherhead H28010
- Weatherhead H29010
