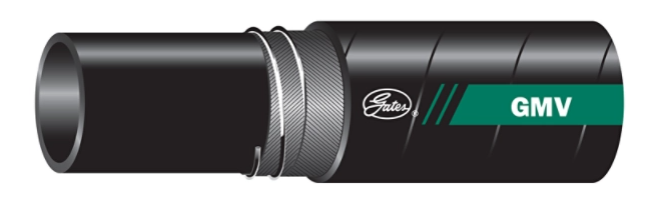

Return Line And Suction Hose
The Gates 85579EA Return Line & Suction Hose features a 1¼″ inner diameter and is designed for superior flexibility with half the bend radius of SAE 100R4 hoses. Reinforced with double spiral braid and helical spiral-wire, it resists collapse under suction. Rated for –40 °F to +275 °F and compatible with petroleum and water-based hydraulic fluids, it’s ideal for rugged return and suction hydraulics. Available now at Wofford Truck Parts.
$21.89
Specifications
The Gates 85579EA (20GMV X25FT) MegaVac Return Line & Suction Hose is engineered for demanding hydraulic systems, especially in trucks and heavy-duty applications. With a generous 25-foot length, it features a 1.25″ inner diameter and 1.76″ outer diameter, making it capable of handling petroleum and water-based hydraulic fluids reliably.
Advanced reinforcement includes double textile spiral braid with helical spiral-wire, preventing hose collapse under vacuum (up to 25 in Hg), while delivering exceptional flexibility—half the bend radius of standard SAE 100R4 hoses.
Durability is unmatched with a working pressure of 250 psi, burst rating of 1000 psi, and temperature resilience from –40 °F to +275 °F. The black synthetic rubber (nitrile tube and neoprene cover) resists abrasion, oil, and flame. Compatible couplings include GL (G43 Series), GlobalSpiral Plus (G22), and MegaCrimp (G25).
Certified to marine and heavy-industry standards (ABS, DNV-GL with HeatGuard, MSHA 2G, USCG), this hose offers peace of mind in extreme conditions. A robust solution sold by Wofford Truck Parts.
Compatibility
Alternative Part Numbers
Dayco 11320
Weatherhead H03920
NAPA 85579
