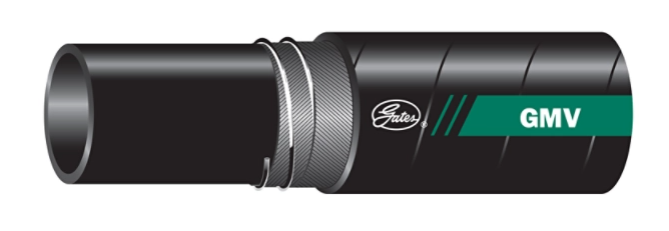

Return Line And Suction Hose
The Gates 85577EA Return Line & Suction Hose is a durable, low-pressure hydraulic hose designed for return and suction applications. Constructed with a double spiral braid and helical wire reinforcement, it resists collapse and delivers excellent flexibility with half the bend radius of SAE 100R4 hoses. Rated for –40 °F to +275 °F and compatible with petroleum and water-based hydraulic fluids, it’s suitable for demanding fleet and industrial setups. Available now at Wofford Truck Parts.
$13.05
Specifications
The Gates 85577EA Return Line & Suction Hose combines flexibility, durability, and performance in a premium hydraulic hose solution. Featuring a black nitrile tube, polychloroprene (neoprene) cover, and reinforced with double spiral braid plus helical spiral wire, it resists collapse while offering superior flexibility—boasting half the bend radius of standard SAE 100R4 hoses.
Rated for a working pressure of 350 psi, with a burst rating of 1400 psi and vacuum resistance up to 25 in Hg, this hose maintains stability across challenging conditions. It operates across a broad temperature range from –40 °F to +275 °F (–40 °C to +135 °C). It’s compatible with GL Couplings (G43 Series), GlobalSpiral™ Plus (G22), and MegaCrimp™ (G25) couplings. With marine-grade certifications such as ABS, DNV-GL (with HeatGuard sleeve), AS, USCG, and flame-resistant MSHA 2G, it’s built for demanding industrial and mobile hydraulic environments. Sold by Wofford Truck Parts, it delivers dependable performance in low-pressure return/suction applications.
Compatibility
Alternative Part Numbers
Weatherhead H03912
NAPA 85577
