Hydraulic Hose

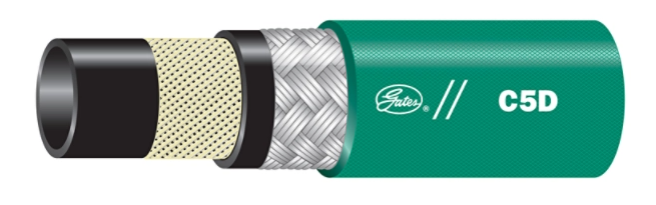

The Gates 85684EA C5D High-Temp Multi-Fluid Hydraulic Hose delivers exceptional performance in demanding environments. With a 1/2″ inner diameter and rated for 1,250 psi working pressure, it handles a wide temperature range of –40 °F to +300 °F. Its oil- and mildew-resistant green cover makes it easy to identify underhood, while the rugged design resists abrasion and fluid exposure. Available in 50-ft lengths from Wofford Truck Parts.
$11.32
Specifications
The Gates 85684EA (10C5D × 50 ft) is a high-temperature, multi-fluid hydraulic hose designed for heavy-duty commercial and fleet applications. Spec’d with a 1/2″ ID and 0.92″ OD, it handles up to 1,250 psi working pressure and boasts a minimum burst rating of 5,000 psi. Its flexible construction (minimum bend radius: 2″) and durable green polyester-braided, synthetic rubber cover ensure excellent resistance to oil, mildew, and abrasion. Rated for a broad operating temperature range from –40 °F to +300 °F (air to +250 °F, phosphate esters to +212 °F), it meets or exceeds DOT FMVSS 106-74, SAE J1402, SAE J1405, and SAE J30R2 standards. Compatible with C5 and C5X field-attachable couplings (G34 series), the 85684EA is a reliable, long-lasting solution for fleet hydraulic, fuel, and coolant lines.
Weight
13.5
Compatibility
Alternative Part Numbers
Weatherhead H16610
Weatherhead H16910
Weatherhead H56910
Gates 85684
Goodyear GUT10X50
NAPA 85684
Weatherhead H16910
Weatherhead H56910
Gates 85684
Goodyear GUT10X50
NAPA 85684
