Hydraulic Hose
The Gates 85680EA C5D High-Temp Multi-Fluid Hydraulic Hose is a versatile 50 ft hose engineered for demanding applications. With a compact 3/16″ inner diameter, it delivers 1,500 psi working pressure and 6,000 psi burst resistance. The hose features a heat- and oil-resistant synthetic rubber tube with a distinctive green, mildew-resistant braided cover. Rated for –40 °F to +300 °F, it’s a reliable, high-temp solution—available now through Wofford Truck Parts.
$8.97
Specifications
The Gates 85680EA Hydraulic Hose (4C5D × 50 ft) is built for high-temperature hydraulic systems needing durable, fluid-compatible routing. With a 3/16″ (0.1875″) ID and 0.52″ OD, it supports a working pressure of 1,500 psi and a burst rating of 6,000 psi—ideal for hydraulic, lubrication, coolant, air brake, and fuel lines in heavy-duty fleet and truck applications.

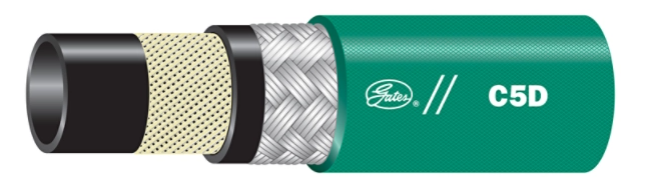

Constructed with a black synthetic rubber (CPE Type J) tube and a green, oil- and mildew-resistant braided cover for easy identification, it withstands high temperatures from –40 °F to +300 °F (air to +250 °F, phosphate ester fluids to +212 °F).
Compatible with C5 and C5X field-attachable couplings (G34 Series), this hose meets or exceeds DOT FMVSS 106-74 Type All, SAE J1402 Type All, SAE J1405, and SAE J30R2 fuel-resistance standards.
Compatibility
Alternative Part Numbers
Weatherhead H16904
Weatherhead H56904
Goodyear GUT04X50
NAPA 85680
