Specifications

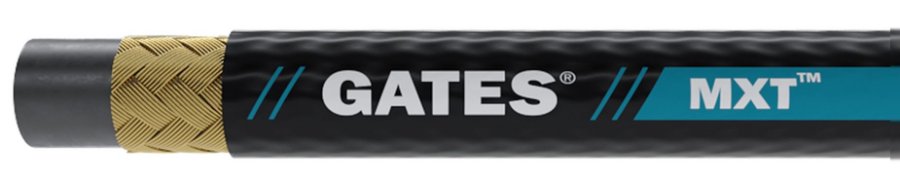

MXT is recommended for high-pressure hydraulic oil lines and designed to address our customers' evolving application challenges. Using materials science and process innovation, combined with a patent-pending construction, Gates now offers a new hydraulic solution that is lighter, stronger, and more flexible.
UPC
770075761983
Minimum Bend Radius (in) 4.75
Minimum Bend Radius (mm) 120.7
Min. Burst Pressure (psi) 14500
Inside Diameter (in) 3/4
Inside Diameter (mm) 19.1
Temperature Range -40°F to +212°F (-40°C to +100°C)
Max. Working Pressure 3125
Max. Working Pressure (Bar) 216
Outside Diameter (in) 1.08
Outside Diameter (mm) 27.4
Minimum Bend Radius (in) 4.75
Minimum Bend Radius (mm) 120.7
Min. Burst Pressure (psi) 14500
Inside Diameter (in) 3/4
Inside Diameter (mm) 19.1
Temperature Range -40°F to +212°F (-40°C to +100°C)
Max. Working Pressure 3125
Max. Working Pressure (Bar) 216
Outside Diameter (in) 1.08
Outside Diameter (mm) 27.4
Compatibility
Alternative Part Numbers
- NAPA 70327
