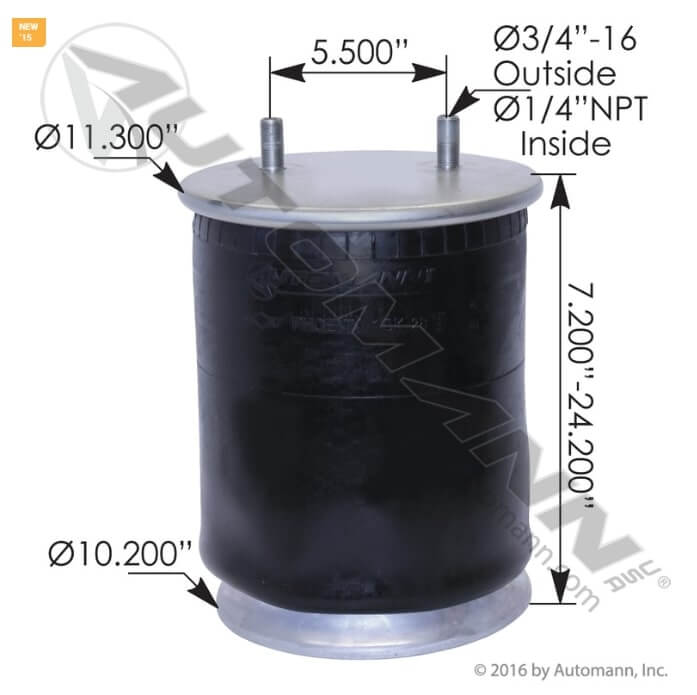

Automann USA Air Spring Rolling Lobe Part No: AB1DK28B-A1069
$275.36
Enhance your vehicle's suspension with the Automann USA Air Spring Rolling Lobe AB1DK28B-A1069, designed for superior performance and durability. This rolling lobe air spring is perfect for Meritor applications, offering a load capacity of 8800 lbs at 100 PSI. It features a robust construction with an aluminum bottom plate and includes a bumper for added protection. The air spring's design height is 13.50 inches, with a maximum height of 23.70 inches and a maximum diameter of 13.70 inches. It boasts natural frequency of 68 CPM, ensuring smooth and stable rides on the road. Available at Wofford Truck Parts, this Automann USA air spring meets stringent quality standards and is a reliable choice for maintaining optimal suspension performance in heavy-duty vehicles.
Specifications
- Aluminum Base
- OE Aftermarket
Type Rolling Lobe
Brand Automann Phoenix
Automann Bellows# 1DK28B
Goodyear Bellows# 566-28-3-020
Contitech Bellows# 11 10.5-19
Load (Lbs) @80 PSI 6900
Load (Lbs) @100 PSI 8800
Natural Freq. (CPM) 68

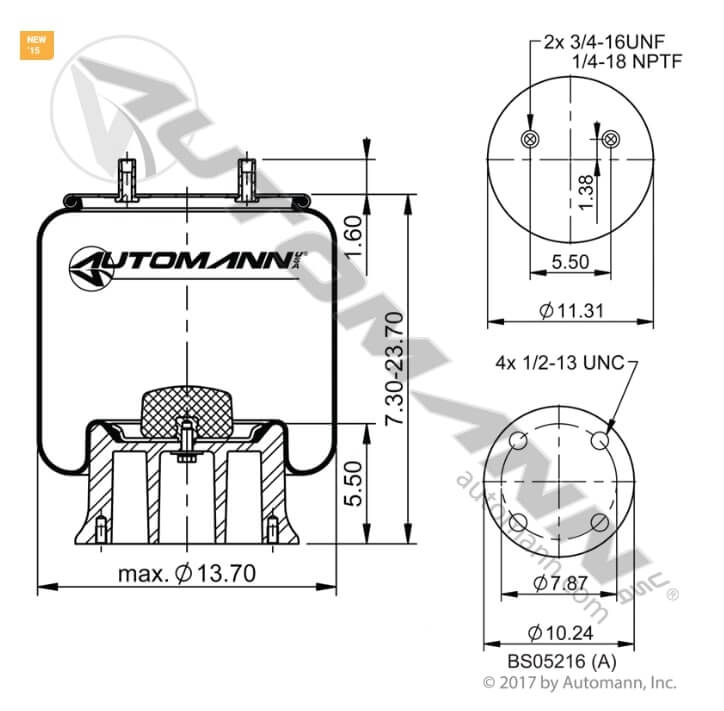

Design Height (In) 13.50
Bottom Plate Type Aluminum
Top Plate Hole/Stud Qty 2
Top Plate Dia. (A) 11.31
Top Plate C to C Dia. (B) 7.75
Bottom Plate Hole/Stud Qty 4
Bottom Plate Dia. (C) 10.24
Bottom Plate C to C Dia. (D) 7.87"
Bottom Part # BS05216
Bumper Yes
Bracket N/A
Max. Height 23.70
Max. Dia. 13.70
Compatibility
Alternative Part Numbers
- OEM: Hendrickson S-23601
- <br />
- AB1DK28B-A1069
- Automann AB1DK28B-A1069
- Dayton 352-1069
- Firestone W01-358-9069
- Goodyear 1R12-069
- Hendrickson S-23601
- Triangle AS-9069
