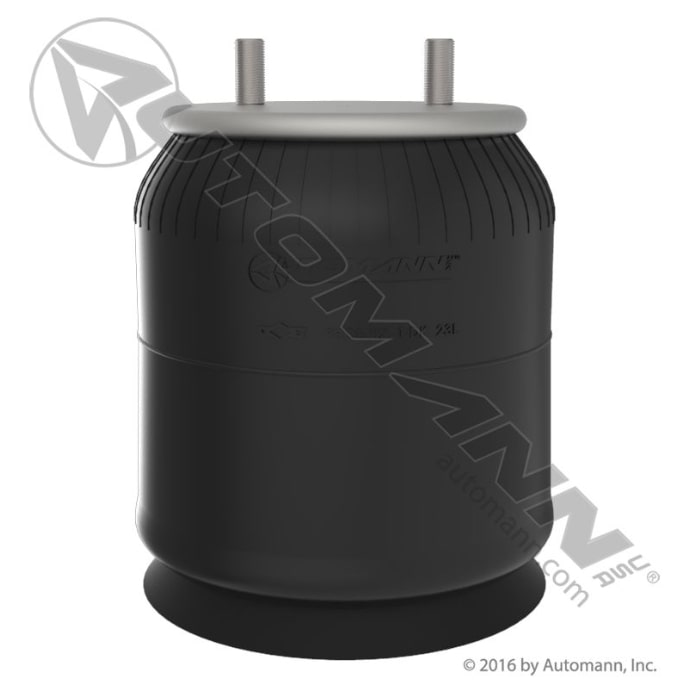

Automann USA Air Spring Rolling Lobe Part No: AB1DK23L-9349

$242.07

The Automann USA Air Spring Rolling Lobe AB1DK23L-9349, available at Wofford Truck Parts, fits Hendrickson Trailer and Reyco Granning applications. This durable rolling lobe air spring ensures optimal load support and performance. Shop now!

Specifications

Improve the performance and load-bearing capacity of your Hendrickson Trailer or Reyco Granning with the Automann USA Air Spring Rolling Lobe AB1DK23L-9349, available at Wofford Truck Parts. This high-quality aftermarket air spring features a rolling lobe design and is compatible with various industry bellows numbers, including Firestone 1T15M-9 and Goodyear 566-24-3-066. With a load capacity of 5700 lbs at 80 PSI and 7200 lbs at 100 PSI, this air spring ensures superior stability and ride quality. The design height of 15.50 inches, along with its durable plastic bottom plate and multiple hole/stud configurations, makes it a versatile and reliable choice for heavy-duty applications. Trust Wofford Truck Parts for premium aftermarket parts that meet your truck's demanding requirements. Enhance your vehicle's suspension system with the Automann USA Air Spring Rolling Lobe AB1DK23L-9349 and experience unmatched performance and durability. Shop now for top-quality truck parts!

Automann’s premier air spring boasts the ability to maintain ride height. Engineered to meet OEM specification while minimizing vibration and load fluctuations. The Air Spring is guaranteed to ensure a smooth ride for driver and cargo alike. Enjoy a quiet and level ride experience with these long lasting Air Springs. Committed to Keeping Trucks Moving
Quality raw material and manufacturer expertise to guarantee performance
Plastic Base allows for optimized weight and cost savings
Features OEM dimensioning for hassle-free assembly
Resistant to oil, lubricants, and averse weather conditions
Manufactured to be environmentally friendly and longer lasting

Applications Hendrickson Trailer Reyco Granning
Type Rolling Lobe
Brand Automann Phoenix
Automann Bellows# 1DK23L
Firestone Bellows# 1T15M-9
Goodyear Bellows# 566-24-3-066
Contitech Bellows# 9 10-19
Triangle Bellows# 6364
Load (Lbs) @80 PSI 5700
Load (Lbs) @100 PSI 7200
Natural Freq. (CPM) 60

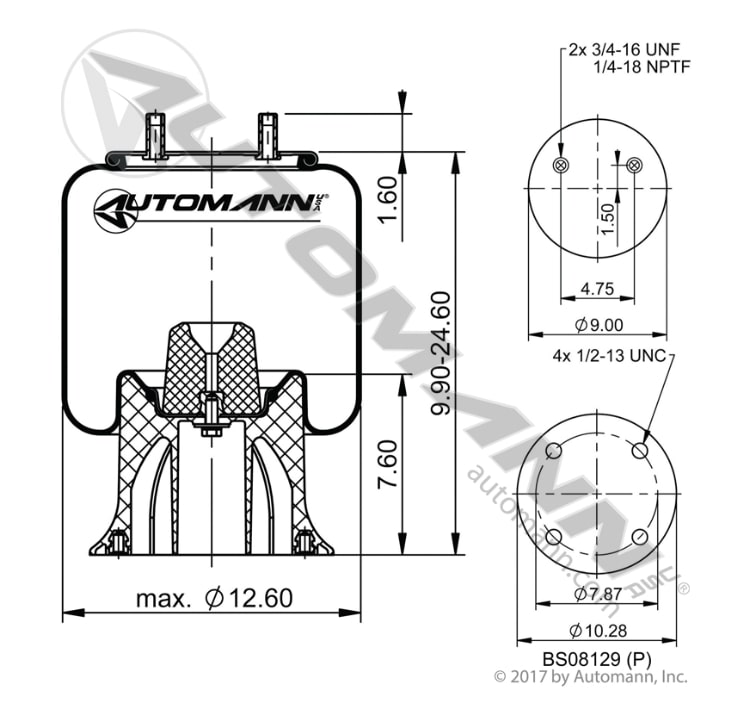

Design Height (In) 15.50
Bottom Plate Type Plastic
Top Plate Hole/Stud Qty 2
Top Plate Dia. (A) 9.00
Top Plate C to C Dia. (B) 4.75
Bottom Plate Hole/Stud Qty 4
Bottom Plate Dia. (C) 10.28
Bottom Plate C to C Dia. (D) 7.87"
Bottom Part # BS08129
Bumper Yes
Bracket N/A
Min. Height 9.90
Max. Height 24.60
Max. Dia. 12.60

Weight

18.34 lbs
