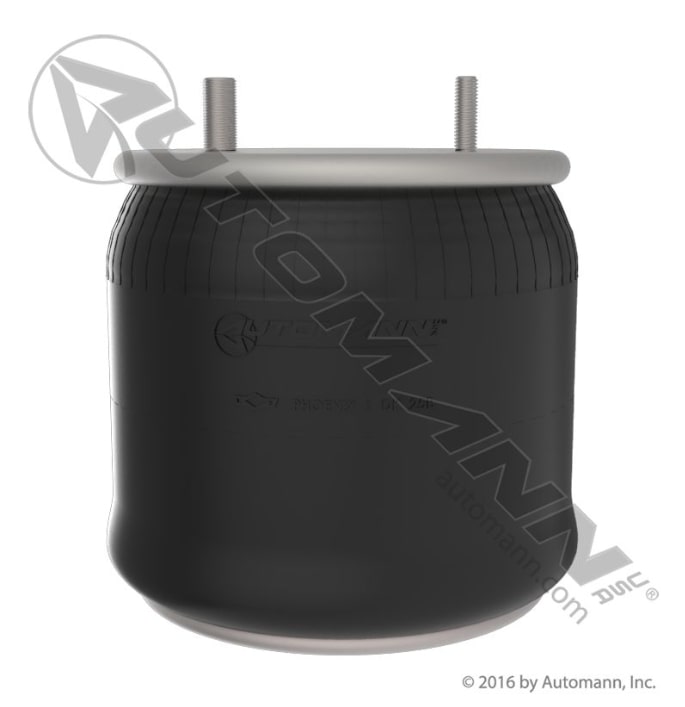

Automann USA Air Spring Rolling Lobe Part No: AB1DK25B-8752

$206.95

The Automann USA Air Spring Rolling Lobe AB1DK25B-8752, available at Wofford Truck Parts, is designed for Ridewell Suspensions Inc and Watson & Chalin applications. This rolling lobe air spring, branded Automann Phoenix, features the Automann Bellows# 1DK25B, and is cross-referenced with Firestone, Goodyear, Contitech, and Triangle bellows. It supports loads of 6760 lbs at 80 PSI and 8450 lbs at 100 PSI, with a natural frequency of 75 CPM. The design height is 10 inches, with a steel bottom plate and top plate dimensions ensuring a secure fit. With a maximum height of 17.70 inches and a minimum height of 5.40 inches, it offers versatile installation options. The air spring ensures smooth and stable ride quality, making it an essential component for maintaining suspension performance. Choose Automann USA for reliability and Wofford Truck Parts for all your heavy-duty needs.

Specifications

Automann’s premier air spring boasts the ability to maintain ride height. Engineered to meet OEM specification while minimizing vibration and load fluctuations. The Air Spring is guaranteed to ensure a smooth ride for driver and cargo alike. Enjoy a quiet and level ride experience with these long lasting Air Springs. Committed to Keeping Trucks Moving

Quality raw material and manufacturer expertise to guarantee performance
Steel Base allows for increased strength and durability
Features OEM dimensioning for hassle-free assembly
Resistant to oil, lubricants, and averse weather conditions
Manufactured to be environmentally friendly and longer lasting
Steel Base
Ridewell, Suspensions Inc, Watson and Chalin

Applications Ridewell Suspensions Inc Watson and Chalin
Type Rolling Lobe
Brand Automann Phoenix
Automann Bellows# 1DK25B
Firestone Bellows# 1T17B-5
Goodyear Bellows# 566-26-3-081
Contitech Bellows# 10 10-15
Triangle Bellows# 6390
Load (Lbs) @80 PSI 6760
Load (Lbs) @100 PSI 8450
Natural Freq. (CPM) 75

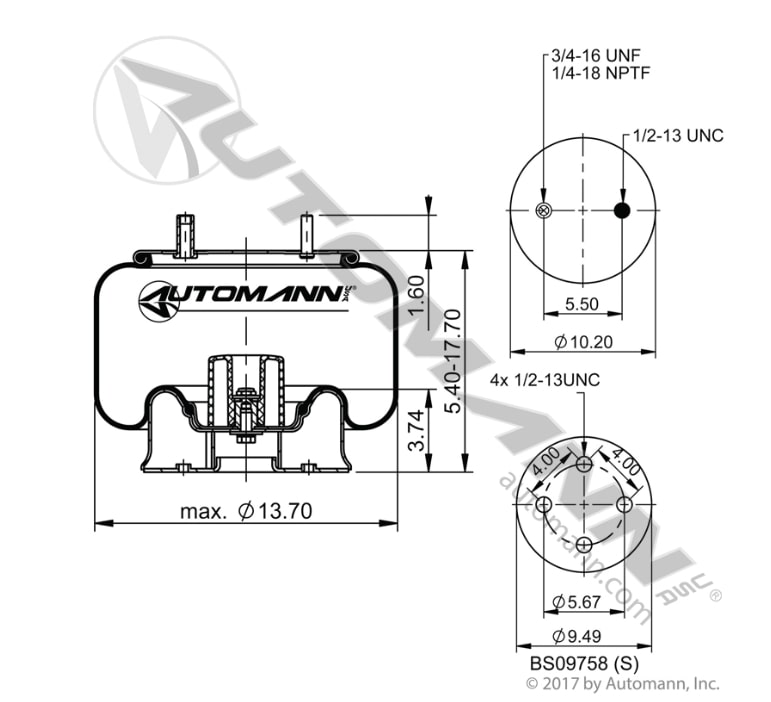

Design Height (In) 10.00
Bottom Plate Type Steel
Top Plate Hole/Stud Qty 2
Top Plate Dia. (A) 10.20
Top Plate C to C Dia. (B) 5.50
Bottom Plate Hole/Stud Qty 4
Bottom Plate Dia. (C) 9.49
Bottom Plate C to C Dia. (D) 5.67"
Bottom Part # BS09578
Bumper Yes
Bracket N/A
Min. Height 5.40
Max. Height 17.70
Max. Dia. 13.70

Weight

20.68 lbs
