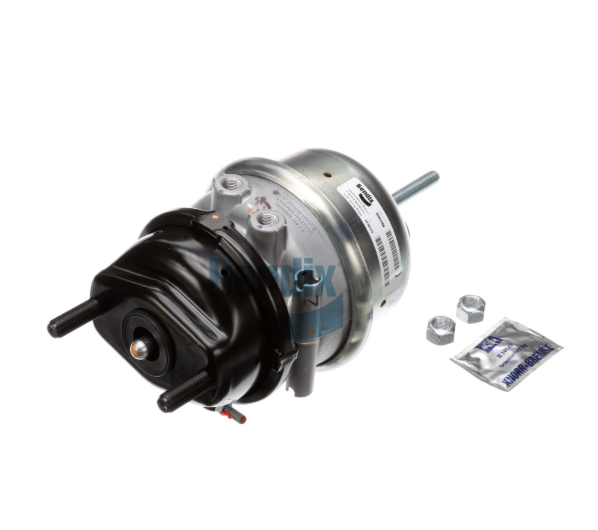

T18/24 Disc Spring Brake Chamber - K065544

BENDIX CVS T18/24 Disc Spring Brake Chamber Part No: K065544

$226.85

The Bendix K065544 spring-brake chamber delivers reliable emergency and park-brake performance in heavy-duty disc-brake systems. Designed for 15.75″ disc brakes (T18/24 size) and a 2.25″ service stroke, it features high-capacity power springs and disc-specific mounting for commercial trucks. Supplied by Wofford Truck Parts, it’s engineered for durability and safety under extreme duty.

Specifications

When braking reliability is critical for heavy-duty trucks equipped with disc-brake systems, the Bendix K065544 T18/24 Disc Spring-Brake Chamber from Wofford Truck Parts stands out as a robust solution. This chamber is specifically sized for 15.75″ disc brakes (T18/24 designation) and delivers a 2.25″ (57.2 mm) stroke for effective service force. It features a power spring for park/emergency function, a double-diaphragm assembly, and a mounting stud pattern of 4.75″ center-to-center with M16 x 1.5 threads and 1.72″ length.

Designed for disc-brake vehicles needing high-output force and reliable retention, this unit supports safe stop-and-stay functionality, especially when a truck is parked or in emergency mode. By installing this chamber, fleets and owner-ops maintain compliance, enhance braking safety, and reduce downtime in demanding applications.

Weight

15.98
