Haldex Brake Systems Air Brake Chamber Part No: SC20LCW
$67.30
Elevate your braking performance with the Air Brake Chamber SC20LCW. This Service Chamber Brake reacts swiftly to brake pedal pressure, facilitating brake activation through outward expansion and pushrod engagement. Trust this Freightliner brake chamber for fast, responsive brake pressure and enhanced safety on the road.
Specifications
Haldex is both an industry pioneer and market leader in air brake actuators. Many of the designs and features you have come to expect are Haldex innovations. Haldex offers a complete family of actuators designed and built to the same high standards. The GoldSeal family includes 13 different sizes ranging from the popular 3030 2.5” stroke to the 1624 2.25” stroke and 3636 3.0” stroke. The only truly sealed double diaphragm spring brake on the Market. Ice melts, rain dries, but corrosion never takes a day off. In time, water, de-icers, oils and other elements eat away at your actuators. LifeSeal+ ® 2.5” and 3.0” stroke models are engineered smart, built strong, and road-tested tough for dependable, durable performance that outlasts ordinary spring brakes.
- Service Chamber with Welded Clevis - Long Stroke - Size T20

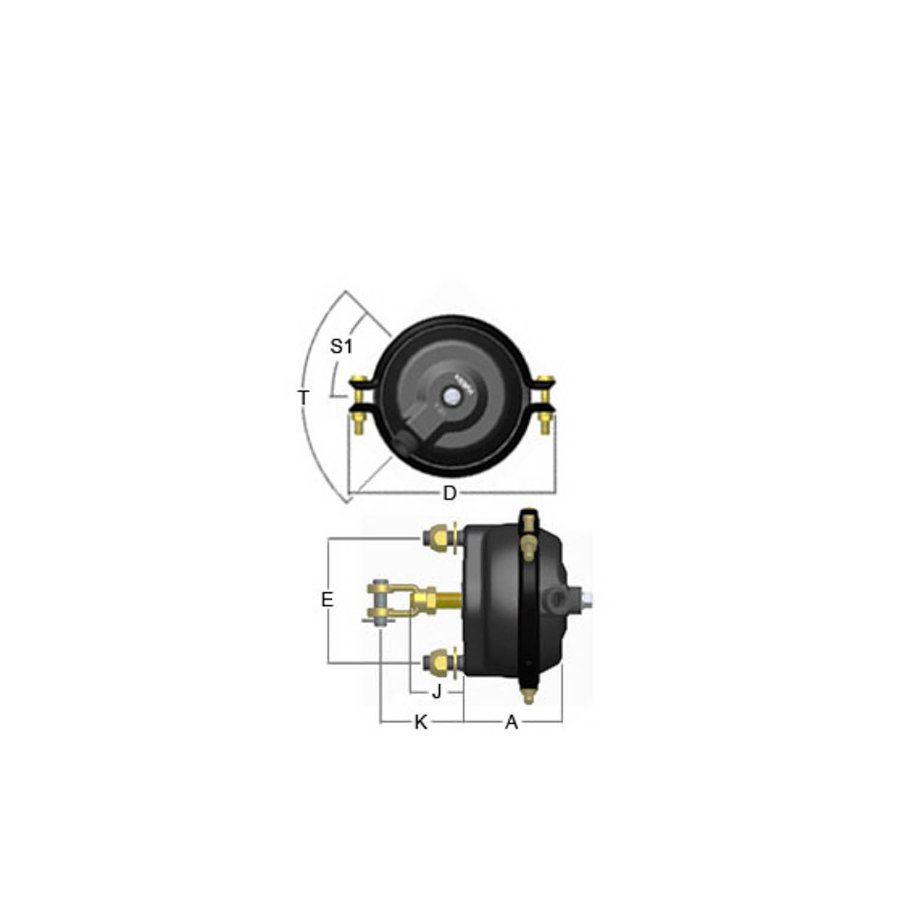

A = Length from mounting bracket to end of Spring Housing
D = Dimension at Service Clampband
E = Stud Spacing: 4.75" (120.7mm) with 5/8-11 UNC studs
J = Pushrod Length from face of Service Housing: 5/8-18 UNF pushrod threads
K = Distance to Clevis Pin centerline from face of Service Housing
S1 = Service Clampband position (0°)
T = Air Port position (90°)
Actuator Type Size 20
Stroke Type Long
Available Stroke 2.50", 64mm
A 4.2", 107mm
D Dimension at Service Clampband
6.8"
173mm
E 4.75", 120.7mm
J 1.00"
K Distance to Clevis Pin centerline from face of Service Housing
2.25"
T 0°
D = Dimension at Service Clampband
E = Stud Spacing: 4.75" (120.7mm) with 5/8-11 UNC studs
J = Pushrod Length from face of Service Housing: 5/8-18 UNF pushrod threads
K = Distance to Clevis Pin centerline from face of Service Housing
S1 = Service Clampband position (0°)
T = Air Port position (90°)
Actuator Type Size 20
Stroke Type Long
Available Stroke 2.50", 64mm
A 4.2", 107mm
D Dimension at Service Clampband
6.8"
173mm
E 4.75", 120.7mm
J 1.00"
K Distance to Clevis Pin centerline from face of Service Housing
2.25"
T 0°
Weight
7.6
Compatibility
Service Chamber with Welded Long Stroke - Size T20
Alternative Part Numbers
- Anchorloc 127200010
- Anchorloc 127200011
- Anchorloc 127200016
- Anchorloc 127200215
- Anchorloc 127200216
- Anchorloc 127200217
- Anchorloc 127200218
- Anchorloc 127200220
- Anchorloc SC20LCW
- Bendix K058311
- Bendix K058715
- Daimler HDX127200215
- Daimler HDX127200216
- Daimler HDX127200217
- Daimler HDX127200218
- Freightliner Trucks HDX127200010
- Freightliner Trucks HDX127200011
- Freightliner Trucks HDX127200215
- Freightliner Trucks HDX127200216
- Freightliner Trucks HDX127200217
- Freightliner Trucks HDX127200218
- Haldex S127200010
- Haldex S127200011
- Haldex S127200215
- Haldex S127200216
- Haldex S127200217
- Haldex S127200218
- Haldex S127200220
- Mack 19QE4133
- MGM Brakes 1621013
- MGM Brakes 1621901
- Navistar 2602424C91
- Navistar 3679383C91
- Navistar 3682304C91
- Navistar S127200010
- Navistar S127200011
- Ryder U55 SC20LCW
- Volvo 24424191
- Volvo 85125543
